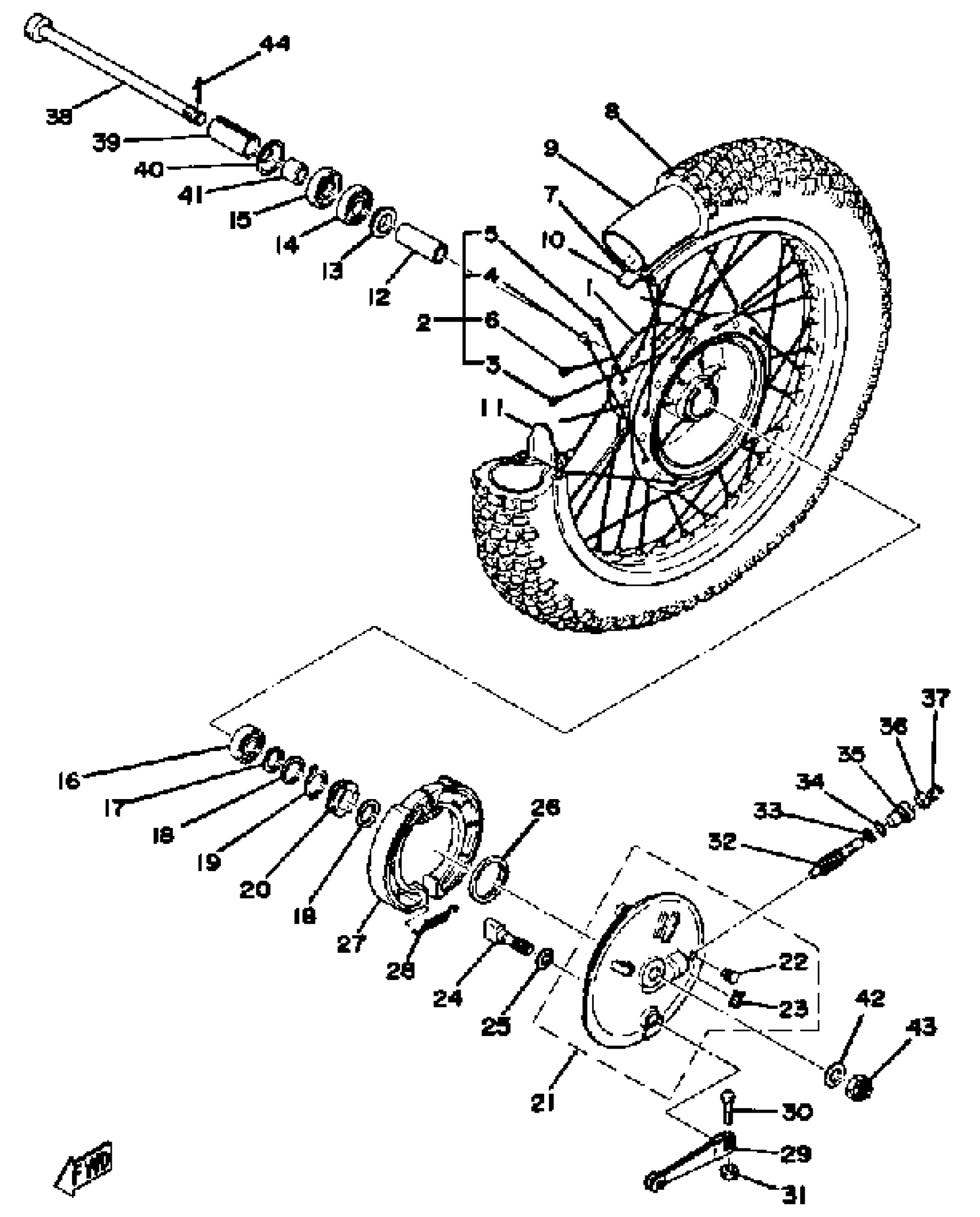

Yamaha DT400B (DT400B) 1975 FRONT WHEEL 250B - C - 400B - C Diagram

#

Description
Price

1

HUB, FRONT

(498-25111-00-00)

Unavailable

2

SPOKE SET, FRONT

(498-25104-00-00)

Unavailable

3

SPOKE SET, INNER 1

(498-25196-90-00)

Unavailable

4

SPOKE SET, OUTER 1

(498-25197-90-00)

Unavailable

5

SPOKE SET, INNER 2

(322-25179-90-00)

Unavailable

6

SPOKE SET, OUTER 2

(322-25189-90-00)

Unavailable

7

RIM 1.60X21

(94416-21133-00)

Unavailable

8

300X21 DUN TRIUNI

(94130-21316-00)

Unavailable

9

TUBE, FRONT (2A6)

94227-21123-00

$47.99

10

BAND, RIM

(94327-21024-00)

Unavailable

11

SPACER, BEAD

1T1-25194-00-00

Unavailable

12

SPACER(1EE)

90560-15293-00

Unavailable

13

FLANGE, SPACER

146-25116-00-00

$8.99

14

BEARING

93306-20205-00

$38.99

14

BRG, R-B (7H4)

93306-20211-00

$25.99

15

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

16

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

Unavailable

17

CIRCLIP(1EY)

99009-22400-00

Unavailable

18

WASHER PLATE 214251470000

90201-22283-00

Unavailable

19

CLUTCH, METER

214-25149-01-00

Unavailable

20

GEAR, DRIVE

308-25135-00-00

Unavailable

21

BRAKE SHOE PLT ASSEMBLY

(498-25120-10-00)

Unavailable

22

GROMMET (397)

90480-10068-00

Unavailable

23

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

24

CAMSHAFT

(214-25151-00-00)

Unavailable

25

WASHER PLATE 341251470000

90201-25286-00

Unavailable

26

OIL SEAL (50X62X7-214)

93105-50010-00

Unavailable

27

BRAKE SHOE SET-2PCS

431-W2536-00-00

Unavailable

28

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

29

LEVER, CAMSHAFT 1

(498-25155-00-00)

Unavailable

30

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

30

BOLT, HEXAGON

97017-06025-00

Unavailable

31

NUT, HEXAGON

95380-06600-00

Unavailable

32

GEAR, METER

308-25138-00-00

Unavailable

33

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

34

O-RING (26H)

93210-14579-00

Unavailable

35

BUSHING

109-25136-00-00

Unavailable

36

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

37

RING, STOP

102-25137-00-00

Unavailable

38

AXLE, WHEEL

275-25181-00-00

Unavailable

39

COLLAR

90387-15117-00

Unavailable

40

COVER, HUB DUST

1R0-25118-00-00

Unavailable

41

COLLAR

90387-157G5-00

Unavailable

42

WASHER, PLAIN

92990-14200-00

Unavailable

43

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

44

PIN, COTTER

91490-30030-00

Unavailable
