FRAME - SIDE COVER 250B - C - 400B - C

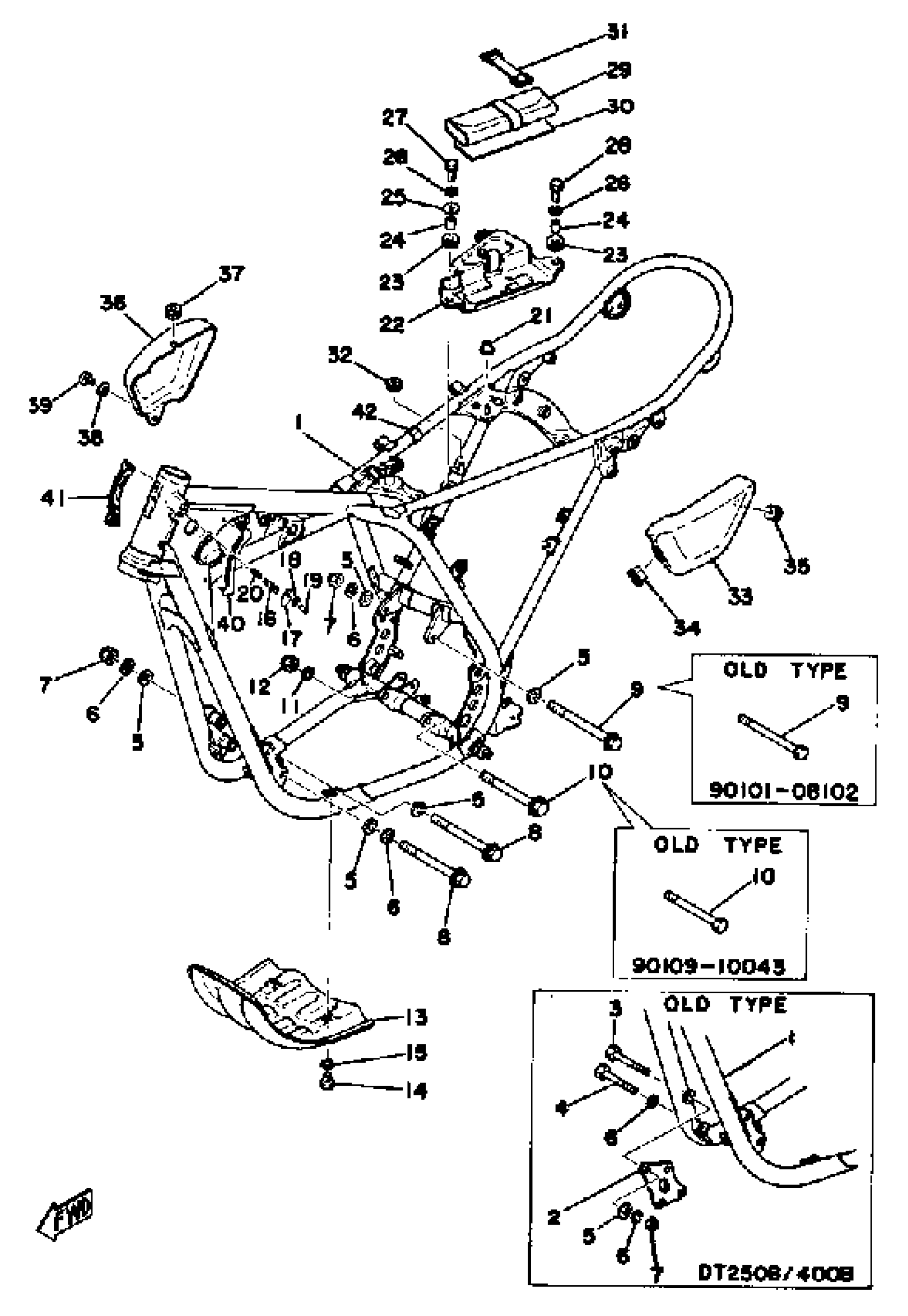

Yamaha DT400B (DT400B) 1975 FRAME - SIDE COVER 250B - C - 400B - C Diagram
#
1
FRAME (AURORA SILVER)
(498-21110-11-33)
Unavailable
1
FRAME
(498-21110-13-33)
Unavailable
2
BRACKET, FRT UPR 2
(438-21416-01-33)
Unavailable
10
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
11
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
12
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
13
PROTECTOR, ENGINE
363-21471-00-00
Unavailable
14
BOLT (661)
97013-06012-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
STEERING LOCK ASSY
341-23408-01-00
Unavailable
17
CAP, HANDLE LOCK
(134-23484-10-00)
Unavailable
18
WASHER, WAVE
90206-04003-00
Unavailable
19
RIVET 214234830000
90269-04003-00
Unavailable
20
SPRING, CONICAL
90502-08005-00
Unavailable
21
DAMPER 1
(395-21638-00-00)
Unavailable
22
BOX, TOOL
(438-21170-01-33)
Unavailable
23
GROMMET 839774310000
90480-14023-00
Unavailable
24
COLLAR 437216330000
90387-07391-00
Unavailable
25
WASHER, PLATE
90201-06380-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
BOLT, HEXAGON
97017-06030-00
Unavailable
28
BOLT, HEXAGON
97017-06025-00
Unavailable
29
TOOL KIT
(214-W2810-10-00)
Unavailable
29
TOOL KIT
2A6-W2810-00-00
Unavailable
30
CLAMP, DAMPER
(438-21755-00-00)
Unavailable
31
BAND, TOOL
21V-21376-00-00
Unavailable
32
GROMMET 214217460000
90480-10091-00
Unavailable
33
COVER, SIDE 1
438-21711-00-00
Unavailable
34
DAMPER, SIDE COVER
437-21717-10-00
Unavailable
35
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
36
COVER, SIDE 2
438-21721-00-00
Unavailable
37
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
38
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
39
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
40
DAMPER, RUBBER 1
(498-21485-00-00)
Unavailable
41
DAMPER 2
(498-21486-00-00)
Unavailable
42
DAMPER, MUFFLER
(276-14747-00-00)
Unavailable
