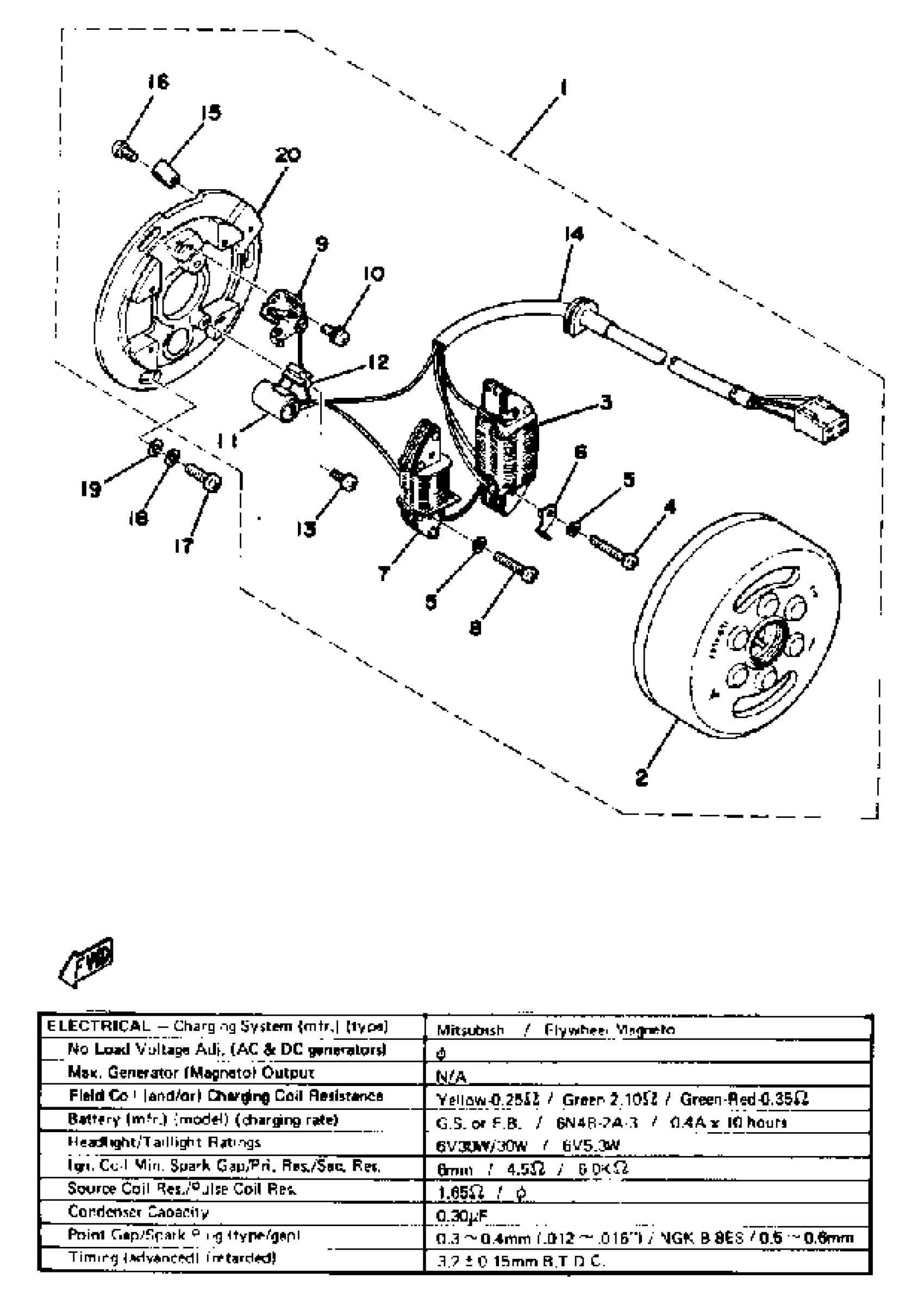

Yamaha DT400B (DT400B) 1975 FLYWHEEL MAGNETO 250B - C Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(438-81300-21-00)

Unavailable

1

FLYWHL MAGNETO ASSEMBLY

(498-81300-21-00)

Unavailable

2

. ROTOR ASSEMBLY

1M1-81350-20-00

Unavailable

3

. COIL, LIGHTING 1 (438-81313-20)

450-81313-20-00

Unavailable

3

. COIL, LIGHTING 1

498-81313-21-00

Unavailable

4

SCREW, PAN

98507-05035-00

$8.49

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

PLATE, TIMING

(438-81332-20-00)

Unavailable

7

. COIL, SOURCE

438-81312-20-00

Unavailable

7

. COIL, SOURCE

498-81312-21-00

Unavailable

8

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

9

CONTACT BREAKER ASSY

1M1-81321-20-00

$114.99

10

SCREW, PAN HEAD

110-81346-21-00

$5.49

11

CONDENSER

654-81325-20-00

$44.99

12

. LUBRICATOR

116-81331-20-00

Unavailable

13

SCREW, PAN HEAD

110-81346-21-00

$5.49

14

LEAD WIRE ASSEMBLY

(438-81315-20-00)

Unavailable

14

LEAD WIRE ASSEMBLY

(498-81315-21-00)

Unavailable

15

CLAMP, LEAD

104-81328-20-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

BASE, MAGNETO

(438-81309-20-00)

Unavailable
