- DT400B (DT400B) 1975
ELECTRICAL 250B - C - 400B - C

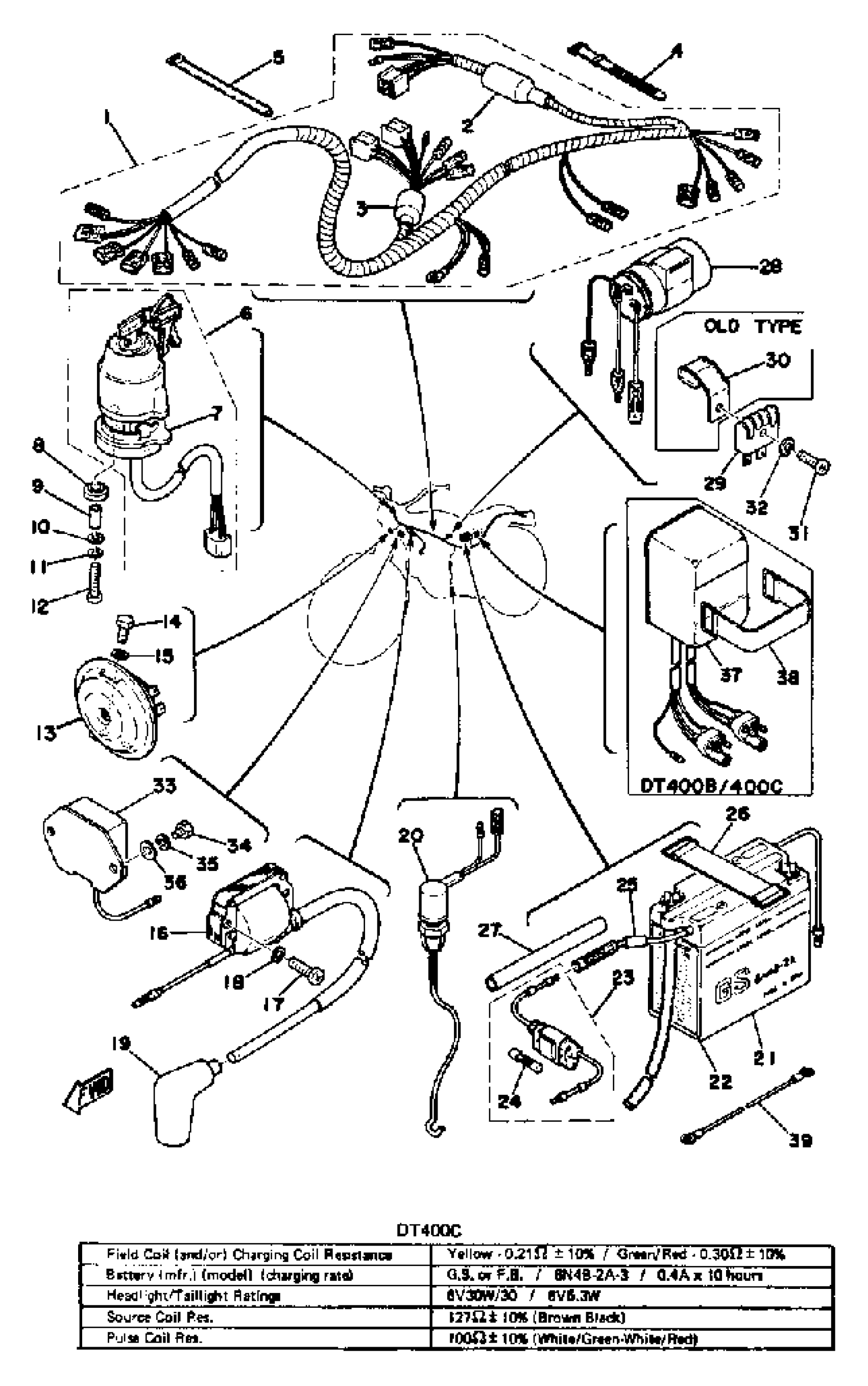

Yamaha DT400B (DT400B) 1975 ELECTRICAL 250B - C - 400B - C Diagram
#
1
WIRE HARNESS ASSEMBLY
(498-82590-20-00)
Unavailable
1
WIRE HARNESS ASSEMBLY
(498-82590-21-00)
Unavailable
1
WIRE HARNESS ASSEMBLY
(498-82590-22-00)
Unavailable
1
WIRE HARNESS ASSEMBLY
(500-82590-20-00)
Unavailable
1
WIRE HARNESS ASSEMBLY
(500-82590-21-00)
Unavailable
1
WIRE HARNESS ASSEMBLY
(500-82590-22-00)
Unavailable
2
COVER, CONNECTER
(307-82599-01-00)
Unavailable
3
COVER, CONNECTER
(498-82599-00-00)
Unavailable
5
BAND
341-26397-01-00
Unavailable
6
MAIN SWITCH ASSEMBLY
443-82508-21-00
Unavailable
7
. DAMPER, MAIN SWITCH
437-82555-00-00
Unavailable
8
DAMPER, STOPPER
1M1-82556-00-00
Unavailable
9
COLLAR, MAIN SWITCH
437-82516-00-00
Unavailable
10
. WASHER, PLAIN
92990-05200-00
Unavailable
11
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
12
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
13
HORN
437-83371-13-00
Unavailable
14
BOLT (661)
97013-06012-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
IGNITION COIL ASSEMBLY
498-82310-40-00
Unavailable
16
IGNITION COIL ASSY
355-82310-40-00
Unavailable
17
SCREW PAN HEAD
98580-06020-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
PLUG CAP ASSY
56J-82370-00-00
Unavailable
20
STOP SWITCH ASSY
438-82530-09-00
Unavailable
21
6N4B2A3 YUASA BATTERY
6N4-B2A3Y-00-00
Unavailable
22
LABEL, BATTERY
40A-82141-G0-00
Unavailable
23
FUSE HOLDER ASSY
55K-82150-02-00
Unavailable
24
FUSE
1A0-82151-00-00
Unavailable
25
HOSE
(90446-07093-00)
Unavailable
26
BAND, BATTERY
26L-82131-00-00
Unavailable
27
HOSE
(90446-09100-00)
Unavailable
28
FLASHER RELAY ASSEMBLY
438-83350-62-00
Unavailable
29
RECTIFIER ASSY
353-81970-M2-00
Unavailable
30
CLAMP
90465-06013-00
Unavailable
31
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
32
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
33
VOLTAGE REG ASY
443-81910-62-00
Unavailable
34
BOLT (661)
97013-06012-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
WASHER, PLAIN (646)
92990-06600-00
Unavailable
37
CDI UNIT ASSEMBLY
445-85540-22-00
Unavailable
38
BAND, BATTERY
26L-82131-00-00
Unavailable
39
WIRE, MINUS LEAD
(498-82116-00-00)
Unavailable
