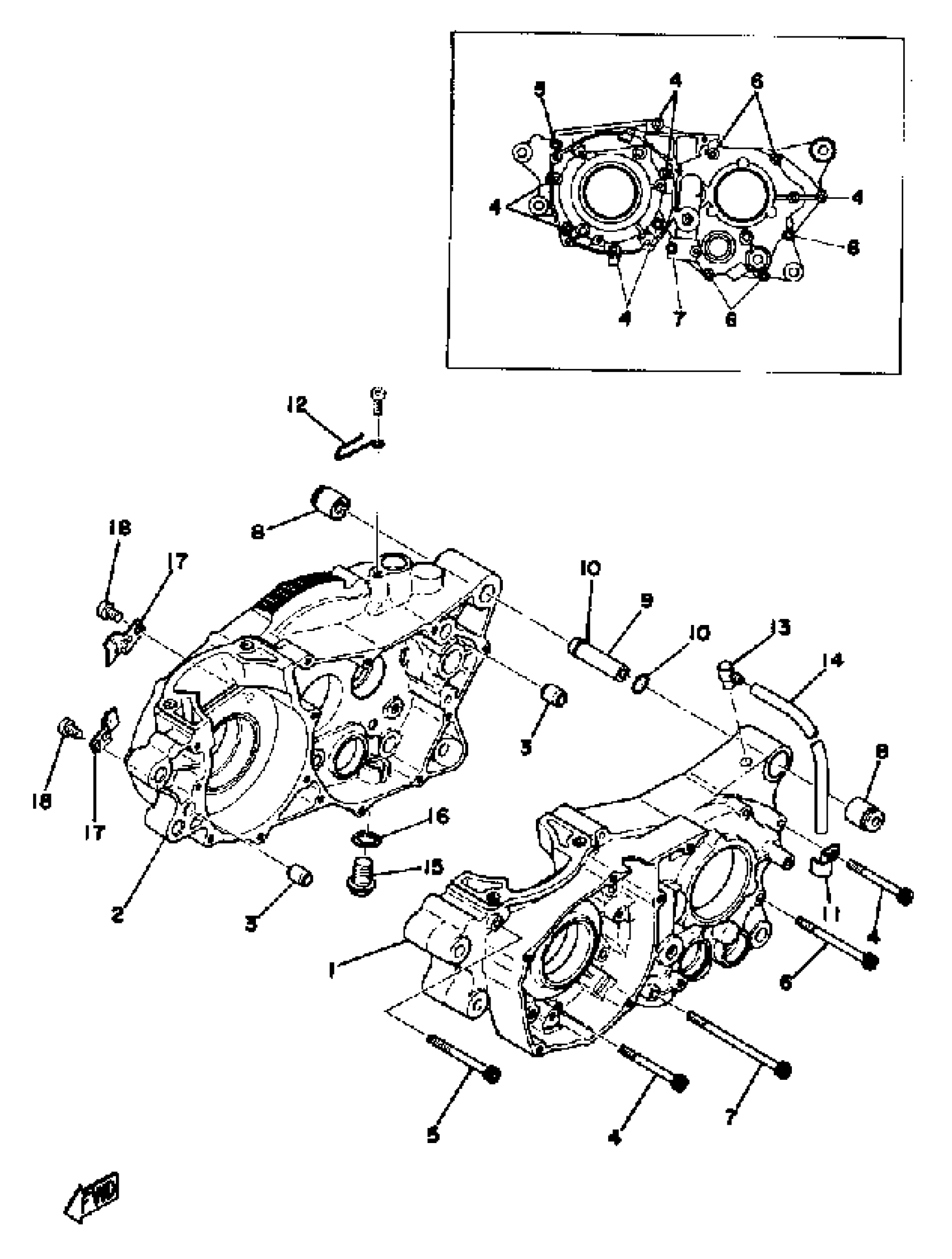

Yamaha DT400B (DT400B) 1975 CRANKCASE 250B - C - 400B - C Diagram

#

Description
Price

1

CRANKCASE 1

(498-15111-01-00)

Unavailable

1

CRANKCASE 1

(500-15111-00-00)

Unavailable

2

CRANKCASE 2

(498-15121-01-00)

Unavailable

2

NO LONGER AVAILABLE

500-15121-00-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06060-00

$3.76

5

BOLT, SOCKET

91317-06065-00

$3.76

6

BOLT, SOCKET

91317-06075-00

$5.60

7

BOLT

91316-06100-00

Unavailable

8

DAMPER

90388-08003-00

$17.99

9

SPACER, ENGINE MOUNT

438-15317-00-00

Unavailable

10

O-RING (P95)

93210-11073-00

$7.49

11

CLAMP 363154850100

90462-05005-00

Unavailable

12

CLAMP

90465-20035-00

Unavailable

13

BREATHER

583-15371-00-00

$6.99

14

HOSE (L1050)

90445-072G8-00

Unavailable

15

BOLT

90109-14385-00

Unavailable

16

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

17

HOLDER

434-15118-00-00

Unavailable

18

SCREW,PAN HEAD

98580-08012-00

Unavailable
