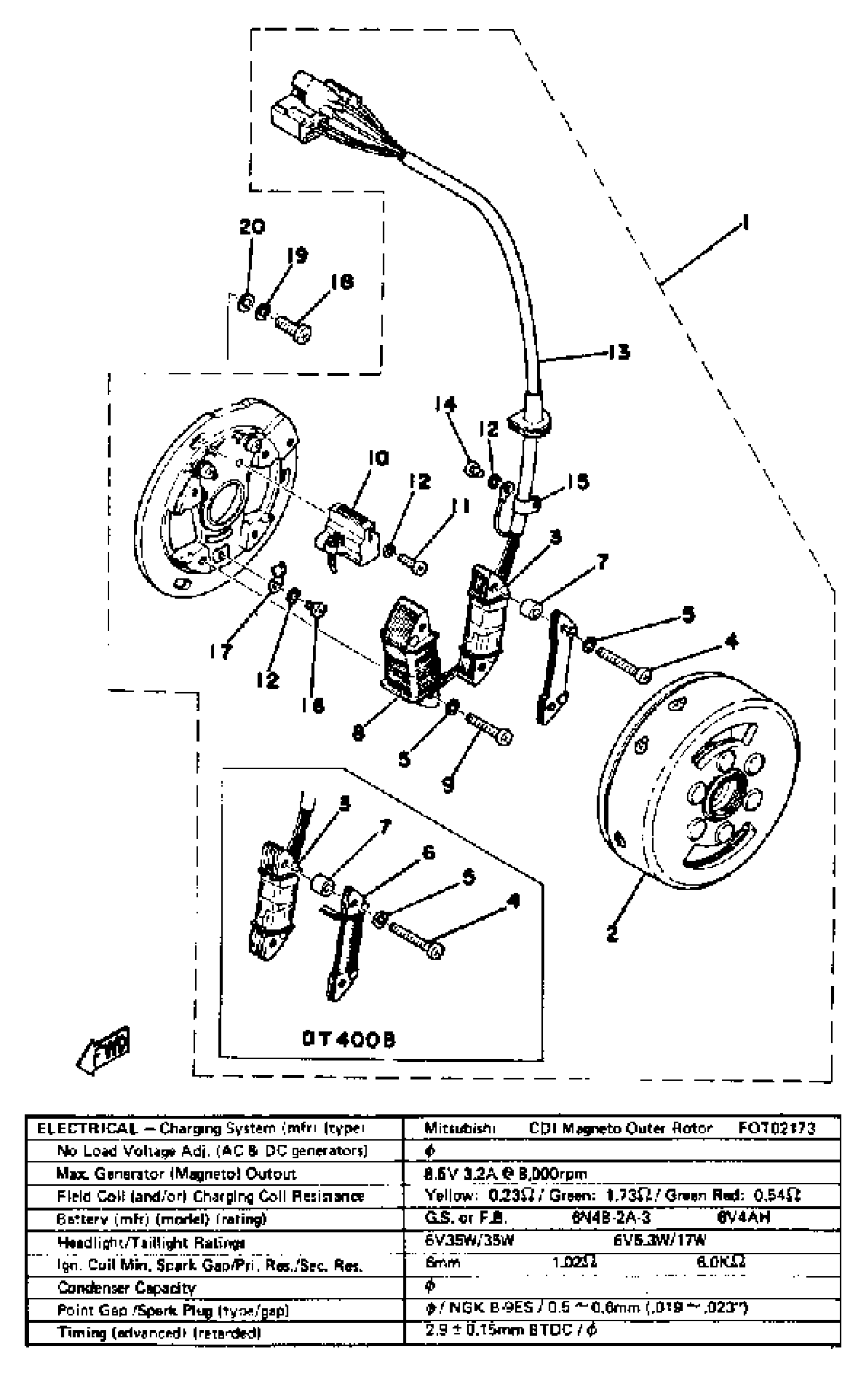

Yamaha DT400B (DT400B) 1975 C - D - I - MAGNETO 400B - C Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(500-85500-20-00)

Unavailable

1

CDI MAGNETO ASSEMBLY

(500-85500-22-00)

Unavailable

2

ROTOR ASSEMBLY

(500-85550-20-00)

Unavailable

3

. COIL SOURCE 2

445-85512-20-00

Unavailable

4

SCREW, PAN

98507-05035-00

$8.49

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

COIL, LIGHTING 2

(445-85518-20-00)

Unavailable

7

SPACER

(445-85519-20-00)

Unavailable

8

. COIL, LIGHTING 1 (500-85517-20)

500-85513-20-00

Unavailable

9

SCREW, PAN

98507-05035-00

$8.49

10

. COIL, PULSER

445-85580-21-00

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

LEAD WIRE ASSEMBLY

(445-85515-20-00)

Unavailable

13

LEAD WIRE ASSEMBLY

(500-85515-20-00)

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

15

CLAMP, READ

445-81328-20-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

CLAMP, LEAD

(445-85528-20-00)

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
