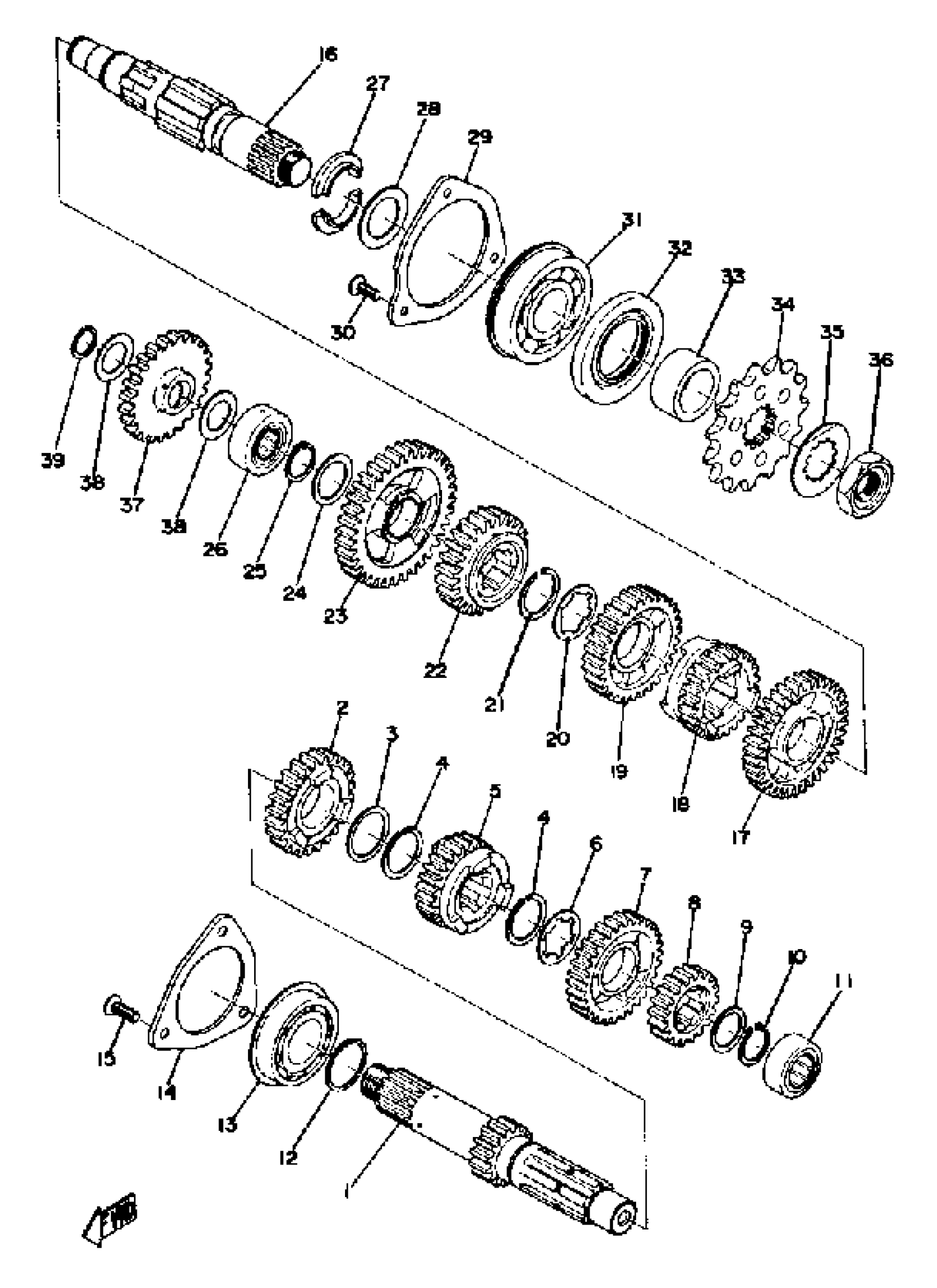

Yamaha DT360A (DT360A) 1974 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (15T)

438-17411-00-00

Unavailable

1

AXLE, MAIN (15T)

445-17411-00-00

Unavailable

2

GEAR, 4TH PINION (26T)

438-17141-00-00

Unavailable

3

WASHER PLATE 152172260000

90201-25490-00

$10.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION (23T)

438-17131-01-00

Unavailable

6

WASHER 434172160000

90209-22082-00

Unavailable

7

GEAR, 5TH PINION (30T)

438-17151-00-00

Unavailable

8

GEAR, 2ND PINION (19T)

438-17121-00-00

Unavailable

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

CIRCLIP(1EY)

99009-19400-00

$8.49

11

BEARING

93311-42077-00

$55.99

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

BRG,R-B 4205 52MM 185G KY

93304-20501-00

$96.99

13

BEARING (93306-20515)

93306-20535-00

Unavailable

14

PLATE,BRNG COVER

363-15383-00-00

Unavailable

14

PLATE, BEARING COVER

445-15383-00-00

Unavailable

15

SCREW, PAN

98507-06014-00

Unavailable

15

SCREW, FLAT

98707-06014-00

Unavailable

16

AXLE, DRIVE

438-17421-01-00

Unavailable

16

AXLE, DRIVE

445-17421-00-00

Unavailable

17

. GEAR, 2ND WHEEL (34T)

214-17221-10-00

Unavailable

18

GEAR, 5TH WHEEL (23T)

438-17251-00-00

Unavailable

19

GEAR, 3RD WHEEL (30T)

438-17231-00-00

Unavailable

20

WASHER 434172160000

90209-22082-00

Unavailable

21

CIRCLIP (4L0)

93440-25084-00

$5.60

22

GEAR, 4TH WHEEL (26T)

438-17241-00-00

Unavailable

23

. GEAR, 1ST WHEEL (38T)

214-17211-10-00

Unavailable

24

WASHER PLATE 168171160000

90201-20278-00

Unavailable

25

CIRCLIP(1EY)

99009-19400-00

$8.49

26

BEARING

93313-31709-00

Unavailable

26

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

Unavailable

27

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

29

PLATE, BEARING COVER

363-15381-00-00

Unavailable

30

SCREW, FLAT

98707-05012-00

Unavailable

31

. BEARING, CYLINDER #90

93390-00012-00

Unavailable

32

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

33

COLLAR

90387-25193-00

Unavailable

34

SPROCKET, DRIVE (13T)

9383E-13216-00

Unavailable

34

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

34

SPROCKET, DRIVE

4DN-17460-00-00

Unavailable

34

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

Unavailable

35

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

36

NUT 152174630000

90179-18020-00

Unavailable

37

GEAR, KICK IDLE (23T)

275-15651-00-00

Unavailable

37

GEAR, KICK IDLE (23T)

363-15651-00-00

Unavailable

38

SHIM, MAIN AXLE (1.0)

164-17417-00-10

Unavailable

38

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

39

CIRCLIP(1AR)

99009-15400-00

Unavailable

39

CIRCLIP(1EY)

99009-17400-00

Unavailable
