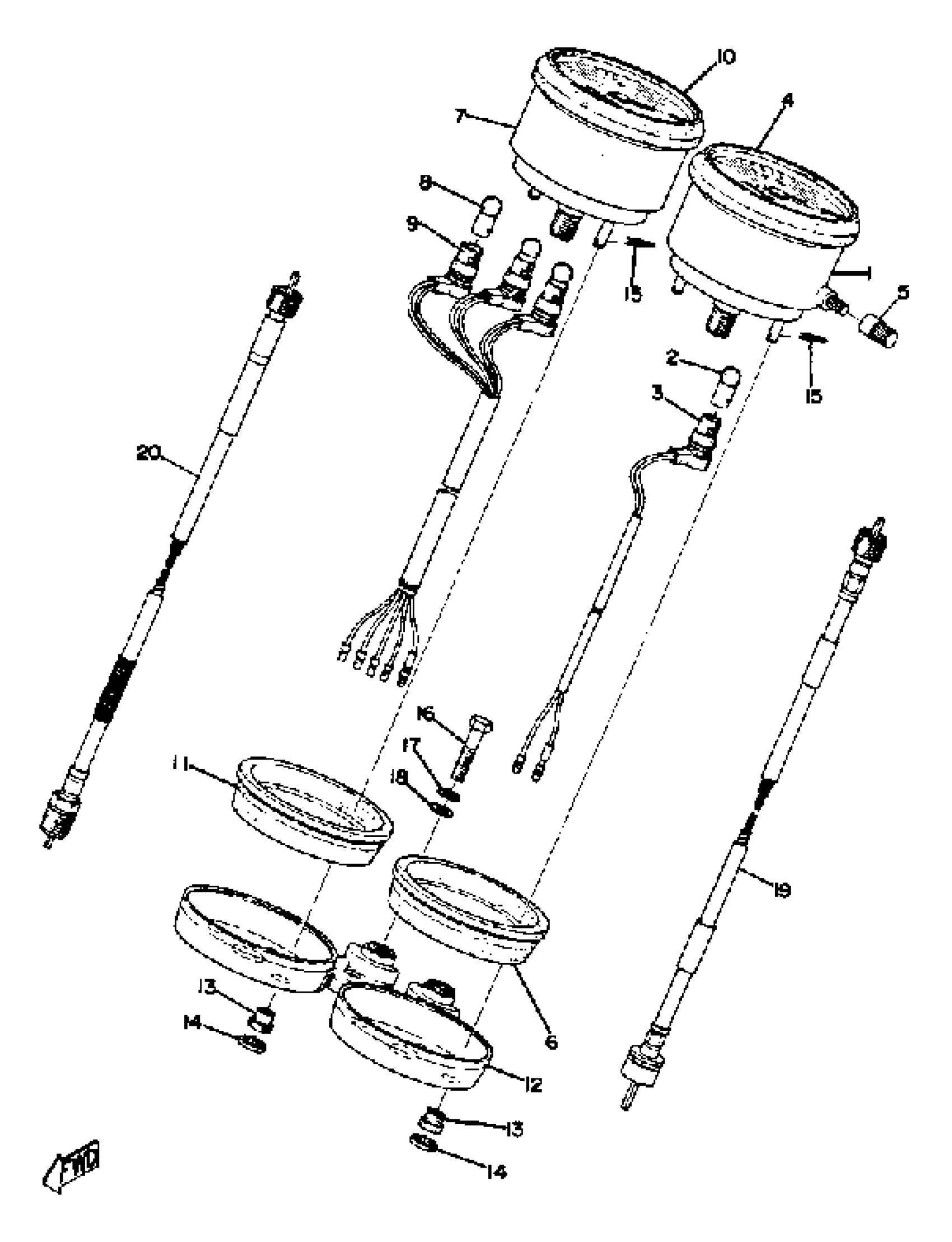

Yamaha DT360A (DT360A) 1974 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

438-83570-31-00

Unavailable

2

BULB,(6V3W)

122-83516-10-00

Unavailable

3

SOCKET, METER

438-83536-30-00

Unavailable

4

DAMPER, METER

437-83513-00-00

Unavailable

5

KNOB, TRIP METER

308-83578-30-00

Unavailable

6

DAMPER, METER

438-83526-00-00

Unavailable

7

TACHOMETER ASSEMBLY

438-83540-02-00

Unavailable

8

BULB,(6V3W)

122-83516-10-00

Unavailable

9

SOCKET CORD ASSEMBLY

438-83520-30-00

Unavailable

10

DAMPER, METER

437-83513-00-00

Unavailable

11

DAMPER, TACHOMETER

438-83592-00-00

Unavailable

12

BRACKET, METER

438-83519-02-98

Unavailable

13

DAMPER

437-83523-00-00

Unavailable

14

WASHER, SPECIAL

437-83524-00-00

Unavailable

15

CLIP (156-83525-00)

90468-10050-00

$3.05

16

BOLT(JF7)

97080-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

Unavailable

20

TACHOMETER CABLE

438-83560-01-00

Unavailable
