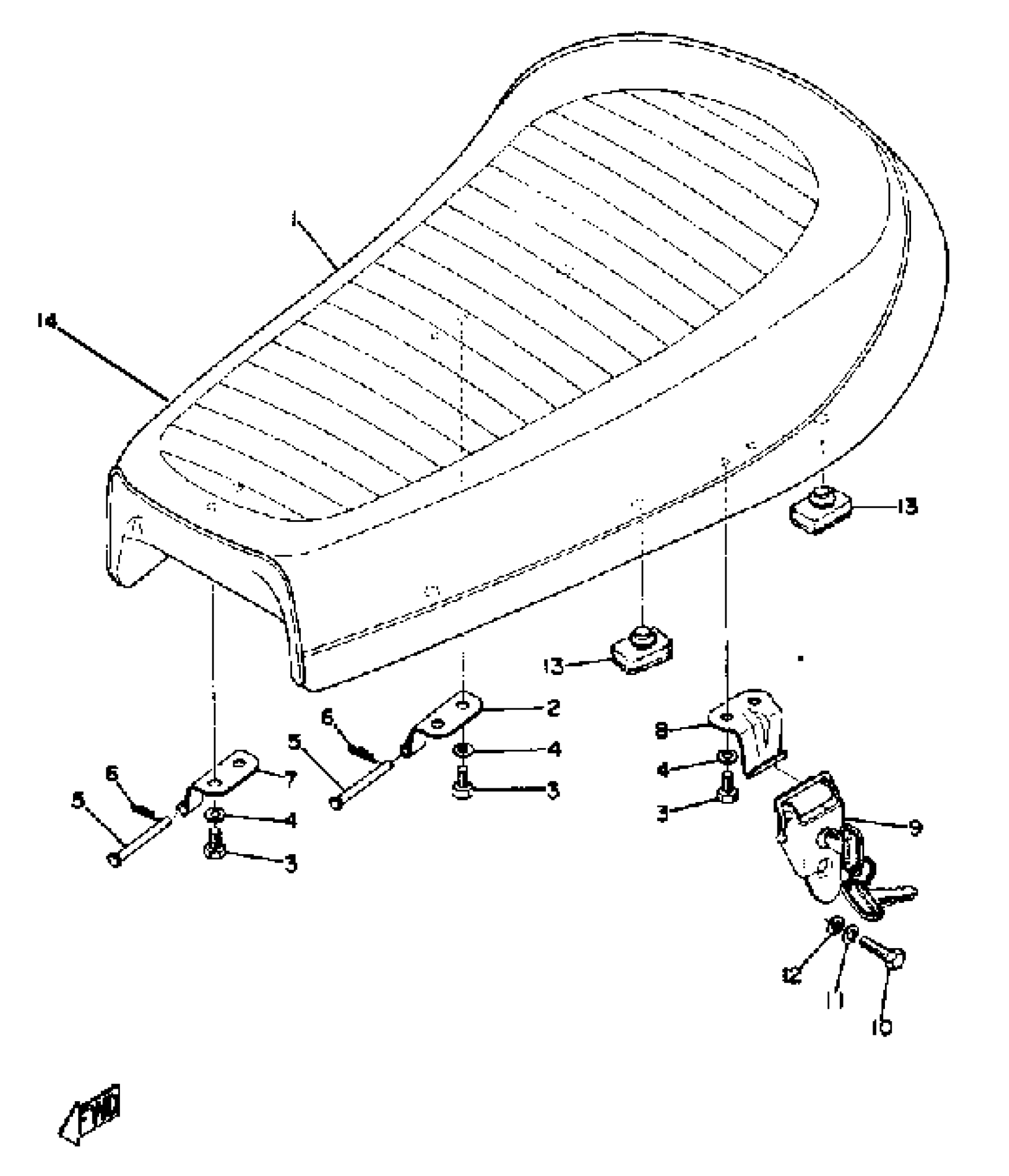

Yamaha DT360A (DT360A) 1974 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

498-24710-01-00

Unavailable

2

HINGE, SEAT

437-24726-00-00

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, SPRING

92995-06100-00

Unavailable

5

PIN, CLEVIS

91701-05055-00

$7.49

6

CLIP (156-83525-00)

90468-10050-00

$3.05

7

HINGE, SEAT

248-24726-00-33

Unavailable

8

BRACKET, SEAT

214-24728-00-33

Unavailable

9

SEAT LEVER ASSY

1K8-24705-00-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

DAMPER, SEAT

214-24724-00-00

$7.99

14

COVER,SINGLE SEAT

498-24711-01-00

Unavailable
