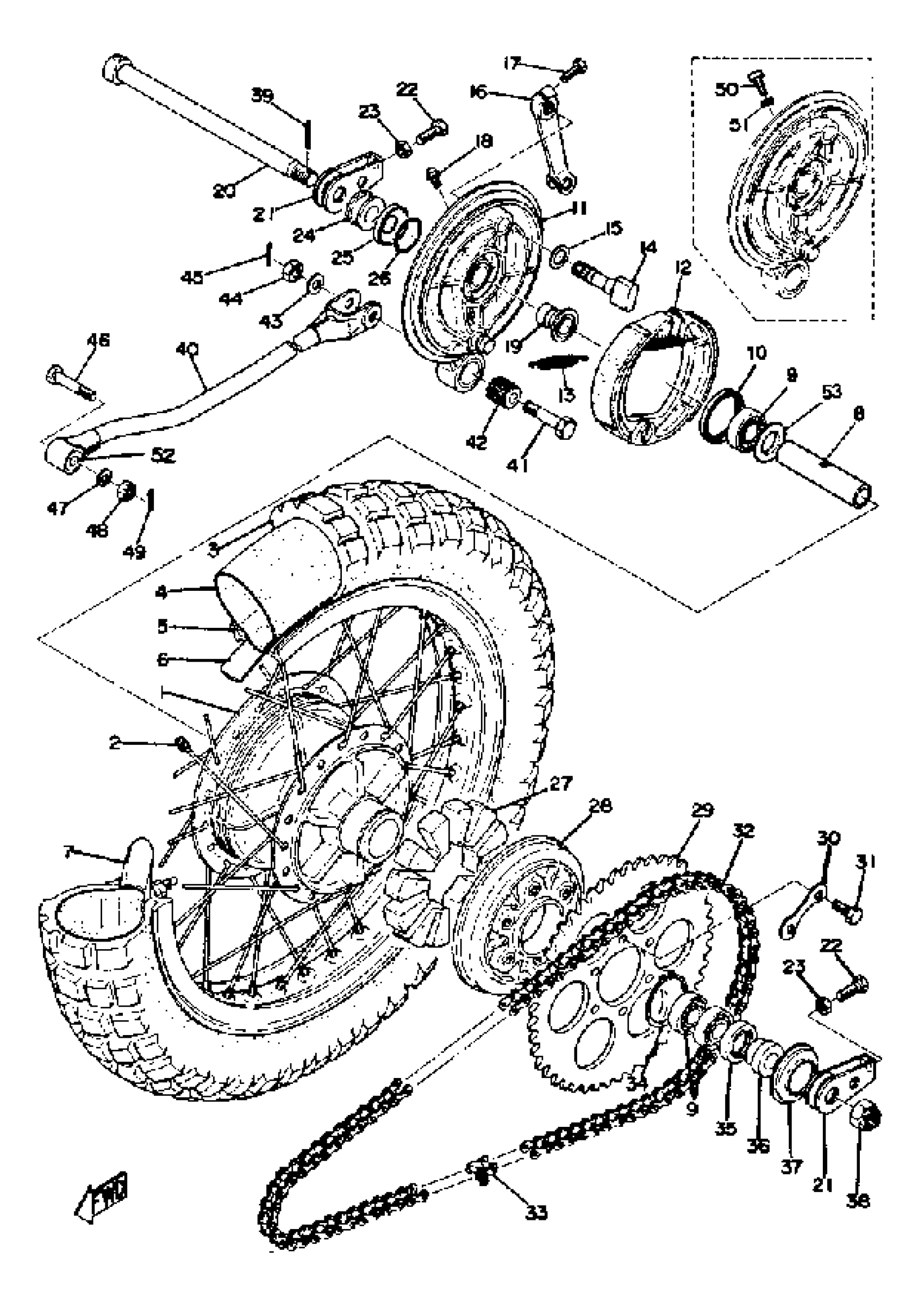

Yamaha DT360A (DT360A) 1974 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

438-25311-00-00

Unavailable

2

SPOKE SET, REAR

438-25304-00-00

Unavailable

3

TIRE 400X18 DUN TRI UNI

94140-18317-00

Unavailable

4

TUBE (5A8)

94212-18188-00

$35.99

5

RIM 1.85X18 (1.85B-18)

94418-18051-00

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER, BEAD

1T2-25394-00-00

Unavailable

8

SPACER

90560-17311-00

Unavailable

9

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

10

OIL SEAL, SO-TYPE

93104-46029-00

Unavailable

11

PLATE, BRAKE SHOE

438-25320-10-00

Unavailable

12

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

13

SPRING, TENSION 2462533300

90507-20002-00

$8.49

14

CAMSHAFT

214-25351-01-00

Unavailable

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

NIPPLE, GREASE

93700-06M03-00

Unavailable

19

BUSHING, SHAFT

90387-17450-00

Unavailable

20

AXLE,WHEEL

150-25381-01-00

Unavailable

21

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

22

BOLT

90101-08060-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

COLLAR(3SX)

90387-170X9-00

Unavailable

25

COVER, PLATE

275-25327-00-00

Unavailable

26

O-RING

93210-31MJ5-00

Unavailable

27

DAMPER

275-25364-00-00

Unavailable

28

CLUTCH, HUB

275-25366-00-00

Unavailable

29

SPROCKET, DRIVN 43T

214-25443-10-33

Unavailable

29

SPROCKET, DRIVN 44T

214-25444-10-33

Unavailable

29

SPROCKET, DRIVN 45T

214-25445-10-33

Unavailable

29

SPROCKET, DRIVN 47T

214-25447-10-00

Unavailable

29

SPROCKET, DRIVN 47T

214-25447-10-00

Unavailable

29

SPROCKET,DRIVN 48T

214-25448-10-33

Unavailable

30

WASHER, LOCK

22W-25412-00-00

Unavailable

31

BOLT, FITTING

90109-08377-00

Unavailable

32

CHAIN 520DS-104L

9Y585-20103-00

Unavailable

33

. JOINT CHAIN

94680-11001-00

Unavailable

34

CIRCLIP (8L9)

93410-52061-00

Unavailable

35

OIL SEAL, DD-TYPE (DD-25-40-9)

93106-25003-00

Unavailable

36

COLLAR, SHAFT

90387-17140-00

Unavailable

37

COVER, DUST

275-25367-00-00

Unavailable

38

NUT, CASTLE

90171-16007-00

Unavailable

39

PIN, COTTER

91490-30030-00

Unavailable

40

BAR, TENSION

363-25371-00-00

Unavailable

41

BOLT, TENSION BAR

90102-10007-00

Unavailable

42

BUSHING

275-22123-00-00

Unavailable

43

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

44

NUT (682)

95380-10700-00

Unavailable

45

PIN, COTTER

91490-25020-00

Unavailable

46

BOLT, TENSION BAR

90102-08019-00

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

NUT, SLOTTED

95307-08900-00

Unavailable

49

PIN, COTTER

91490-20025-00

Unavailable

50

SCREW PAN HEAD

98580-06020-00

Unavailable

51

WASHER, SPRING

92995-06100-00

Unavailable

52

BUSHING

363-22123-00-00

Unavailable

53

FLANGE, SPACER

146-25315-00-00

Unavailable
