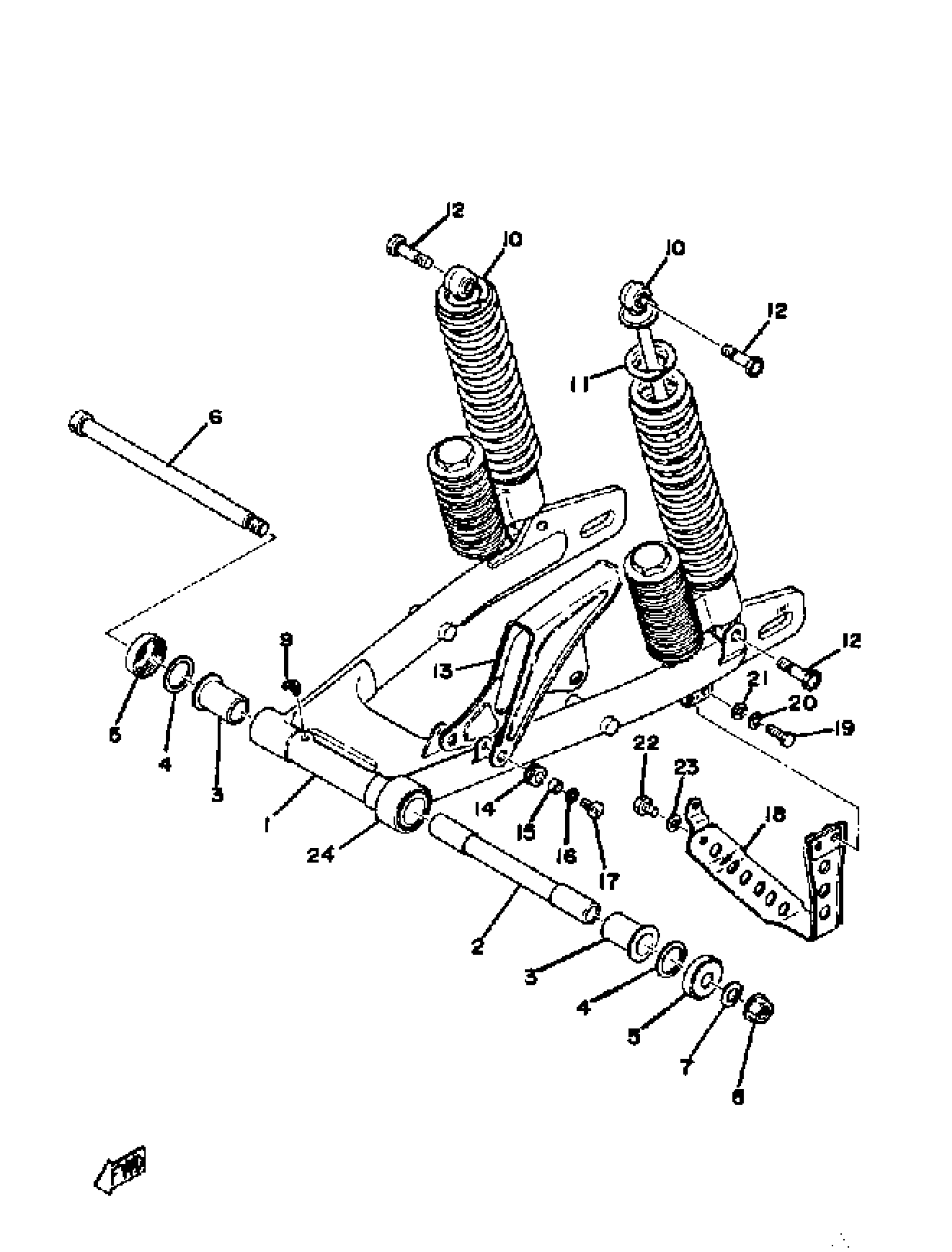

Yamaha DT360A (DT360A) 1974 REAR ARM CUSHION CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(438-22110-01-33)

Unavailable

1

COVER

(559-22211-00-00)

Unavailable

2

COLLAR (322-22124-00)

90387-16398-00

Unavailable

3

BUSH

3Y1-22184-01-00

$38.99

4

SHIM,REAR ARM

240-22127-00-00

$6.99

5

COVER, THRUST

322-22128-01-00

$35.99

6

SHAFT, PIVOT

275-22141-00-00

Unavailable

7

WASHER(6TC)

92907-14100-00

$7.49

8

NUT, SPEC''L SHAPE (363-22143-00)

90179-14163-00

Unavailable

9

NIPPLE, GREASE

93700-06005-00

$12.49

10

SHK/ABS ASSEMBLY, REAR

(99999-01336-00)

Unavailable

11

SEAT, SPRING UPPER

(322-22213-20-00)

Unavailable

12

BOLT

90109-10195-00

Unavailable

13

CASE, CHAIN

(438-22311-02-33)

Unavailable

14

GROMMET (141-82596-00)

90480-12096-00

Unavailable

15

SPACER

90560-05001-00

Unavailable

16

WASHER, PLATE

90201-06M08-00

Unavailable

17

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

18

GUARD, CHAIN

(438-22318-00-33)

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

BOLT(8X2)

90101-08344-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

SEAL, GUARD

438-22151-00-00

Unavailable
