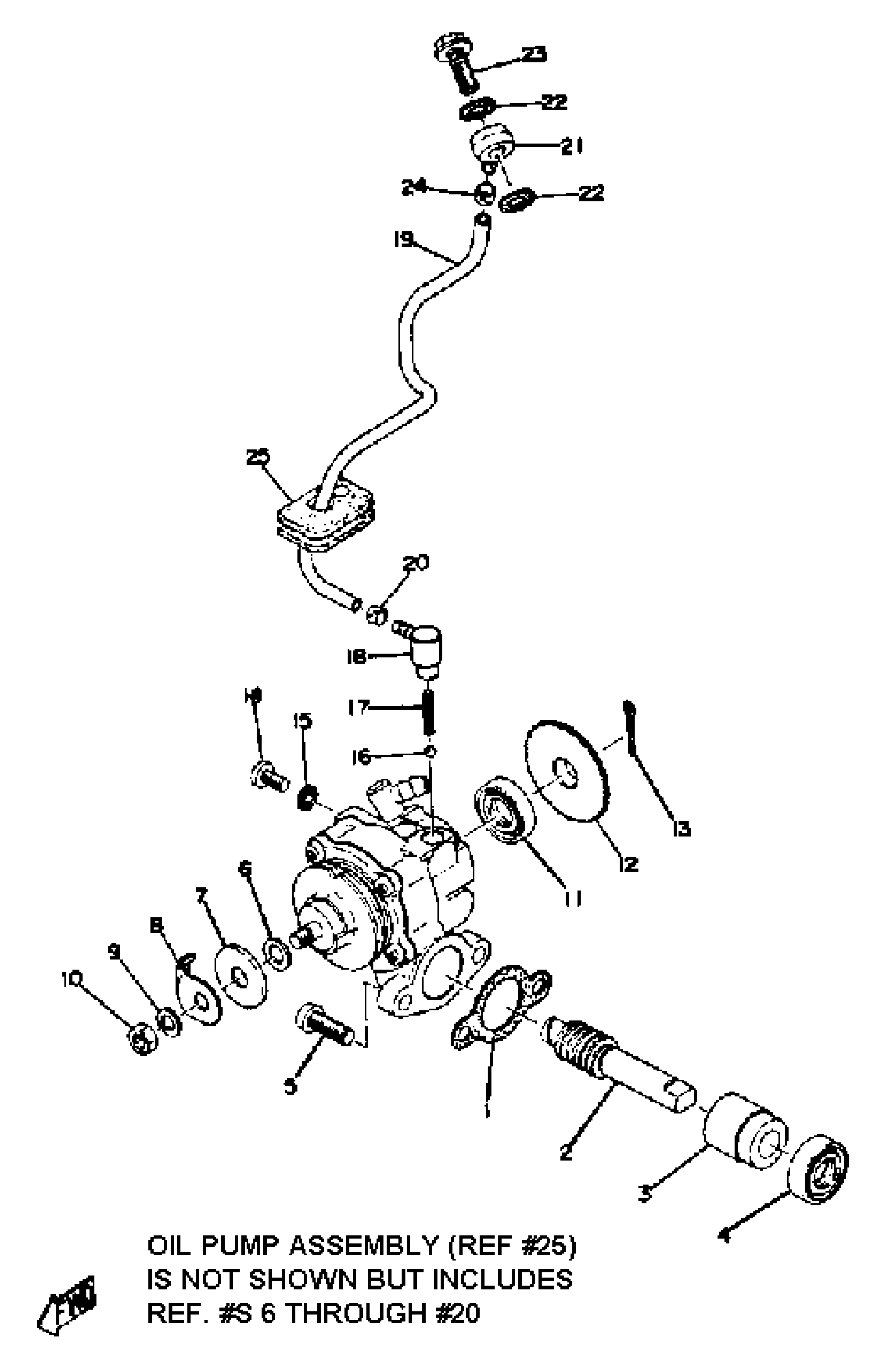

Yamaha DT360A (DT360A) 1974 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

363-13175-00-00

Unavailable

2

SHAFT, WORM

364-13175-00-00

Unavailable

3

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

4

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

5

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

6

SHIM,PLUNGER

137-13137-00-03

$5.49

6

SHIM,PLUNGER

137-13137-00-05

$6.99

6

SHIM,PLUNGER

137-13137-00-10

$7.99

7

PLATE, ADJUSTING

137-13138-01-00

Unavailable

8

COVER

402-13146-00-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

OIL SEAL (J10)

93101-10090-00

$8.49

12

. PLATE, STARTER

137-13128-00-00

Unavailable

13

. PIN, COTTER

91401-12018-00

Unavailable

14

SCREW, BIND

98980-04008-00

Unavailable

15

GASKET 137131870000

90430-04004-00

Unavailable

16

BALL

93505-32002-00

Unavailable

17

SPRING (278-13169-00)

90501-02018-00

Unavailable

18

NOZZLE

353-13552-01-00

Unavailable

19

HOSE (L200)

90445-05N13-00

Unavailable

20

CLIP (214-13164-00)

90468-02033-00

Unavailable

21

GASKET(3FP)

90430-06224-00

Unavailable

22

GASKET(3FP)

90430-06224-00

Unavailable

23

BOLT, BANJO

90401-02033-00

Unavailable

24

CLIP (214-13164-00)

90468-02033-00

Unavailable

25

HOLDER, OIL PIPE

363-13174-00-00

Unavailable

26

OIL PUMP ASSEMBLY

498-13101-01-00

Unavailable

26

OIL PUMP ASSEMBLY

500-13101-01-00

Unavailable
