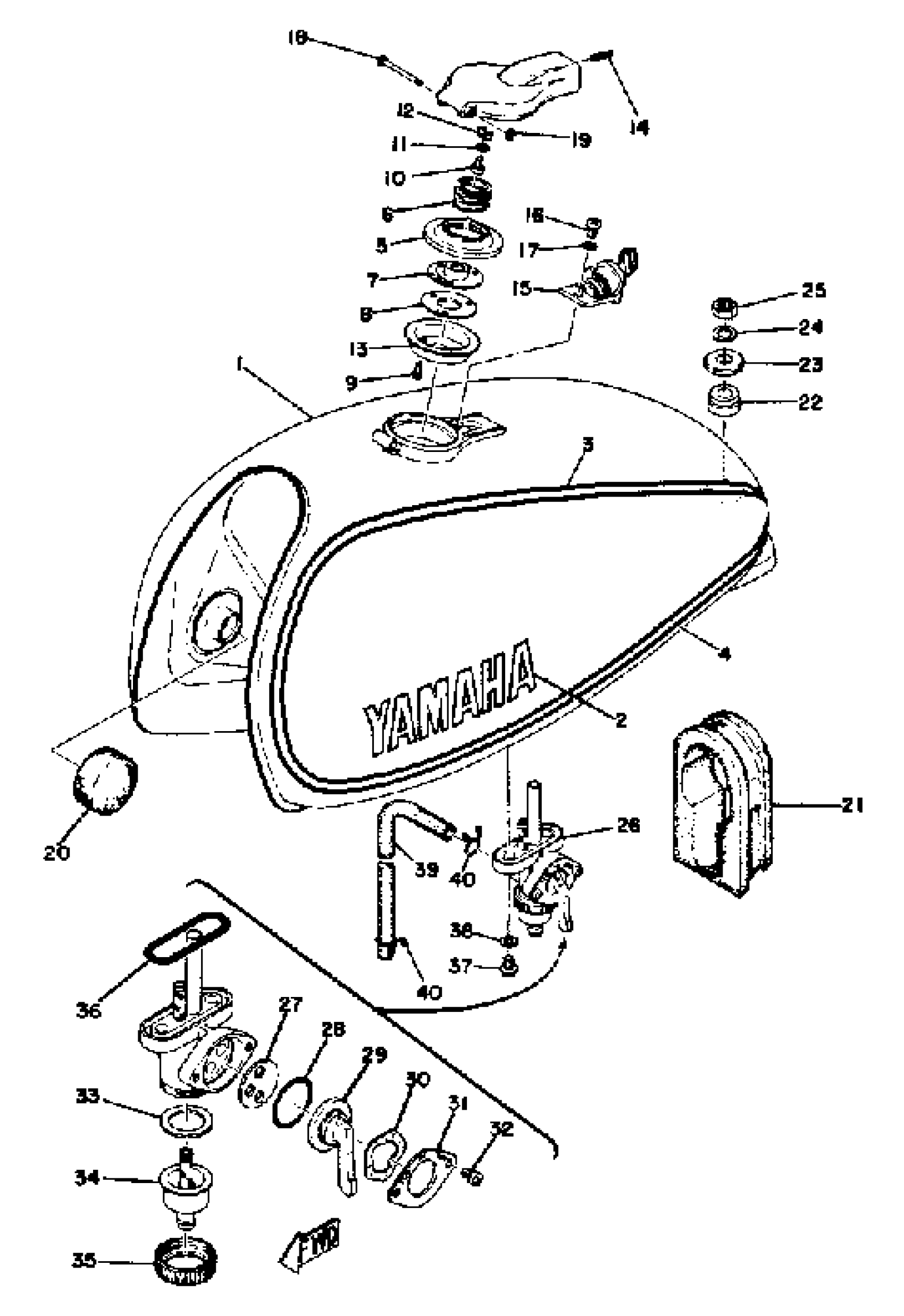

Yamaha DT360A (DT360A) 1974 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(498-24110-00-01)

Unavailable

1

FUEL TANK (NEW WHITE)

(498-24110-00-07)

Unavailable

1

FUEL TANK

(498-24110-00-08)

Unavailable

2

GRAPHIC, FUEL TANK 1

(498-24244-00-00)

Unavailable

2

GRAPHIC, FUEL TANK 1

(498-24244-01-00)

Unavailable

2

GRAPHIC, FUEL TANK 4

(498-24247-00-00)

Unavailable

2

GRAPHIC, FUEL TANK 4

(498-24247-01-00)

Unavailable

3

. UNAVAILABLE IN PRICE BOOK

498-24243-00-00

Unavailable

3

GRAPHIC, FUEL TANK 2

(498-24245-00-00)

Unavailable

3

GRAPHIC, FUEL TANK 2

(498-24245-01-00)

Unavailable

3

GRAPHIC, FUEL TANK 5

(498-24248-01-00)

Unavailable

3

GRAPHIC, FUEL TANK 2

(500-24245-00-00)

Unavailable

3

GRAPHIC, FUEL TANK 2

(500-24245-01-00)

Unavailable

3

GRAPHIC, FUEL TANK 5

(500-24248-00-00)

Unavailable

3

GRAPHIC, FUEL TANK 5

(500-24248-01-00)

Unavailable

4

GRAPHIC, FUEL TANK 3

(498-24246-00-00)

Unavailable

4

GRAPHIC, FUEL TANK 3

(498-24246-01-00)

Unavailable

4

GRAPHIC, FUEL TANK 6

(498-24249-00-00)

Unavailable

4

GRAPHIC, FUEL TANK 6

(498-24249-01-00)

Unavailable

5

GASKET, PLATE 2

(437-24616-00-00)

Unavailable

6

. GASKET, CAP

498-24612-00-00

Unavailable

7

GASKET, PLATE 2

(437-24616-00-00)

Unavailable

8

. GASKET, CAP

437-24612-00-00

Unavailable

9

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

10

. SCREW, PN HEAD

98511-0406-00

Unavailable

11

. WASHER, PLATE

92901-104100-00

Unavailable

12

STOPPER, PLATE

(437-24639-00-00)

Unavailable

13

. GASKET, PLATE 1

437-24615-00-00

Unavailable

14

PIN SPRING(664)

91690-40018-00

Unavailable

15

CAP ASSEMBLY

(437-24602-00-00)

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

19

CIRCLIP (604)

93430-02001-00

Unavailable

20

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

21

DAMPER, LOCATING 3

363-24183-00-00

Unavailable

22

GROMMET

(90480-25189-00)

Unavailable

23

WASHER, SPECIAL SHAPE

(90209-10101-00)

Unavailable

24

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

FUEL COCK ASSY

498-24500-01-00

Unavailable

27

VALVE, COCK

498-24523-00-00

Unavailable

28

. GASKET

214-24513-00-00

Unavailable

29

. LEVER, COCK

498-24524-01-00

Unavailable

30

. WASHER, WAVE

214-24518-00-00

Unavailable

31

PLATE, LEVER FITTING

(214-24525-00-00)

Unavailable

32

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

33

GASKET, FILTER

498-24522-00-00

Unavailable

34

CUP, FILTER

438-24521-00-00

Unavailable

35

. NUT

438-24531-00-00

Unavailable

36

GASKET, BODY

214-24512-00-00

Unavailable

37

SCREW 256241430000

90149-06011-00

Unavailable

38

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

39

HOSE

90445-11149-00

Unavailable

40

CLIP 101235600

90467-08003-00

Unavailable
