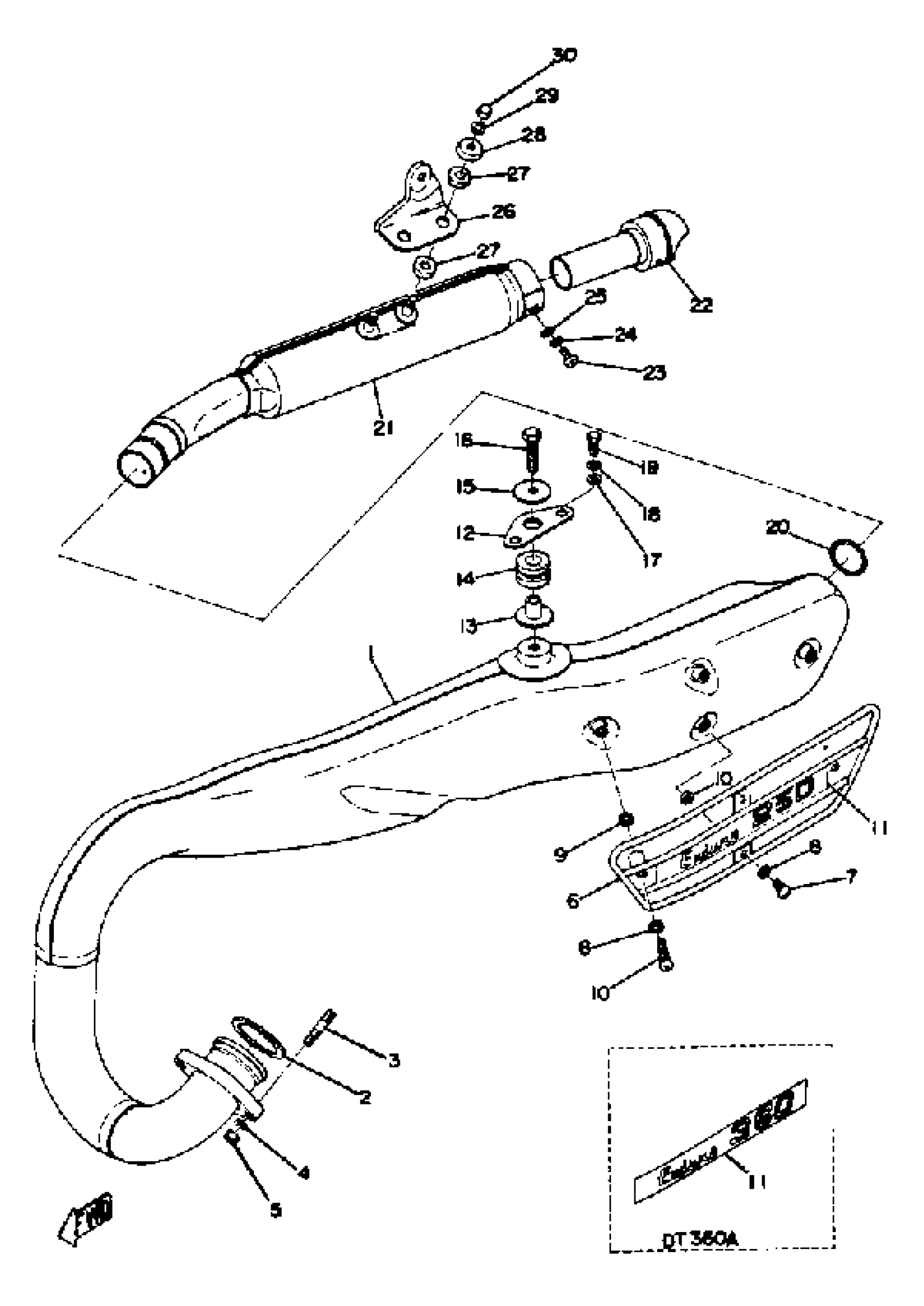

Yamaha DT360A (DT360A) 1974 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY

438-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

214-14613-09-00

$18.49

3

BOLT, STUD

90116-06146-00

Unavailable

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

NUT(6L2)

95333-08600-00

$2.49

5

NUT(6L2)

95333-08600-00

$2.49

6

PROTECTOR, MUFFLER

498-14718-00-93

Unavailable

7

SCREW, BIND(J45)

98980-06012-00

$8.49

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

WASHER, PLATE(3MT)

90202-05188-00

$8.49

10

SCREW, BIND(J39)

98980-06035-00

$7.49

11

EMBLEM, PROTECTOR

445-14729-00-00

Unavailable

11

EMBLEM, PROTECTOR

498-14729-01-00

Unavailable

12

STAY, MUFFLER 1

437-14771-00-00

Unavailable

13

COLLAR

90387-08242-00

Unavailable

14

GROMMET 437147470000

90480-20132-00

Unavailable

15

WASHER, PLATE (397)

90201-08100-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

BOLT

97013-08035-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

O-RING

93210-27250-00

Unavailable

21

SILENCER, EXHAUST

438-14753-02-00

Unavailable

22

PIPE, OUTLET

438-14752-00-00

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

STAY, MUFFLER

438-14781-00-00

Unavailable

27

DAMPER, MUFFLER

438-14757-00-00

Unavailable

28

WASHER

90209-06061-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

NUT (J17)

95380-06800-00

Unavailable
