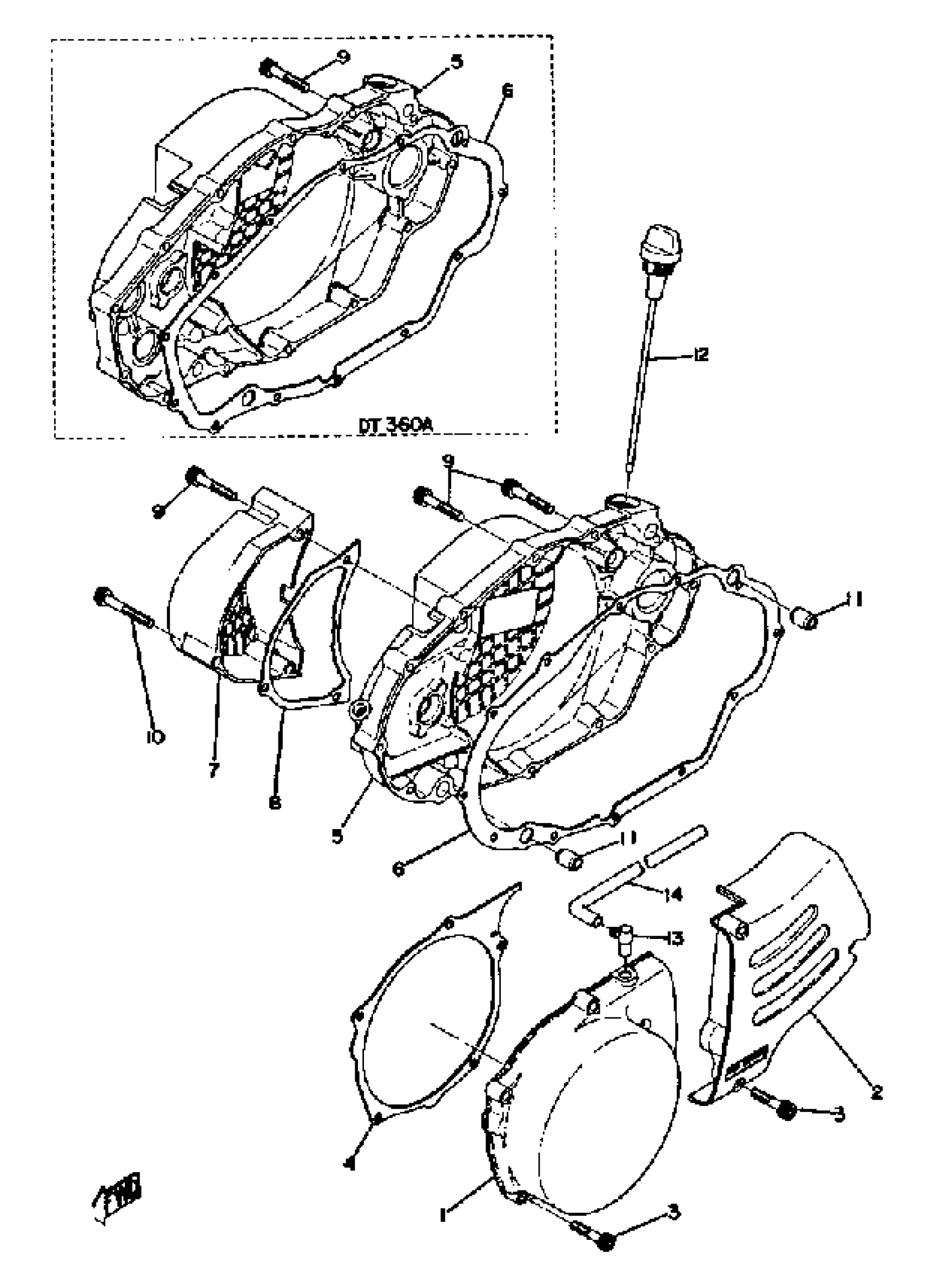

Yamaha DT360A (DT360A) 1974 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

438-15411-00-00

Unavailable

2

COVER, CRANKCASE R

438-15421-01-00

Unavailable

3

BOLT

901316-06030-00

Unavailable

4

GASKET, CRANKCASE COVER

363-15451-09-00

$24.99

5

COVER, CRANKCASE R

438-15431-00-00

Unavailable

5

COVER, CRANKCASE R

445-15431-01-00

Unavailable

6

GASKET, CRCS COVER R

363-15461-01-00

Unavailable

6

GASKET, CRANKCASE COVER

364-15461-09-00

$32.99

7

COVER, OIL PUMP

438-15416-01-00

Unavailable

8

GASKET,O/PMP CVR 1

363-15456-09-00

Unavailable

9

BOLT,SOCKET

91317-06035-00

Unavailable

9

BOLT,SOCKET

91317-06035-00

Unavailable

10

BOLT,SOCKET

91317-06045-00

$4.99

11

PIN, DOWEL

99530-12016-00

$4.89

12

PLUG, OIL

322-15363-00-00

Unavailable

13

BREATHER

583-15371-00-00

Unavailable

14

HOSE (395-14197-00)

90446-07094-00

Unavailable
