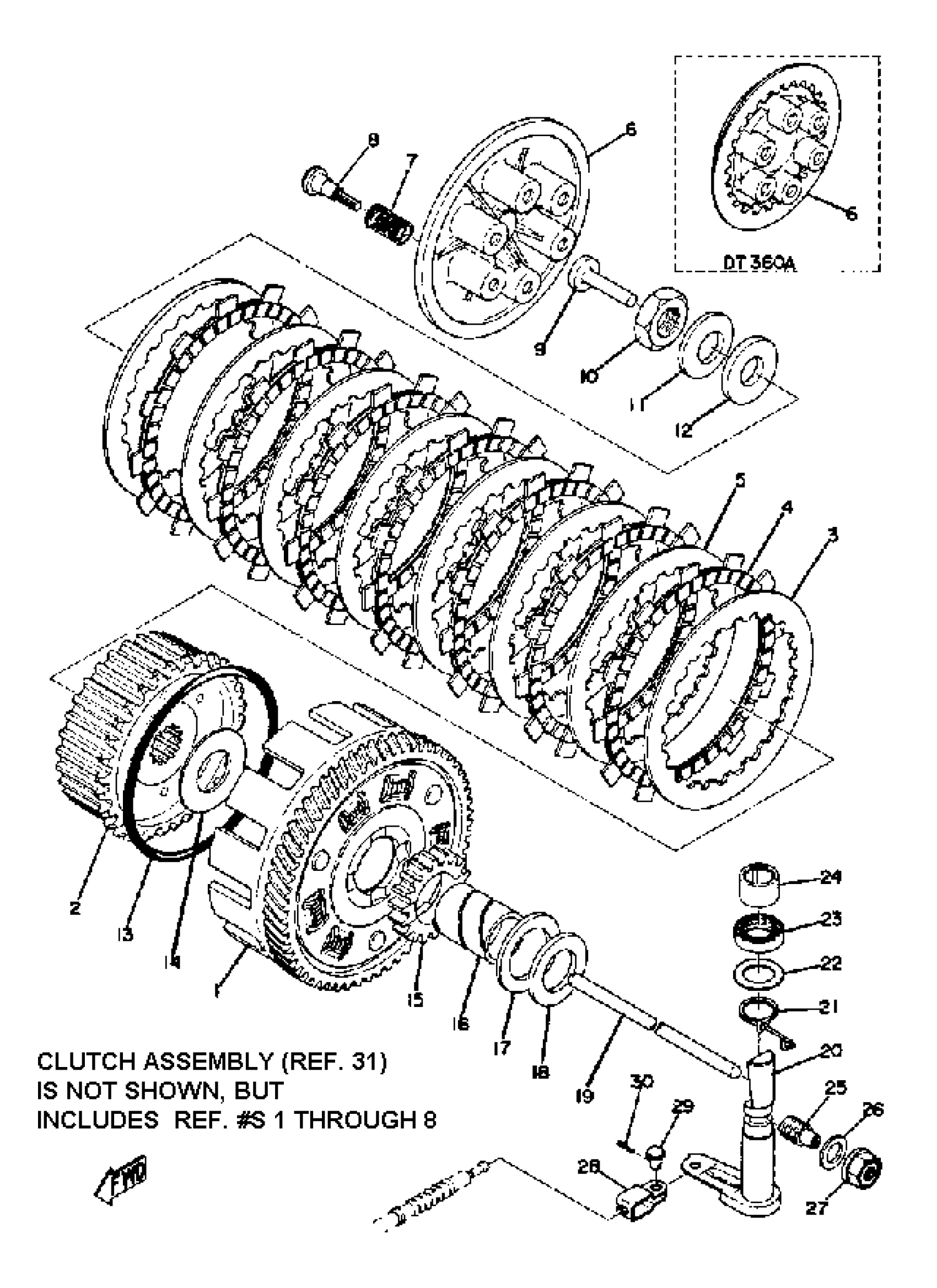

Yamaha DT360A (DT360A) 1974 CLUTCH Diagram
#
1
. PRI DRIVEN GEAR
363-16150-00-00
Unavailable
1
. PRI DRIVEN GEAR
364-16150-00-00
Unavailable
2
. BOSS, CLUTCH
214-16371-02-00
Unavailable
2
. BOSS, CLUTCH
363-16371-00-00
Unavailable
3
. PLATE, CLUTCH 1
214-16324-00-00
Unavailable
4
PLATE, FRICTION
363-16321-09-00
Unavailable
5
PLATE, CLUTCH 2
371-16325-10-00
Unavailable
6
. PLATE, PRESSURE
214-16351-01-00
Unavailable
6
. PLATE, PRESSURE
363-16351-00-00
Unavailable
7
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
8
SCREW,SPEC'L SHAPE
90149-05147-00
Unavailable
10
NUT
90170-18089-00
Unavailable
11
SPRING
214-16119-00-00
Unavailable
11
WASHER(N15)
92907-18100-00
Unavailable
13
O-RING
93211-10232-00
Unavailable
14
PLATE, THRUST (2)
170-16164-00-00
Unavailable
15
GEAR, KICK PINION (18T)
438-15631-00-00
Unavailable
15
GEAR, KICK PINION (18T)
445-15631-00-00
Unavailable
16
SPACER
214-16181-00-00
Unavailable
16
SPACER
363-16181-00-00
Unavailable
17
PLATE, THRUST
384-16154-00-00
Unavailable
18
PLATE, THRUST
363-16154-00-00
Unavailable
19
ROD, PUSH
363-16356-00-00
Unavailable
19
ROD, PUSH
634-16356-00-00
Unavailable
20
AXLE, PUSH LEVER
434-16382-01-00
Unavailable
21
SPRING, TORSION
90508-12131-00
Unavailable
22
WASHER PLATE 168217580000
90201-18262-00
Unavailable
23
OIL SEAL (17X28X6-101)
93102-17004-00
Unavailable
24
BRG,CYL-CAL ROLLER 10G KY
93315-11720-00
Unavailable
25
SCREW, ADJUSTING
363-16343-00-00
Unavailable
25
SCREW, ADJUSTING
364-16343-00-00
Unavailable
26
GASKET (3JD1)
90430-12207-00
Unavailable
27
NUT, CLUTCH ADJUSTING
583-16344-00-00
Unavailable
28
JOINT
214-16389-00-00
Unavailable
29
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
30
PIN, COTTER
91401-10010-00
Unavailable
31
CLUTCH ASSEMBLY
438-16301-00-00
Unavailable
31
CLUTCH ASSEMBLY
445-16301-00-00
Unavailable
