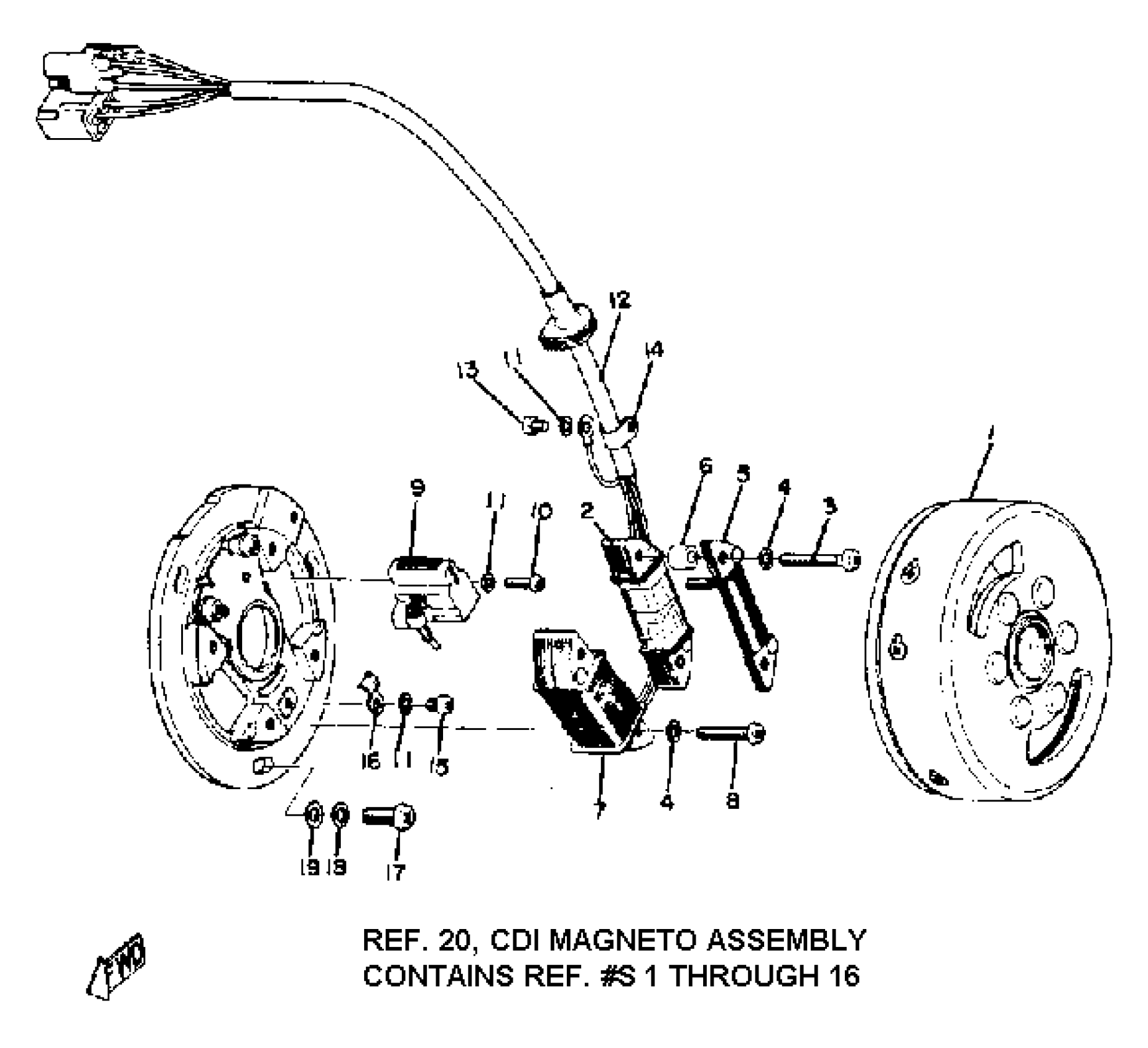

Yamaha DT360A (DT360A) 1974 CDI MAGNETO DT360A Diagram

#

Description
Price

1

. ROTOR ASSEMBLY

445-85550-20-00

Unavailable

2

. COIL SOURCE 2

445-85512-20-00

Unavailable

3

SCREW, PAN

98507-05035-00

$8.49

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

. COIL, LIGHTING 2

445-85518-20-00

Unavailable

6

. SPACER

445-85519-20-00

Unavailable

7

. COIL, LIGHTING 1

445-85513-20-00

Unavailable

8

. SCREW, PAN HEAD

93501-05035-00

Unavailable

9

. COIL, PULSER

445-85580-21-00

Unavailable

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

. LEAD WIRE ASSEMBLY

445-85515-20-00

Unavailable

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

CLAMP, READ

445-81328-20-00

Unavailable

15

SCREW,PAN HEAD

98501-04006-00

Unavailable

16

. CLAMP, LEAD

445-85528-20-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

CDI MAGNETO ASSEMBLY

445-85500-22-00

Unavailable
