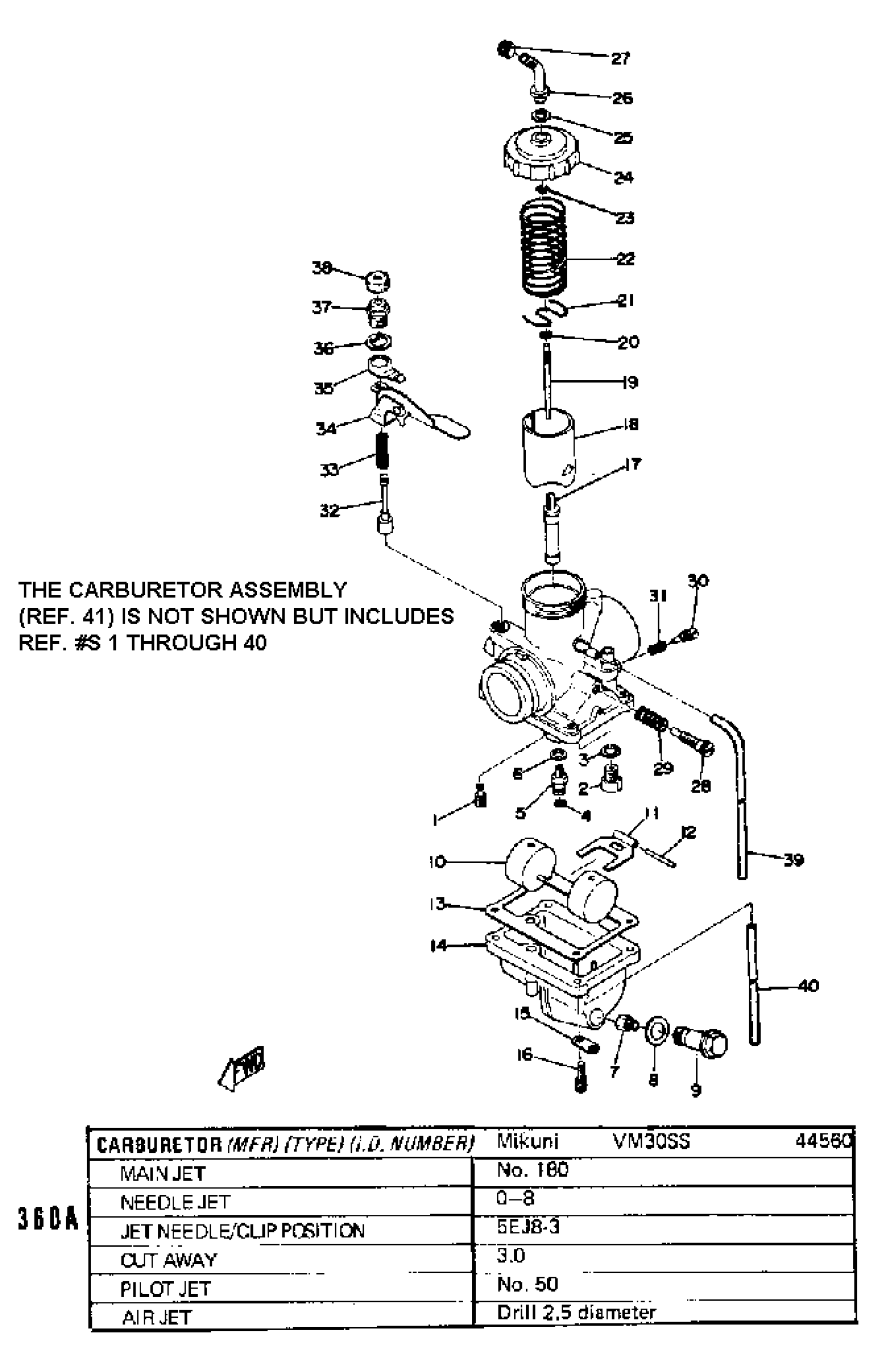

Yamaha DT360A (DT360A) 1974 CARBURETOR Diagram

#

Description
Price

1

JET, PILOT (# 50)

193-14142-50-00

$8.99

1

. JET, PILOT #60

193-14142-60-00

Unavailable

2

NEEDLE VALVE SET

23L-14107-25-00

$42.99

3

WASHER, VALVE SEAT

214-14195-00-00

$7.99

4

O-RING

214-14147-00-00

$7.99

5

. SETTER, NEEDLE JET

137-14145-00-00

Unavailable

6

WASHER,MAIN JET

137-14153-00-00

$7.99

7

. JET, MAIN #90

137-14143-18-00

Unavailable

7

JET, MAIN #130

137-14143-26-A0

$7.99

7

JET, MAIN #140

137-14143-28-A0

Unavailable

7

JET, MAIN #150

137-14143-30-00

$7.99

7

JET, MAIN #170

137-14143-34-00

$7.99

7

JET, MAIN #180

137-14143-36-A1

Unavailable

8

. GASKET

248-14198-00-00

Unavailable

9

. BOLT, BANJO

438-14166-00-00

Unavailable

10

. FLOAT

214-14185-00-00

Unavailable

11

. ARM, FLOAT

214-14187-00-00

Unavailable

12

PIN, FLOAT

127-14186-00-00

Unavailable

13

. GASKET, FLOAT CHAMBER

438-14184-00-00

Unavailable

14

. BODY, FLOAT CHAMBER

214-14181-00-00)

Unavailable

15

PLATE

132-14146-00-00

Unavailable

16

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

17

. NOZZLE, MAIN

280-14141-30-00

Unavailable

17

. NOZZLE, MAIN

445-14141-38-00

Unavailable

18

. VALVE, THROTTLE (30)

211-14112-30-00

Unavailable

18

. VALVE, THROTTLE (20)

211-14142-20-00

Unavailable

19

. NEEDLE

168-14116-07-00

Unavailable

19

. NEEDLE

438-14116-08-00

Unavailable

20

CLIP

3FA-14137-00-00

Unavailable

21

. SEAT, SPRING 000

214-14136-00-00

Unavailable

22

. SPRING,THR0TTLE VALVE

438-14131-00-00

Unavailable

23

CLIP

363-14137-00-00

Unavailable

25

. TOP, MIXING CHAMBER

363-14158-00-33

Unavailable

25

GASKET

363-14198-00-00

Unavailable

26

. GUIDE, CABLE

363-14155-00-00

Unavailable

27

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

28

. SCREW, THROTTLE STOP

438-14122-00-00

Unavailable

29

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

30

AIR SCREW SET

23X-14104-00-00

Unavailable

30

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

30

. SCREW, THROTTLE

493-14122-00-00

Unavailable

31

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

31

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

32

PLUNGER, STARTER

132-14171-00-00

Unavailable

33

SPRING, PLUNGER

156-14135-00-00

Unavailable

34

LEVER, STARTER LH

248-14175-00-00

Unavailable

35

PLATE, STARTER LEVER

170-14178-00-00

Unavailable

36

WASHER, STARTER LVR

132-14179-00-00

Unavailable

37

. CAP, PLUNGER

802-14174-00-00

Unavailable

38

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

39

HOSE (L200)

90445-05N13-00

Unavailable

40

PIPE, AIR VENT

183-14197-01-00

Unavailable

41

CARBURETOR ASSY

438-14101-60-00

Unavailable

41

CARBURETOR ASSY

445-14101-61-00

Unavailable
