1979 Yamaha DT250F (DT250F) Steering Handle - Cable Diagram

← All diagrams

Find the part on the Steering Handle - Cable diagram for your 1979 Yamaha DT250F (DT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

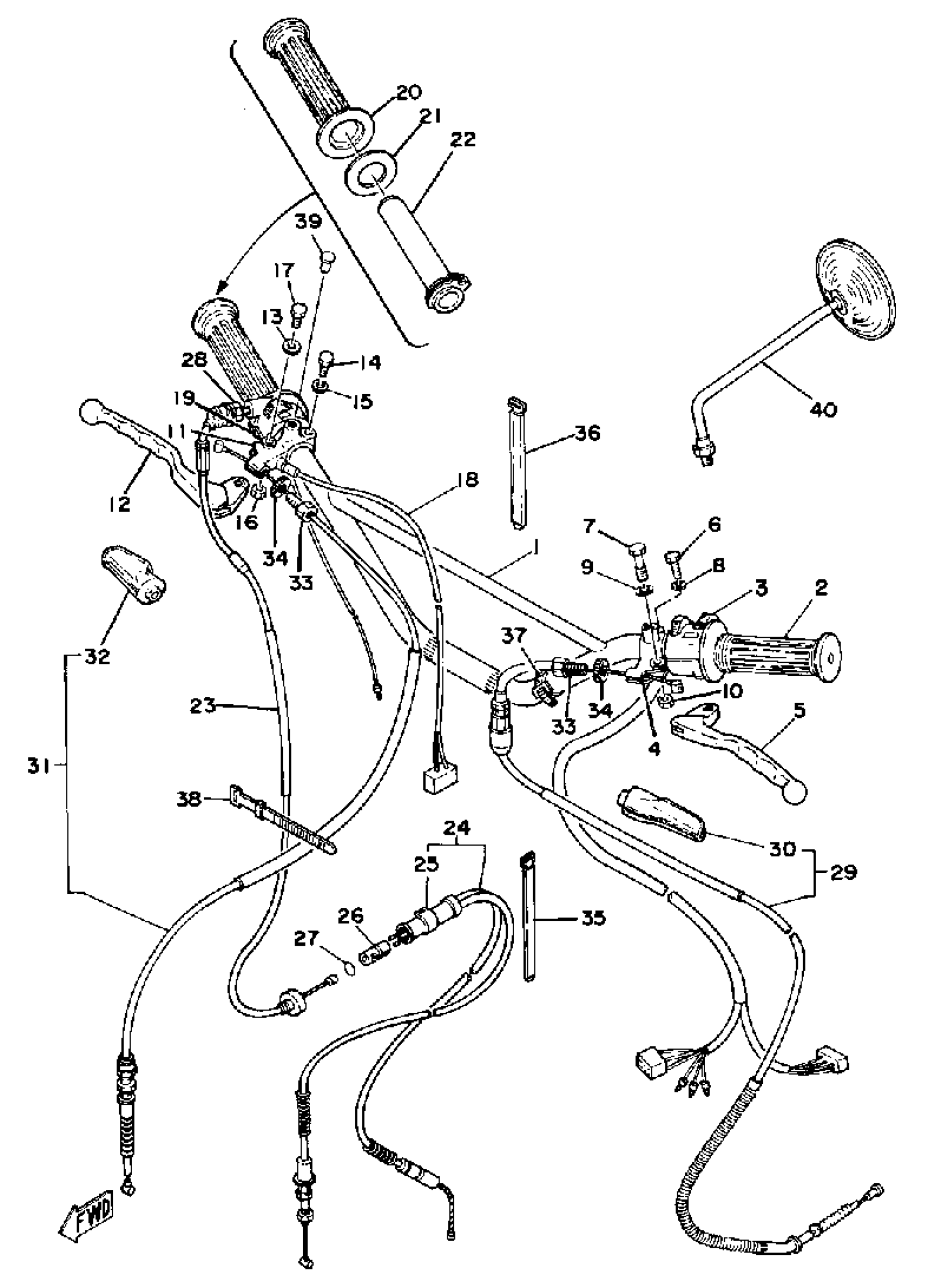

1979 Yamaha DT250F (DT250F) Steering Handle - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

2A8-26111-00-00

1
Out of stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

1M1-83973-50-00

1
Out of stock

4

HOLDER, LEVER 1

3Y6-82911-00-00

1
Out of stock

5

LEVER L

2H0-83912-31-00

1
Out of stock

6

BOLT, HEXAGON

97013-06022-00

1
Out of stock

7

BOLT(3GB)

90109-061F3-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1
Out of stock

9

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

10

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

11

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

12

LEVER R

2H0-83922-31-00

1
Out of stock

13

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

14

BOLT, HEXAGON

97013-06022-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

17

BOLT(3GB)

90109-061F3-00

1
Out of stock

18

FRONT STOP SWITCH ASSY

1M1-83980-31-00

—
Out of stock

19

SWITCH, HANDLE 1

1R6-83976-01-00

—
Out of stock

20

GRIP (R.H)

1A0-26242-01-00

—
Out of stock

21

RING, LEAF

1M1-26249-01-00

—
Out of stock

22

TUBE, GUIDE.

434-26243-00-00

—
Out of stock

23

CABLE, THROTTLE 1

2A6-26311-00-00

1
Out of stock

24

CABLE, THROTTLE 2

2N6-26312-00-00

1
Out of stock

25

BOOT

1M1-26339-00-00

1
Out of stock

26

PIECE, CONNECTING

1M1-26263-00-00

1
Out of stock

27

O-RING (260)

93210-10118-00

—
Out of stock

28

NUT, HEXAGON

90170-10038-00

—
Out of stock

29

CABLE,CLUTCH

5X3-26335-00-00

1
Out of stock

30

COVER, LEVER

498-26372-00-00

—
Out of stock

31

CABLE, BRAKE

2N6-26341-00-00

1
Out of stock

32

COVER, LEVER

498-26372-00-00

—
Out of stock

33

BOLT

90123-08002-00

—
Out of stock

34

NUT

90179-08030-00

—
Out of stock

35

BAND

(12R-26397-00-00)

1
Out of stock

36

BAND

341-26397-01-00

1
Out of stock

37

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock

38

BAND, SWITCH CORD

437-83936-11-00

—
Out of stock

39

PLUG (341-26329-00)

90338-09012-00

—
Out of stock

40

REAR VIEW MIRROR ASSY(LEFT)

1Y1-26290-10-00

—
Out of stock

41

REAR VIEW MIRROR ASSY(RIGHT)

1Y1-26290-00-00

—
Out of stock
