1979 Yamaha DT250F (DT250F) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1979 Yamaha DT250F (DT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

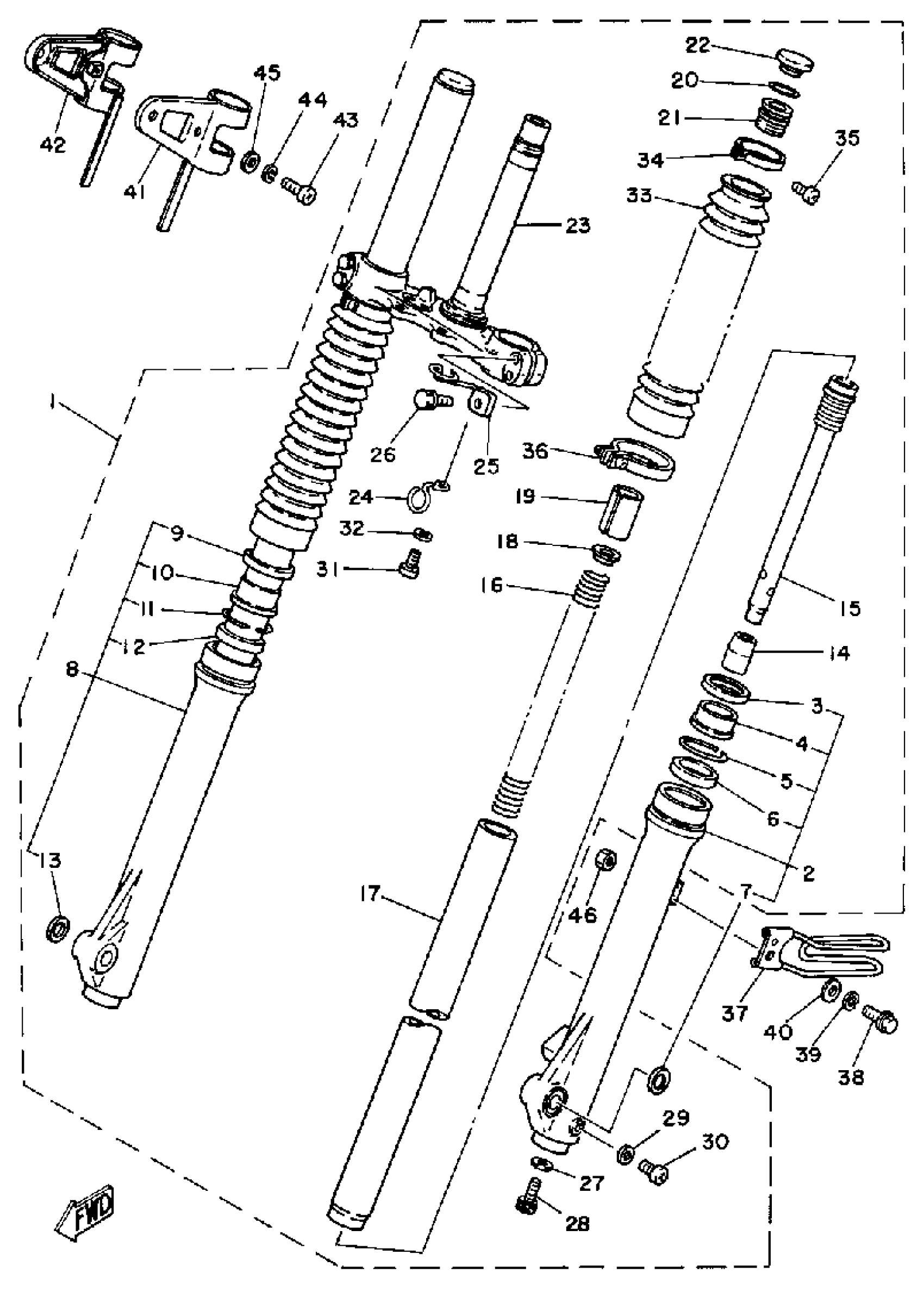

1979 Yamaha DT250F (DT250F) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2N6-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(2N6-23126-00-00)

1
Out of stock

3

.. COVER, DUST SEAL

99999-01510-00

1
Out of stock

4

SEAL, DUST

1G8-23144-L1-00

1

$22.96

In stock

5

OIL SEAL

48Y-23145-00-00

1
Out of stock

6

OIL SEAL

48Y-23145-00-00

1
Out of stock

7

.. CAP, FRONT FORK

1W1-23168-L0-00

1
Out of stock

8

TUBE, OUTER 2

(2N6-23136-00-00)

1
Out of stock

9

.. COVER, DUST SEAL

99999-01510-00

1
Out of stock

10

SEAL, DUST

1G8-23144-L1-00

1

$22.96

In stock

11

OIL SEAL

48Y-23145-00-00

1
Out of stock

12

OIL SEAL

48Y-23145-00-00

1
Out of stock

13

.. CAP, FRONT FORK

1W1-23168-L0-00

1
Out of stock

14

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

15

CYLINDER, FRTFRK

(2N6-23170-00-00)

1
Out of stock

16

SPRING, FRONT FORK

(2N6-23141-00-00)

1
Out of stock

17

INNER TUBE 1

(2N6-23110-00-00)

1
Out of stock

18

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

19

SPACER

(1W2-23118-10-00)

1
Out of stock

20

GASKET

240-23114-00-00

—

$12.27

In stock

21

CAP BOLT, FRONT FORK

1U6-23111-M1-00

—

$21.02

In stock

22

CAP, FRONT FORK

1U6-23168-M1-00

—

$7.62

In stock

23

. UNDER BRACKET (2N6-23340-00-33)

4E7-23340-30-33

1
Out of stock

24

HOLDER, CABLE 2

(2N6-23319-00-00)

1
Out of stock

25

HOLDER, CABLE

(2N4-23317-00-00)

1
Out of stock

26

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

27

GASKET

509-23158-L0-00

—

$14.34

In stock

28

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

29

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

30

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

BOOT

2N6-23191-00-00

—

$38.80

In stock

34

BAND, BOOT

341-92090-60-00

—
Out of stock

35

SCREW

509-23194-L0-00

—

$4.12

In stock

36

HOLDER, CABLE 1

1W1-23318-L0-00

1
Out of stock

37

HOLDER, CABLE 1

2N6-23318-00-00

1
Out of stock

38

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

41

STAY, HEADLIGHT 1

(2N6-84118-00-00)

1
Out of stock

42

STAY, HEADLIGHT 2

(2N6-84119-00-33)

1
Out of stock

43

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

44

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

45

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

46

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
