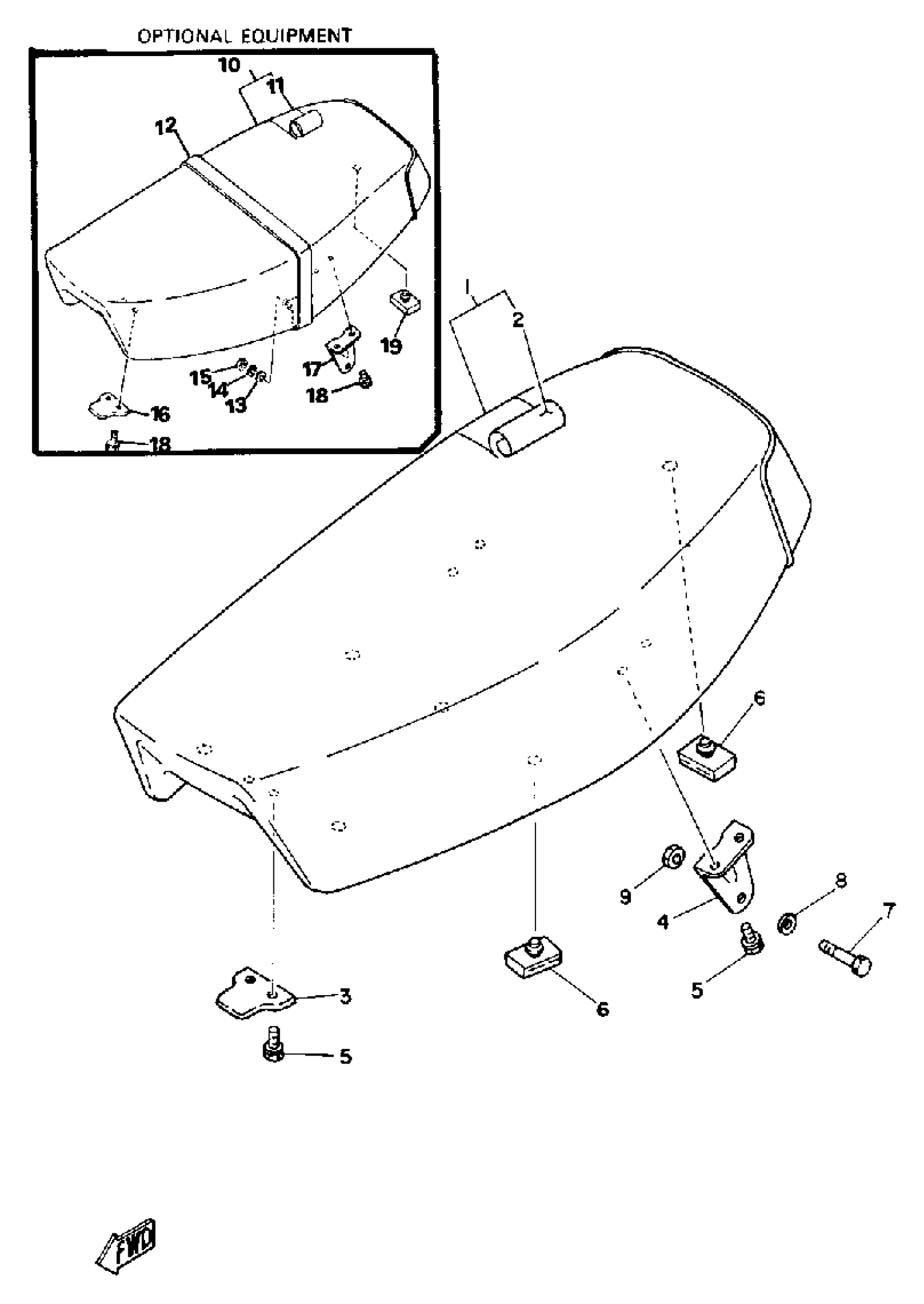

Yamaha DT250F (DT250F) 1979 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY
2N6-24710-90-00
Unavailable
2
. COVER, SINGLE SEAT
2N6-24711-00-00
Unavailable
3
BRACKET, SEAT
1M1-24748-00-00
Unavailable
4
BRACKET, SEAT
1M1-24738-00-00
Unavailable
10
ABSORBER 3
2A6-11127-00-00
Unavailable
11
COVER, DOUBLE SEAT
(2N6-24731-00-00)
Unavailable
12
BAND, SEAT
(2N6-24734-00-00)
Unavailable
13
WASHER, PLAIN
92990-08200-00
Unavailable
15
. NUT
95380-08700-00
Unavailable
16
BRACKET, SEAT
1M1-24748-00-00
Unavailable
17
BRACKET, SEAT
1M1-24738-00-00
Unavailable
