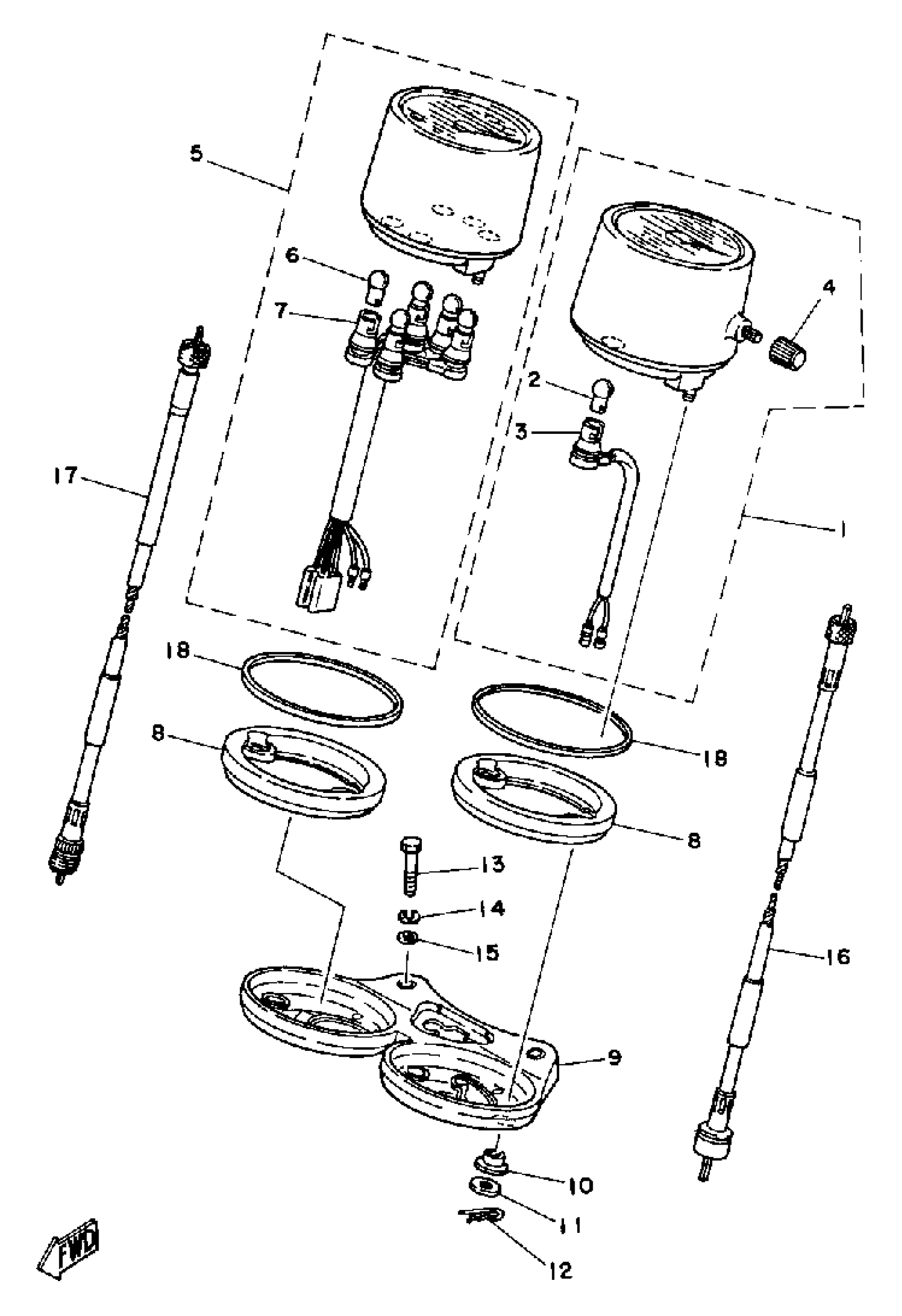

Yamaha DT250F (DT250F) 1979 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

2N4-83570-A0-00

Unavailable

2

BULB,(6V3W)

122-83516-10-00

Unavailable

3

SOCKET, METER

(1V1-83536-00-00)

Unavailable

4

. KNOB, TRIP METER

1E6-83578-10-00

Unavailable

5

TACHOMETER ASSEMBLY

(3A6-83540-F0-00)

Unavailable

6

BULB,(6V3W)

122-83516-10-00

Unavailable

7

SOCKET CORD ASSEMBLY

(2A6-83520-00-00)

Unavailable

8

DAMPER

2A6-83513-00-00

Unavailable

9

BRACKET, METER

2A6-83519-00-00

Unavailable

10

DAMPER 2

1M1-83526-01-00

$4.47

11

WASHER PLATE 829771780000

90201-05033-00

$10.49

12

CLIP (156-83525-00)

90468-10050-00

$3.05

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

16

SPEEDOMETER CABLE

2N6-83550-00-00

Unavailable

17

TACHOMETER CABLE ASSEMBLY

1M1-83560-01-00

Unavailable

18

RING, METER COVER

2A6-83506-00-00

Unavailable
