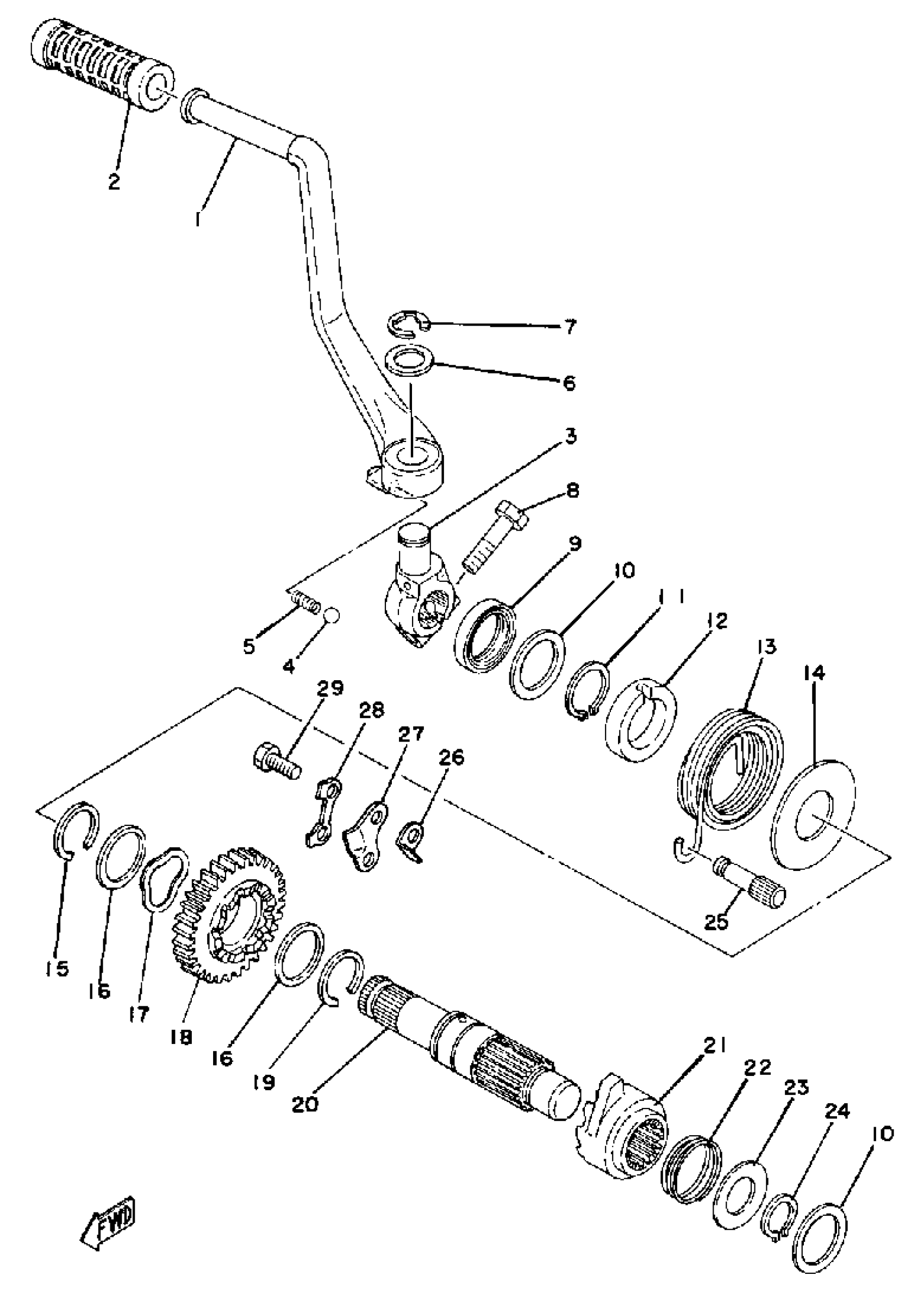

Yamaha DT250F (DT250F) 1979 KICK - STARTER Diagram

#

Description
Price

1

KICK CRANK ASSEMBLY

1M1-15620-02-00

Unavailable

2

COVER, KICK LEVER

156-15618-01-00

$7.99

3

BOSS, KICK CRANK

583-15621-00-00

$89.99

4

BALL (12R)

93507-32031-00

$4.73

5

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

6

WASHER PLATE 278156130000

90201-15234-00

$8.49

7

CIRCLIP

99006-10600-00

$9.49

8

BOLT, HEXAGON

97013-08030-00

$2.49

9

OIL SEAL,SD-TYPE

93102-20309-00

$10.49

10

WASHER PLATE 168171160000

90201-20278-00

$10.49

11

CIRCLIP(JF7)

99009-25400-00

$8.49

12

GUIDE, SPRING

(1M1-15664-00-00)

Unavailable

13

SPRING, TORSION

90508-32317-00

Unavailable

14

WASHER, PLATE

(90201-25637-00)

Unavailable

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

17

WASHER, WAVE

90206-25059-00

Unavailable

18

GEAR, KICK

1W4-15641-01-00

Unavailable

19

CIRCLIP

93440-25020-00

Unavailable

20

WHEEL, RATCHET

(1M1-15671-00-00)

Unavailable

21

WHEEL, RATCHET

(1M1-15671-00-00)

Unavailable

22

SPRING COMPRESSION363156750000

90501-23143-00

Unavailable

23

COVER, SPRING

363-15676-00-00

Unavailable

24

CIRCLIP (525)

93410-20038-00

Unavailable

25

STOPPER

(1M1-15668-01-00)

Unavailable

26

STOPPER

(1W4-15668-00-00)

Unavailable

27

GUIDE, RATCHET WHL

(1W4-15674-00-00)

Unavailable

28

WASHER, LOCK

(1W4-15686-00-00)

Unavailable

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
