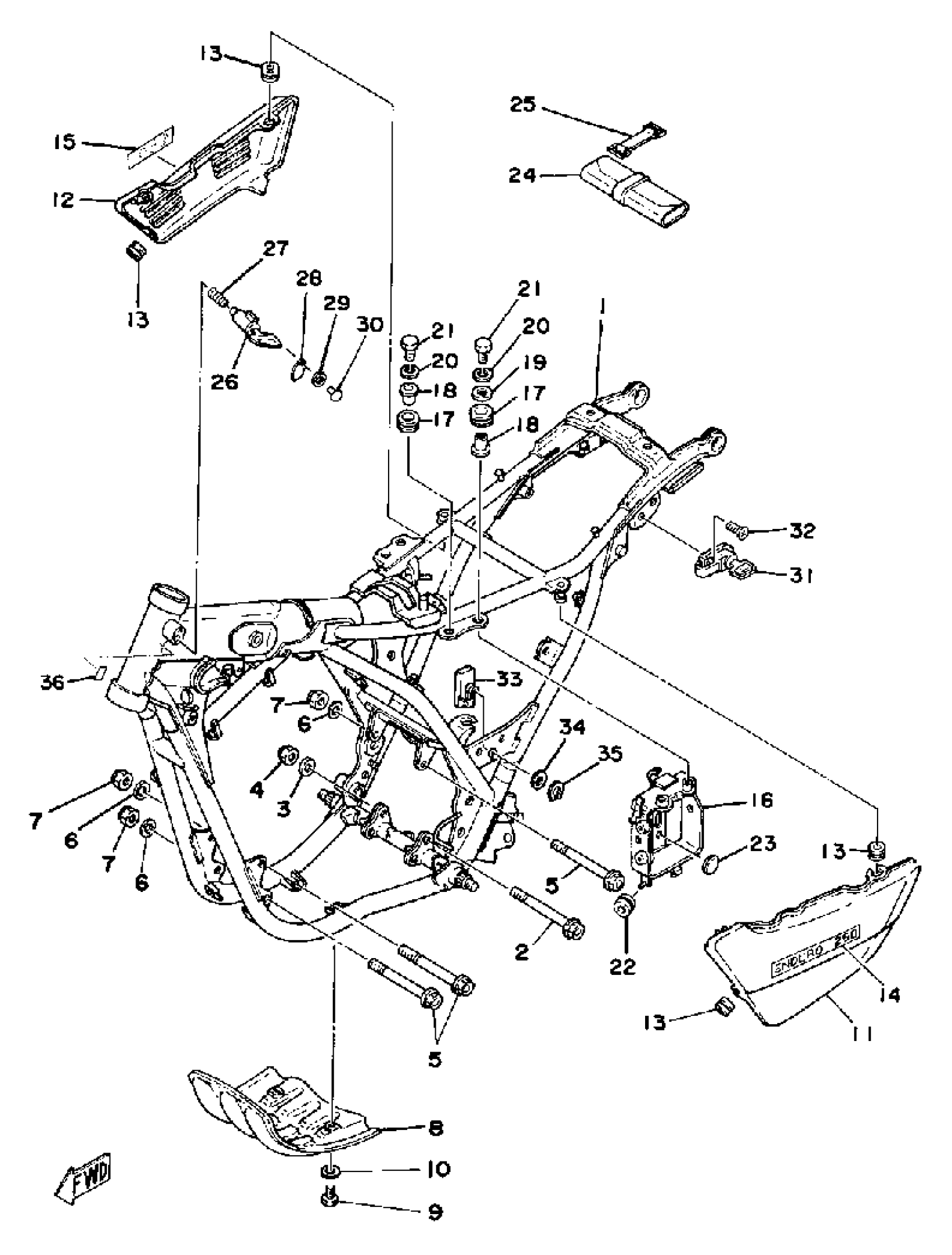

Yamaha DT250F (DT250F) 1979 FRAME - SIDE COVER Diagram

#

Description
Price

1

FRAME

(2N6-21110-00-33)

Unavailable

2

BOLT, WASHER BASED (2H7)

90105-10105-00

$12.49

3

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

4

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

5

BOLT

90105-08024-00

$7.49

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

PROTECTOR, ENGINE

1M1-21471-00-90

Unavailable

9

BOLT (661)

97013-06012-00

$5.60

10

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

11

COVER, SIDE 1

(2N6-21711-00-01)

Unavailable

12

COVER, SIDE 2

2N6-21721-00-26

Unavailable

13

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

14

EMBLEM 7

(2N6-21787-00-00)

Unavailable

15

EMBLEM 6

(2N6-21786-00-00)

Unavailable

16

BOX, BATT.

(1M1-21240-00-00)

Unavailable

17

GROMMET 839774310000

90480-14023-00

Unavailable

18

COLLAR 437216330000

90387-07391-00

Unavailable

19

WASHER, PLATE

90201-06380-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

GROMMET (583 SIDE COVER)

90480-01176-00

Unavailable

23

PAD, BATTERY

371-82121-00-00

Unavailable

24

TOOL KIT

2A6-W2810-00-00

Unavailable

25

BAND, TOOL

21V-21376-00-00

Unavailable

26

STEERING LOCK ASSY

2A6-23408-00-00

Unavailable

27

SPRING, CONICAL (1E6)

90502-09024-00

Unavailable

28

CAP, HANDLE LOCK

3DM-23484-00-00

Unavailable

29

WASHER, WAVE

90206-04003-00

Unavailable

30

RIVET 214234830000

90269-04003-00

Unavailable

31

HELMET HANGER ASSY

5H0-21308-01-00

Unavailable

32

SCREW, OVAL HEAD

98603-06018-00

Unavailable

33

PORTECTOR, CHAIN

583-22147-01-00

Unavailable

34

WASHER, WAVE (583 CHAIN PROTEC

90206-15023-00

Unavailable

35

CIRCLIP(1AR)

99009-15400-00

Unavailable

36

PLATE

(2F5-21811-01-00)

Unavailable
