TRANSMISSION GEAR

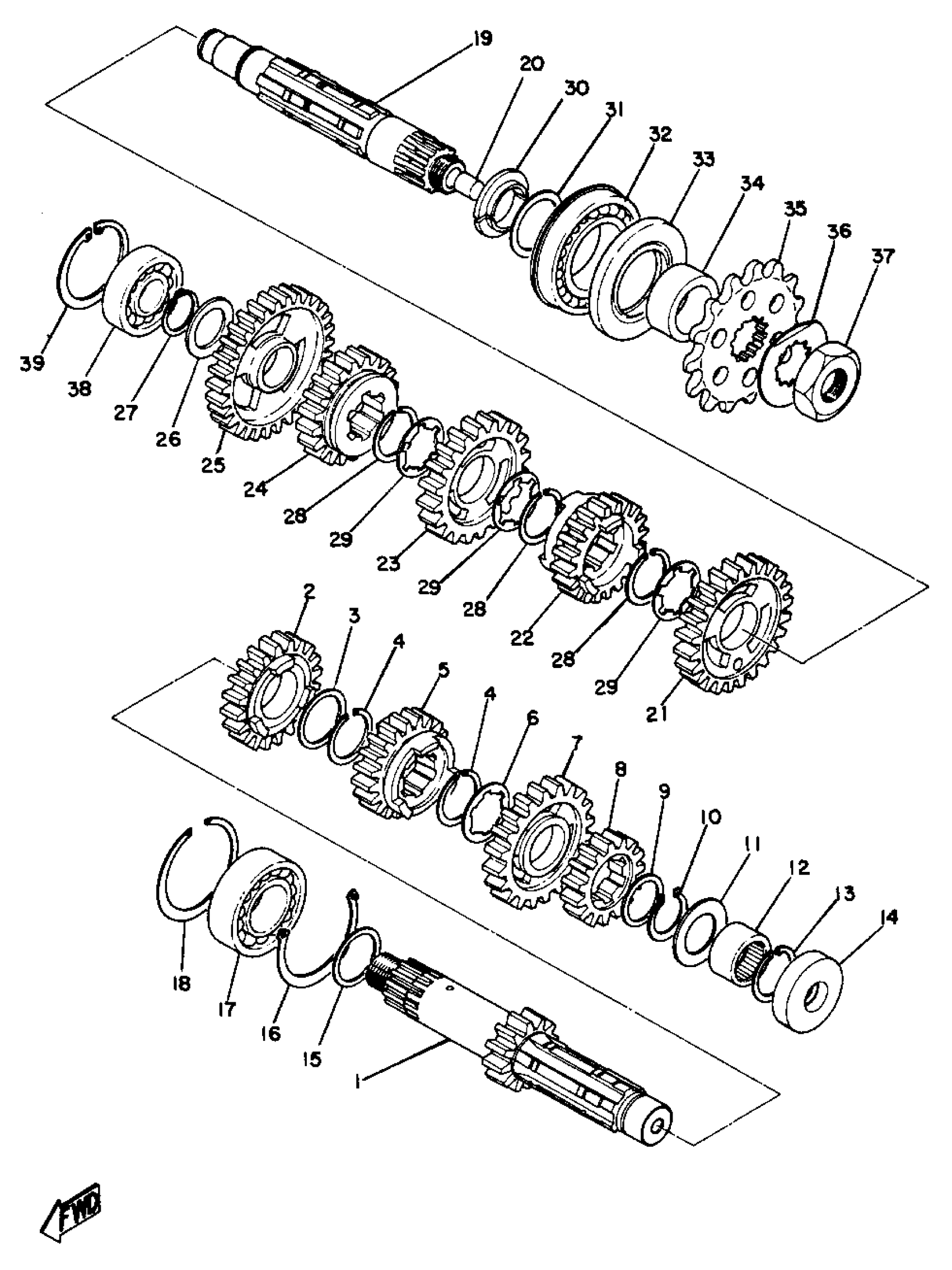

Yamaha DT1S (DT1S) 1969 TRANSMISSION GEAR Diagram
#
1
MAIN AXLE ASSEMBLY
(214-17401-00-00)
Unavailable
1
MAIN AXLE ASSEMBLY
(214-17401-10-00)
Unavailable
1
AXLE, MAIN
(214-17411-00-00)
Unavailable
1
AXLE, MAIN
(214-17411-11-00)
Unavailable
1
AXLE, MAIN
(214-17411-61-00)
Unavailable
2
GEAR, 4TH PINION
(214-17141-00-00)
Unavailable
2
GEAR, 4TH PINION
(214-17141-11-00)
Unavailable
2
DRIVE AXLE ASSEMBLY
(214-17402-00-00)
Unavailable
2
DRIVE AXLE ASSEMBLY
(214-17402-10-00)
Unavailable
5
GEAR, 3RD PINION
(214-17131-01-00)
Unavailable
5
GEAR, 3RD PINION
(275-17131-12-00)
Unavailable
6
WASHER, SPEC''L SHAP
(90209-21080-00)
Unavailable
7
GEAR, 3RD WHEEL
(214-17231-01-00)
Unavailable
7
. GEAR, 3RD WHEEL
214-17231-10-00
Unavailable
7
GEAR, 3RD WHEEL
(214-17231-60-00)
Unavailable
8
GEAR, 2ND PINION
(214-17121-00-00)
Unavailable
8
GEAR, 2ND PINION
(214-17121-10-00)
Unavailable
8
. GEAR, 2ND PINION
214-17121-60-00
Unavailable
9
WASHER PLATE 132172160000
90201-20266-00
Unavailable
10
CIRCLIP(1EY)
99009-19400-00
Unavailable
11
SHIM 1
137-17427-00-06
Unavailable
12
BEARING
93315-22004-00
Unavailable
13
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
14
OIL SEAL, SDO-TYPE (SDO-6.8-26-6)
93109-07009-00
Unavailable
15
SHIM 1 (25.1-31-0.2)
156-17417-00-02
Unavailable
16
CIRCLIP
(214-17474-00-00)
Unavailable
17
BEARING
93306-20503-00
Unavailable
18
CIRCLIP, INNER
(93450-52014-00)
Unavailable
19
AXLE, DRIVE
(214-17421-00-00)
Unavailable
20
. PLUG, BLIND
214-17481-00-00
Unavailable
21
GEAR, 2ND WHEEL
(214-17221-00-00)
Unavailable
21
. GEAR, 2ND WHEEL (34T)
214-17221-10-00
Unavailable
21
GEAR, 2ND WHEEL
(214-17221-60-00)
Unavailable
22
GEAR, 3RD PINION
(214-17131-01-00)
Unavailable
22
GEAR, 3RD PINION
(275-17131-12-00)
Unavailable
23
GEAR, 3RD WHEEL
(214-17231-01-00)
Unavailable
23
. GEAR, 3RD WHEEL
214-17231-10-00
Unavailable
23
GEAR, 3RD WHEEL
(214-17231-60-00)
Unavailable
24
GEAR, 4TH WHEEL
(214-17241-00-00)
Unavailable
24
GEAR, 4TH WHEEL
(214-17241-10-00)
Unavailable
25
GEAR, 1ST WHEEL
(214-17211-00-00)
Unavailable
25
. GEAR, 1ST WHEEL (38T)
214-17211-10-00
Unavailable
25
. GEAR, 1ST WHEEL
214-17211-60-00
Unavailable
26
WASHER PLATE 168171160000
90201-20278-00
Unavailable
27
CIRCLIP(1EY)
99009-19400-00
Unavailable
29
WASHER, SPEC''L SHAP
(90209-21080-00)
Unavailable
30
SPACER, DRIVE AXLE
156-17429-00-00
Unavailable
31
SHIM, DRIVE AXLE (0.5)
168-17428-01-05
Unavailable
32
BRG,R-B 6305 62MM 225G NK
93306-30504-00
Unavailable
33
OIL SEAL (35X62X6-371)
93102-35109-00
Unavailable
34
COLLAR
(90387-25193-00)
Unavailable
35
SPROCKET, DRIVE (13T)
9383E-13216-00
Unavailable
35
SPROCKET, DRIVE (14T)
9383E-14215-00
Unavailable
35
SPROCKET, DRIVE
4DN-17460-00-00
Unavailable
35
SPROCKET, DRIVE 16T (16T)
9383E-16106-00
Unavailable
36
WASHER, LOCK(3LD)
90215-21290-00
Unavailable
37
NUT 152174630000
90179-18020-00
Unavailable
38
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
39
CIRCLIP, INNER
(93450-40001-00)
Unavailable
