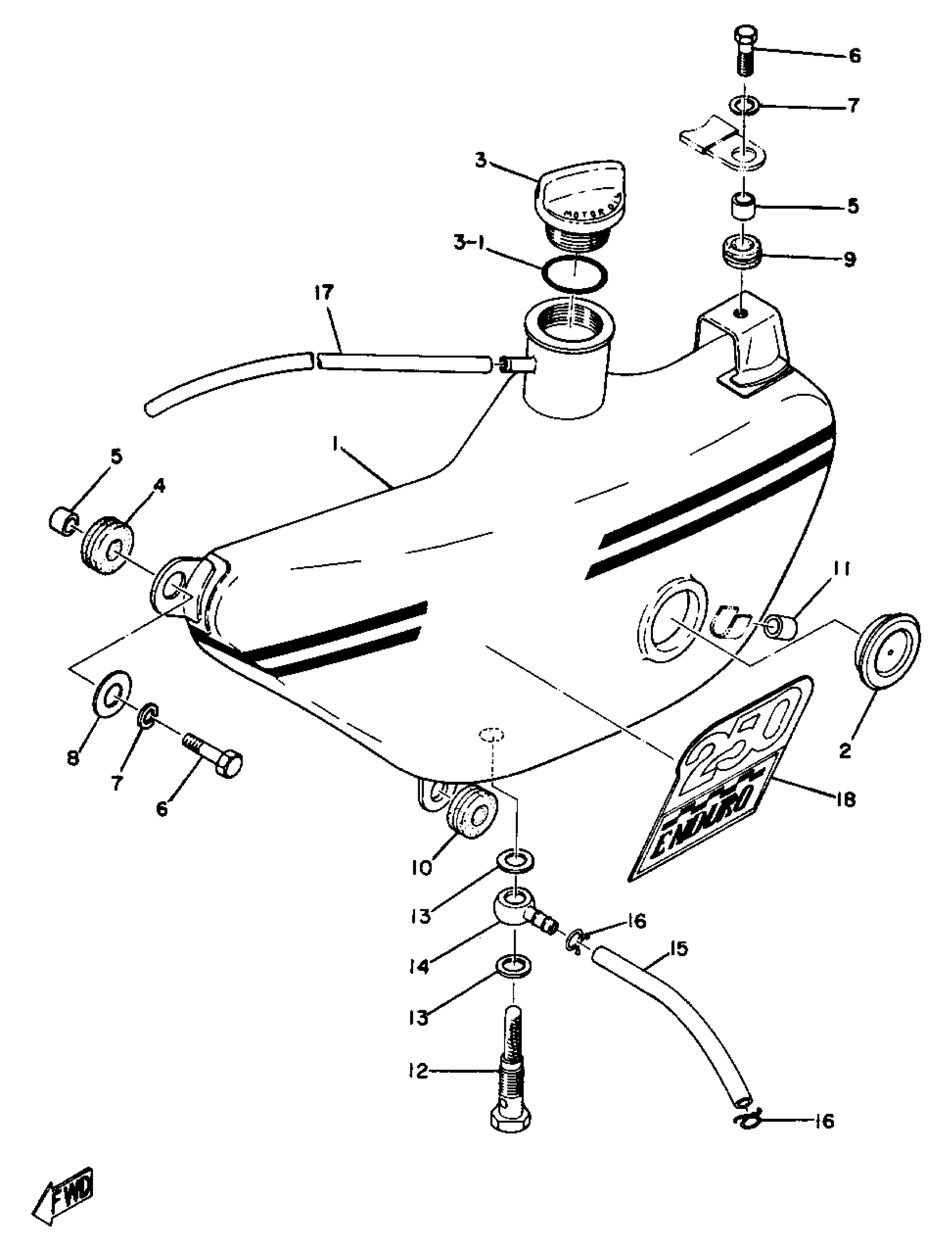

Yamaha DT1S (DT1S) 1969 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(214-21705-00-01)

Unavailable

1

OIL TANK ASSEMBLY

(214-21705-00-33)

Unavailable

1

GASKET 214217720000

90430-29114-00

$8.49

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

4

GROMMET 839774310000

90480-14023-00

$7.49

5

COLLAR (J10)

90387-06026-00

$8.49

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE

90201-06380-00

$0.60

9

GROMMET 839774310000

90480-14023-00

$7.49

10

GROMMET 214217460000

90480-10091-00

$8.49

11

DAMPER, OIL TANK

437-21779-00-00

Unavailable

12

SCREW, UNION

(214-21768-00-00)

Unavailable

13

GASKET

(90430-10029-00)

Unavailable

14

COLLAR, UNION SCREW

214-21769-00-00

Unavailable

15

HOSE (L600)

90445-083J5-00

Unavailable

16

CLIP 101235600

90467-08003-00

Unavailable

17

HOSE

(90446-06006-00)

Unavailable

18

EMBLEM 7

(214-21787-00-00)

Unavailable
