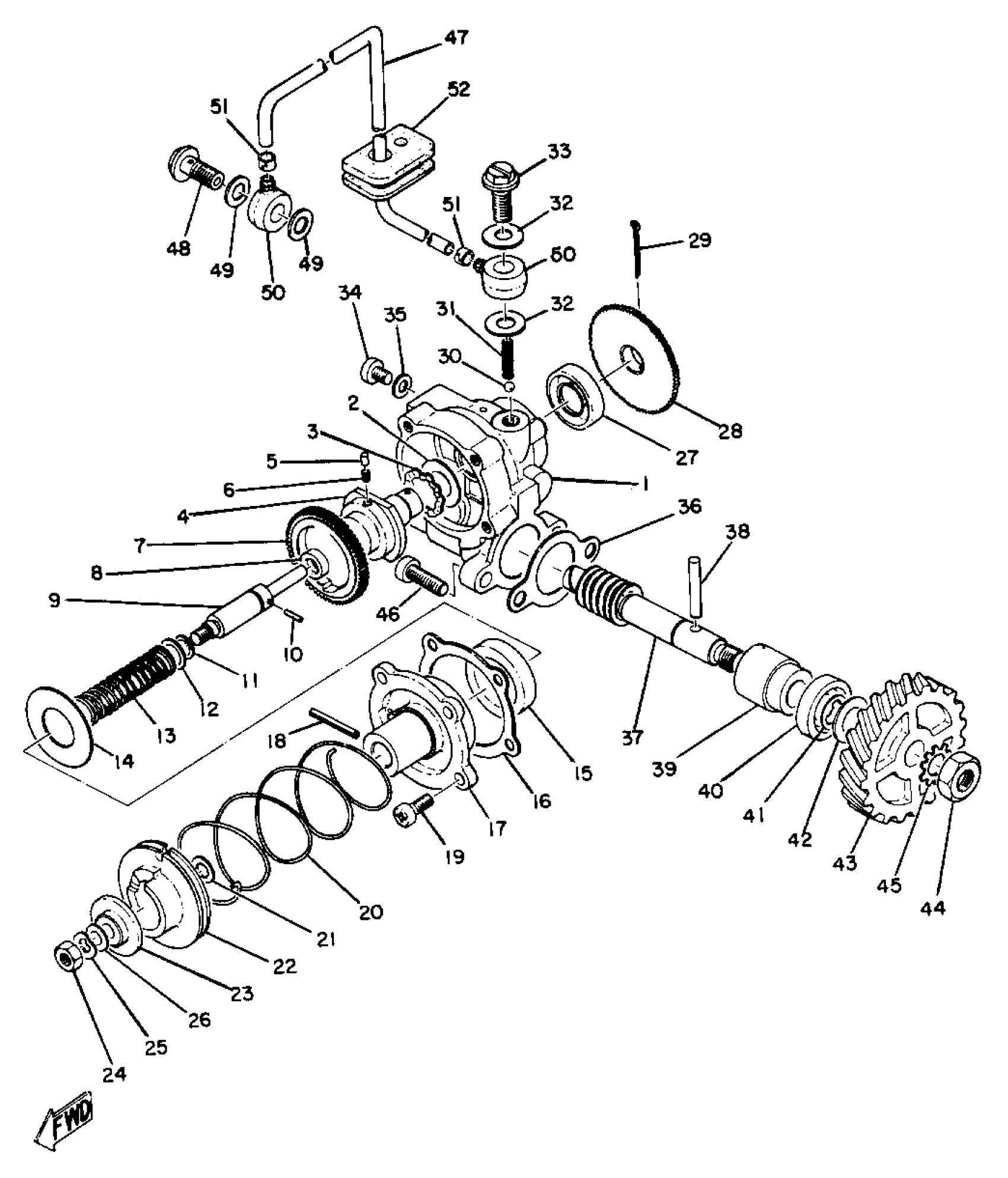

Yamaha DT1S (DT1S) 1969 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

(214-13101-04-00)

Unavailable

22

PULLEY, ADJUSTING

(364-13144-01-00)

Unavailable

23

PLATE, ADJUSTING

137-13138-01-00

Unavailable

24

NUT, HEXAGON (663)

95380-05600-00

$8.49

25

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

26

SHIM,PLUNGER

137-13137-00-10

$7.99

27

OIL SEAL (J10)

93101-10090-00

$8.49

28

PLATE, STARTER

(137-13128-00-00)

Unavailable

29

. PIN, COTTER

91401-12018-00

Unavailable

30

BALL

93505-32002-00

$2.92

31

SPRING, COMPRESSION

(90501-02017-00)

Unavailable

32

GASKET(3FP)

90430-06224-00

$5.60

33

BOLT UNION 137131650000

90401-06001-00

Unavailable

34

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

35

GASKET 137131870000

90430-04004-00

$9.49

36

GASKET, PUMP CASE

126-13116-01-00

Unavailable

37

. HOLDER, OIL PIPE

(363-13174-00-00)

Unavailable

38

PIN,DOWEL (137)

93603-22028-00

Unavailable

39

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

40

OIL SEAL (10X22X7-137)

93101-10002-00

Unavailable

41

CIRCLIP(2R6)

99001-08600-00

Unavailable

42

WASHER, PLATE(52H)

90201-105J4-00

Unavailable

43

GEAR, PUMP DRIVE

(214-13178-01-00)

Unavailable

44

. NUT

95380-08700-00

Unavailable

45

WASHER (688)

92990-08400-00

Unavailable

46

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

47

HOSE (L700)

90445-05M07-00

Unavailable

48

BOLT UNION 137131650000

90401-06001-00

Unavailable

49

GASKET(3FP)

90430-06224-00

$5.60

50

BANJO, DELIVERY PIPE

214-13162-01-00

Unavailable

51

CLIP (214-13164-00)

90468-02033-00

Unavailable

52

. HOLDER, OIL PIPE

(363-13174-00-00)

Unavailable
