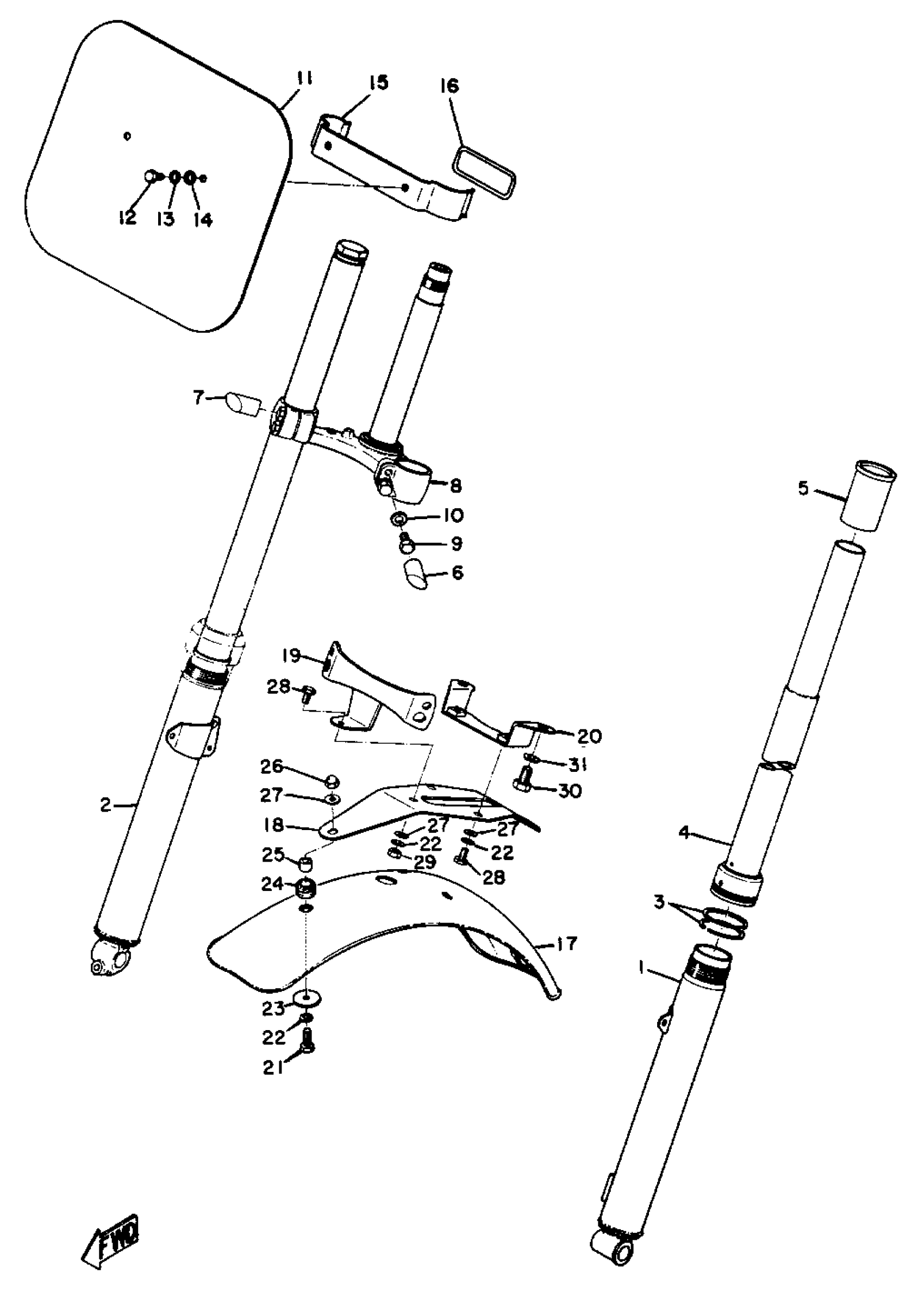

Yamaha DT1S (DT1S) 1969 FRONT FORK & FRONT FENDER Diagram

#

Description
Price

1

TUBE, OUTER 1

(275-23126-60-35)

Unavailable

1

FRONT FORK ASSEMBLY

(284-23100-00-35)

Unavailable

2

TUBE, OUTER 2

(275-23136-60-35)

Unavailable

3

RING, PISTON FRTFRK

(275-23157-60-00)

Unavailable

4

TUBE, INNER 1

(275-23124-60-00)

Unavailable

5

METAL, SLIDE 1

(275-23125-60-00)

Unavailable

6

STAY, PLATE FTNG 1

(263-21581-00-00)

Unavailable

7

STAY, PLATE FTNG 2

(263-21591-00-00)

Unavailable

8

UNDER BRACKET

(291-23340-30-33)

Unavailable

9

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

10

WASHER, PLAIN

92990-08200-00

Unavailable

11

PLATE, NUMBER

(263-23485-00-00)

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE

90201-06086-00

$7.49

15

STAY, PLATE

(263-23487-00-00)

Unavailable

16

O-RING

(93210-67057-00)

Unavailable

17

FENDER, FRONT

(284-21510-00-35)

Unavailable

18

BRACKET, FENDER

(284-21512-00-35)

Unavailable

19

STAY, FENDER 1

(284-21513-00-35)

Unavailable

20

STAY, FENDER 2

284-21514-00-35

Unavailable

21

BOLT, HEXAGON

97017-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER PLATE 256216150000

90201-06062-00

Unavailable

24

GROMMET (1E5)

90480-13163-00

Unavailable

25

COLLAR(8R4)

90387-062N2-00

Unavailable

26

NUT (J17)

95380-06800-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

BOLT, HEXAGON

97013-08016-00

Unavailable

31

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
