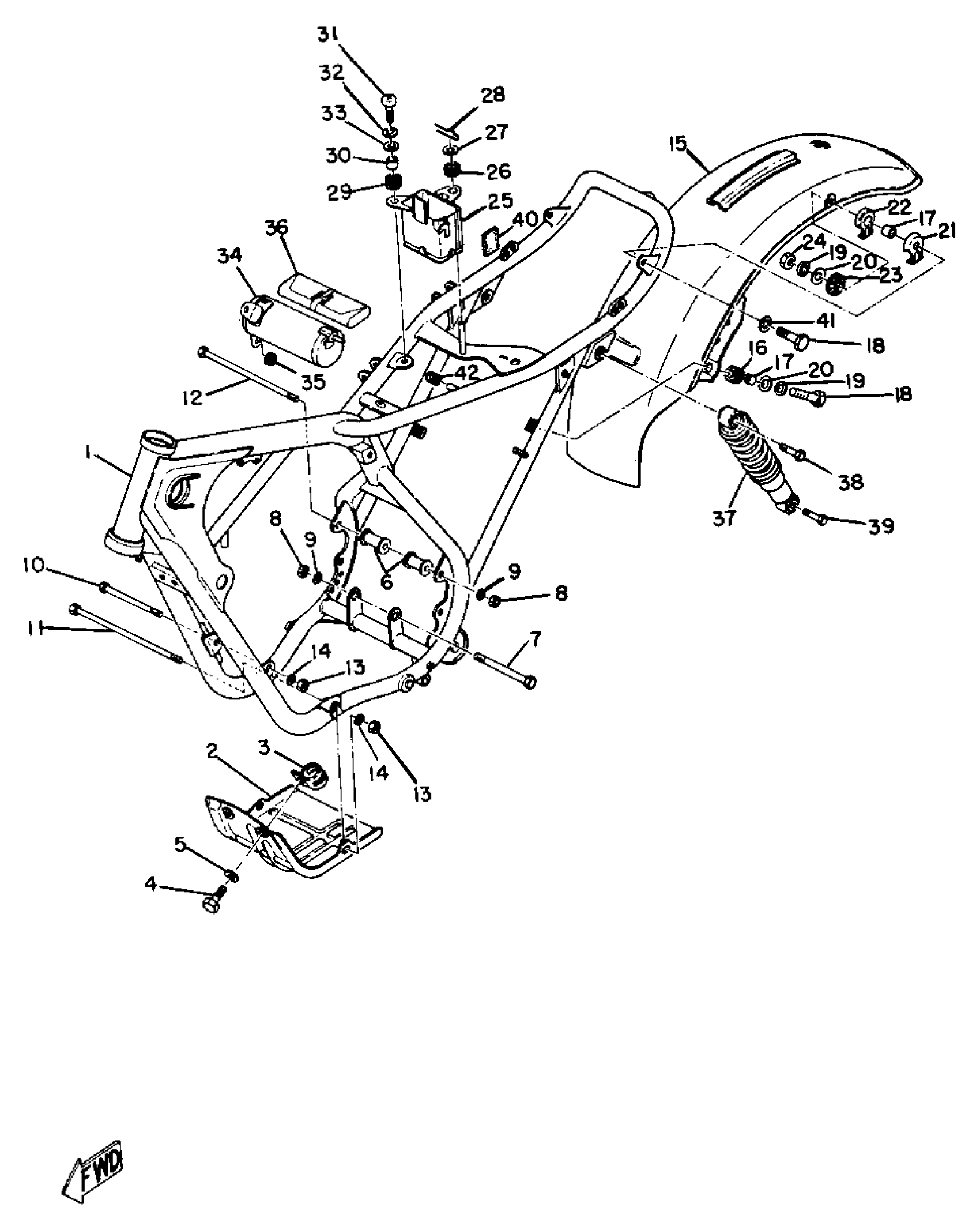

Yamaha DT1S (DT1S) 1969 FRAME Diagram
#
1
FRAME
(214-21110-03-33)
Unavailable
2
PROTECTOR, ENGINE
(214-21471-01-00)
Unavailable
3
BRACKET, PROTC FRT
(214-21433-00-33)
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
6
SPACER
(214-21459-01-00)
Unavailable
7
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
8
NUT, SELF LOCKING
90185-10031-00
Unavailable
11
BOLT (214-21842-00)
90109-08040-00
Unavailable
12
BOLT, WASHER BASED (3Y1)
90105-10139-00
Unavailable
15
FENDER, REAR
(214-21610-01-35)
Unavailable
16
GROMMET 839774310000
90480-14023-00
Unavailable
17
COLLAR (J10)
90387-06026-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
WASHER, PLATE
90201-06380-00
Unavailable
21
WASHER, SPECIAL 1
(214-21615-00-00)
Unavailable
22
DAMPER 2
(214-21639-00-00)
Unavailable
23
DAMPER
(214-21649-00-00)
Unavailable
24
NUT, HEXAGON
95380-06600-00
Unavailable
25
BOX, BATT.
(214-21240-10-33)
Unavailable
26
GROMMET 214217470000
90480-14103-00
Unavailable
27
WASHER, SPEC''L SHAP
(90209-05025-00)
Unavailable
28
CLIP (156-83525-00)
90468-10050-00
Unavailable
29
GROMMET 839774310000
90480-14023-00
Unavailable
30
COLLAR (J10)
90387-06026-00
Unavailable
31
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
WASHER, PLATE
90201-06380-00
Unavailable
34
BOX
(214-21170-00-33)
Unavailable
35
GROMMET 214217460000
90480-10091-00
Unavailable
36
TOOL KIT
(214-W2810-10-00)
Unavailable
37
SHOCK ABS ASSY, REAR
291-22210-71-00
Unavailable
38
BOLT ROUND 214222410000
90106-10025-00
Unavailable
39
BOLT, DOME HEAD
(90106-10026-00)
Unavailable
40
SEAL
(214-21268-00-00)
Unavailable
41
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
42
DAMPER, OIL TANK
437-21779-00-00
Unavailable
