CRANK & PISTON

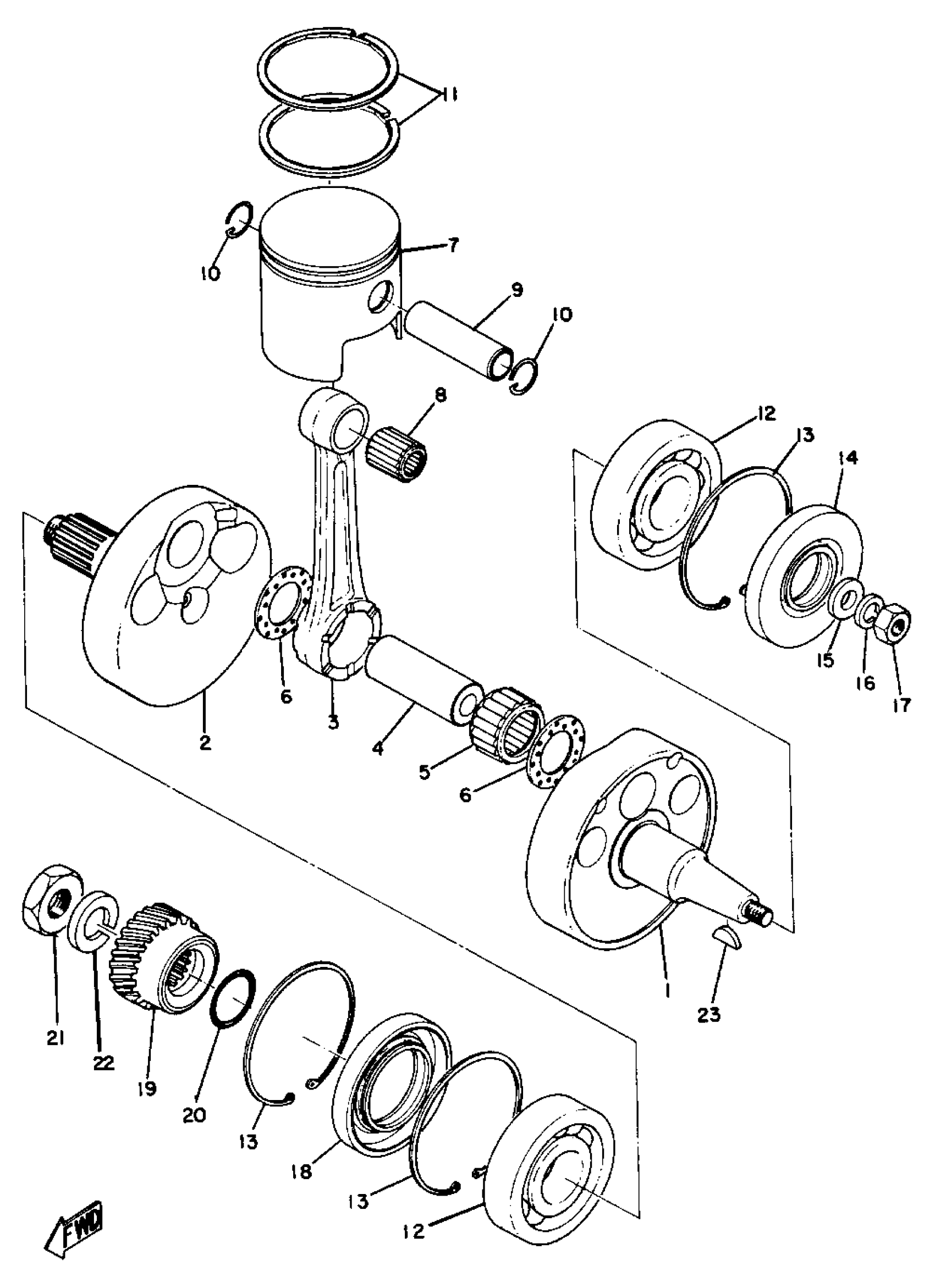

Yamaha DT1S (DT1S) 1969 CRANK & PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(214-11400-01-00)
Unavailable
1
CRANK 1
(214-11412-01-00)
Unavailable
2
CRANK 2
(214-11422-00-00)
Unavailable
3
. ROD, CONNECTING
431-11651-00-00
Unavailable
4
. PIN, CRANK 1 (DIA 24MM)
214-11681-00-00
Unavailable
7
PISTON STD
(214-11631-01-96)
Unavailable
7
PISTON STD
(214-11631-01-96)
Unavailable
7
UNAVAILABLE IN PRICE BOOK
(214-11635-00-00)
Unavailable
7
PISTON 1 O/S 0.25
214-11635-01-00
Unavailable
7
UNAVAILABLE IN PRICE BOOK
(214-11636-00-00)
Unavailable
7
PISTON 2 O/S 0.50
214-11636-01-00
Unavailable
7
PISTON 3 O/S 0.75
214-11637-01-00
Unavailable
7
PISTON 3 O/S 0.75
214-11637-01-00
Unavailable
7
PISTON 4 O/S 1.00
214-11638-01-00
Unavailable
7
PISTON 4 O/S 1.00
214-11638-01-00
Unavailable
7
PISTON STD
(285-11631-00-96)
Unavailable
7
PISTON 1 O/S 0.25
(285-11635-00-00)
Unavailable
7
PISTON 2 O/S 0.50
(285-11636-00-00)
Unavailable
7
PISTON 3 O/S 0.75
(285-11637-00-00)
Unavailable
7
PISTON 4 O/S 1.00
(285-11638-00-00)
Unavailable
8
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
9
PIN, PISTON
214-11633-00-00
Unavailable
10
CLIP 6041163400
93450-20026-00
Unavailable
11
RING SET STD W/EXP
214-11601-02-00
Unavailable
11
RING SET STD KS
214-11601-03-00
Unavailable
11
RING SET 1ST W/EXP
(214-11601-12-00)
Unavailable
11
RING SET 1ST KS
214-11601-13-00
Unavailable
11
RING SET 2ND W/EXP
214-11601-22-00
Unavailable
11
RING SET 2ND KS
214-11601-23-00
Unavailable
11
PISTON RINGSET 3RD
214-11601-32-00
Unavailable
11
RING SET 3RD KS
214-11601-33-00
Unavailable
11
PISTON RINGSET 4TH
214-11601-42-00
Unavailable
11
RING SET 4TH KS
214-11601-43-00
Unavailable
11
RING, PISTON STD
(285-11611-00-00)
Unavailable
11
RING, PISTON 1ST
(285-11611-10-00)
Unavailable
11
RING, PISTON 2ND
(285-11611-20-00)
Unavailable
11
RING, PISTON 3RD
(285-11611-30-00)
Unavailable
11
RING, PISTON 4TH
(285-11611-40-00)
Unavailable
12
BEARING(3KW)
93306-30630-00
Unavailable
13
CIRCLIP, R-TYPE
(93420-72023-00)
Unavailable
14
OIL SEAL, SW-TYPE (SW-30-72-10)
93103-30044-00
Unavailable
15
WASHER (492)
90201-12535-00
Unavailable
16
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
17
NUT(55K)
90170-12347-00
Unavailable
18
OIL SEAL, SW-TYPE (SW-42-72-10)
93103-42045-00
Unavailable
19
GEAR, PRI DRIVE
(214-16111-00-00)
Unavailable
20
O-RING (437)
93210-24235-00
Unavailable
21
NUT
90170-18089-00
Unavailable
22
WASHER(N15)
92907-18100-00
Unavailable
23
KEY, WOODRUFF
90280-05001-00
Unavailable
