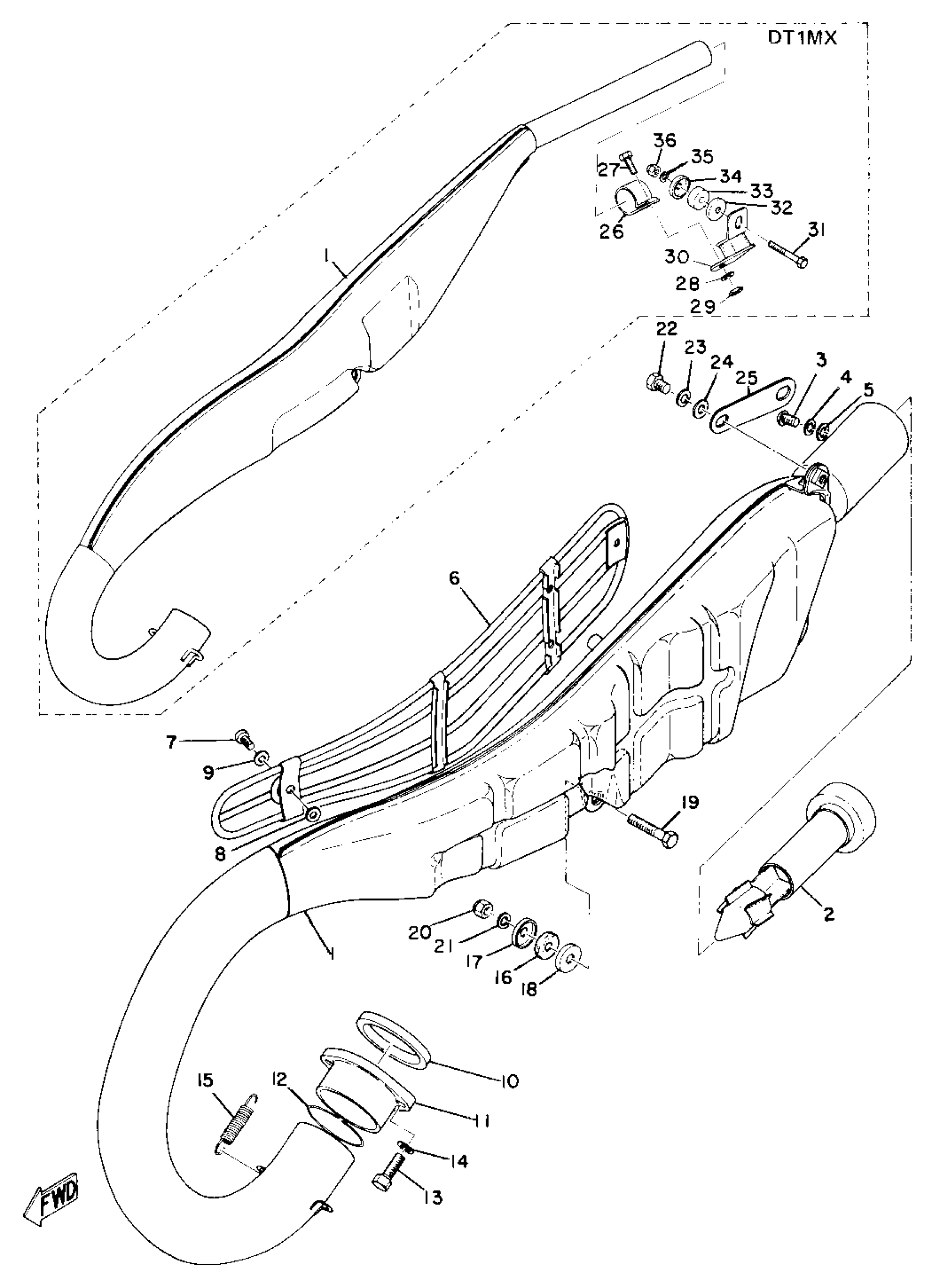

Find the part on the Muffler diagram for your 1971 Yamaha DT1MX (DT1MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha DT1MX (DT1MX) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(285-14610-10-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(291-14610-30-00)

1
Out of stock

2

. PIPE, OUTLET

291-14752-30-00

1
Out of stock

3

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

PROTECTOR, MUFF 1

214-14718-00-00

1
Out of stock

7

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

8

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

9

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

10

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

11

NO LONGER AVAILABLE

214-14612-00-00

1
Out of stock

12

GASKET

248-14623-10-00

1

$6.22

In stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

16

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

17

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

18

PLATE, MUFFLER

(214-14794-00-00)

1
Out of stock

19

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

20

NUT, REAR FENDER

(214-21635-00-00)

1
Out of stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

25

STAY, MUFFLER 1

214-14771-00-00

1
Out of stock

26

STAY, MUFFLER

(285-14791-10-00)

1
Out of stock

27

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

STAY, MUFFLER 2

(285-14781-11-00)

1
Out of stock

31

BOLT, HEXAGON

97013-06045-00

—

$1.51

In stock

32

PLATE, MUFFLER

(214-14794-00-00)

1
Out of stock

33

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

34

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

NUT, REAR FENDER

(214-21635-00-00)

1
Out of stock
