1981 Yamaha DT175H (DT175H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha DT175H (DT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

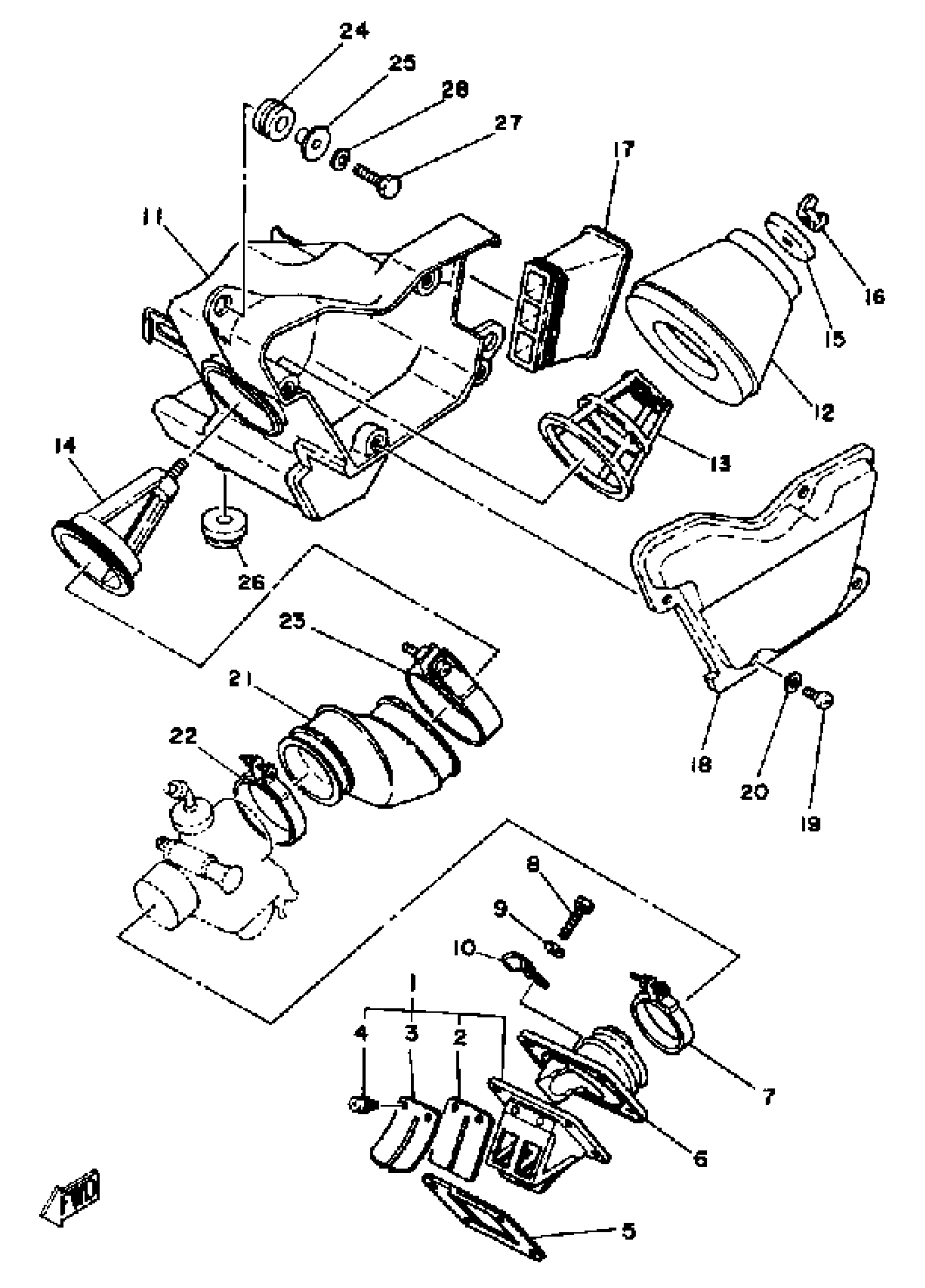

1981 Yamaha DT175H (DT175H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

2

REED, VALVE

345-13613-70-00

1

$62.56

In stock

3

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

6

JOINT, CARBURETOR

401-13565-01-00

1
Out of stock

7

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

11

CASE, AIR CLEANER 1

3J0-14411-01-00

1
Out of stock

12

ELEMENT, AIR CLEANER

3J0-14451-02-00

1
Out of stock

13

GUIDE

3J0-14458-01-00

1
Out of stock

14

. GUIDE

99999-01180-00

1
Out of stock

15

PLATE, ELEMENT FTNG

2X4-14468-00-00

1
Out of stock

16

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

17

DUCT

3J0-14437-00-00

1
Out of stock

18

CAP, CLEANER CASE 1

3J0-14412-00-00

1
Out of stock

19

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

20

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

21

JOINT, AIR CLEANER 1

3J1-14453-00-00

1
Out of stock

22

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

23

CLAMP, HOSE (90460-71017)

90460-71129-00

1
Out of stock

24

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

25

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

26

GROMMET (509)

90480-18171-00

—

$6.55

In stock

27

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
