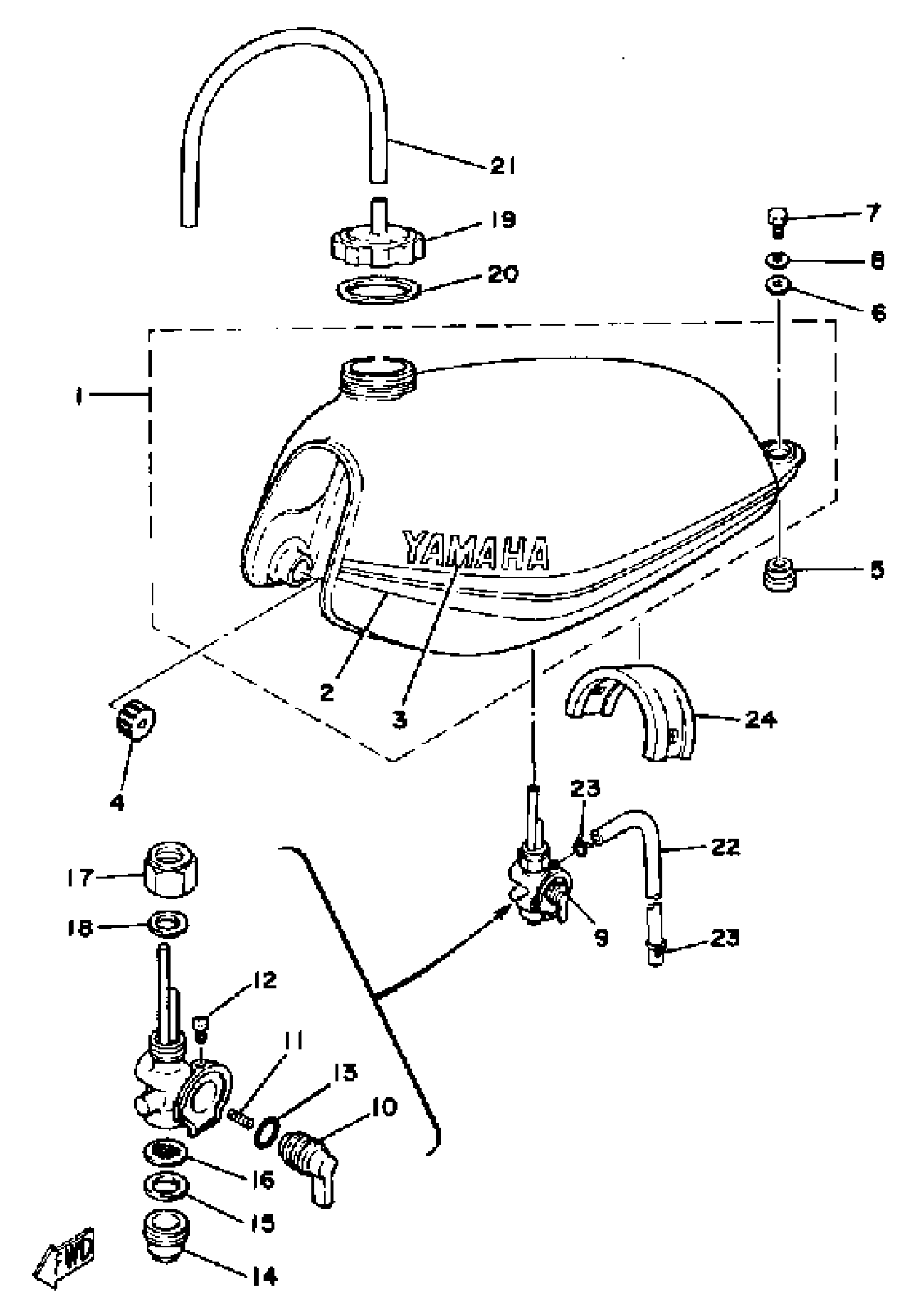

Yamaha DT175H (DT175H) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

2N4-24110-Y0-03

Unavailable

2

. GRAPHIC SET

3J1-24240-20-00

Unavailable

3

EMBLEM, YAMAHA

99244-00120-00

$16.99

4

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

5

GROMMET

90480-22231-00

Unavailable

6

WASHER, PLATE

90201-06086-00

$7.49

7

BOLT (661)

97013-06012-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

FUEL COCK ASSY 1

357-24500-20-00

$117.99

10

LEVER, COCK

(357-24524-10-00)

Unavailable

11

SPRING

(357-24529-10-00)

Unavailable

12

. SCREW, LVR FITTING

2N3-24535-00-00

Unavailable

13

O-RING

2N3-24528-00-00

Unavailable

14

CUP, FILTER

(357-24521-10-00)

Unavailable

15

. GASKET

357-24522-10-00

Unavailable

16

. NET, FILTER 2

357-24515-10-00

Unavailable

17

. NUT

2N3-24531-00-00

Unavailable

18

. GASKET

2N3-24532-00-00

Unavailable

19

BODY, CAP

2A6-24611-00-00

Unavailable

20

PACKING, CAP

1W1-24612-00-00

Unavailable

21

HOSE (L600)

90445-083J5-00

Unavailable

22

HOSE (L420)

90445-092K1-00

Unavailable

23

CLIP 101235600

90467-08003-00

Unavailable

24

DAMPER,LOCATING 2

5L9-F4182-00-00

Unavailable
