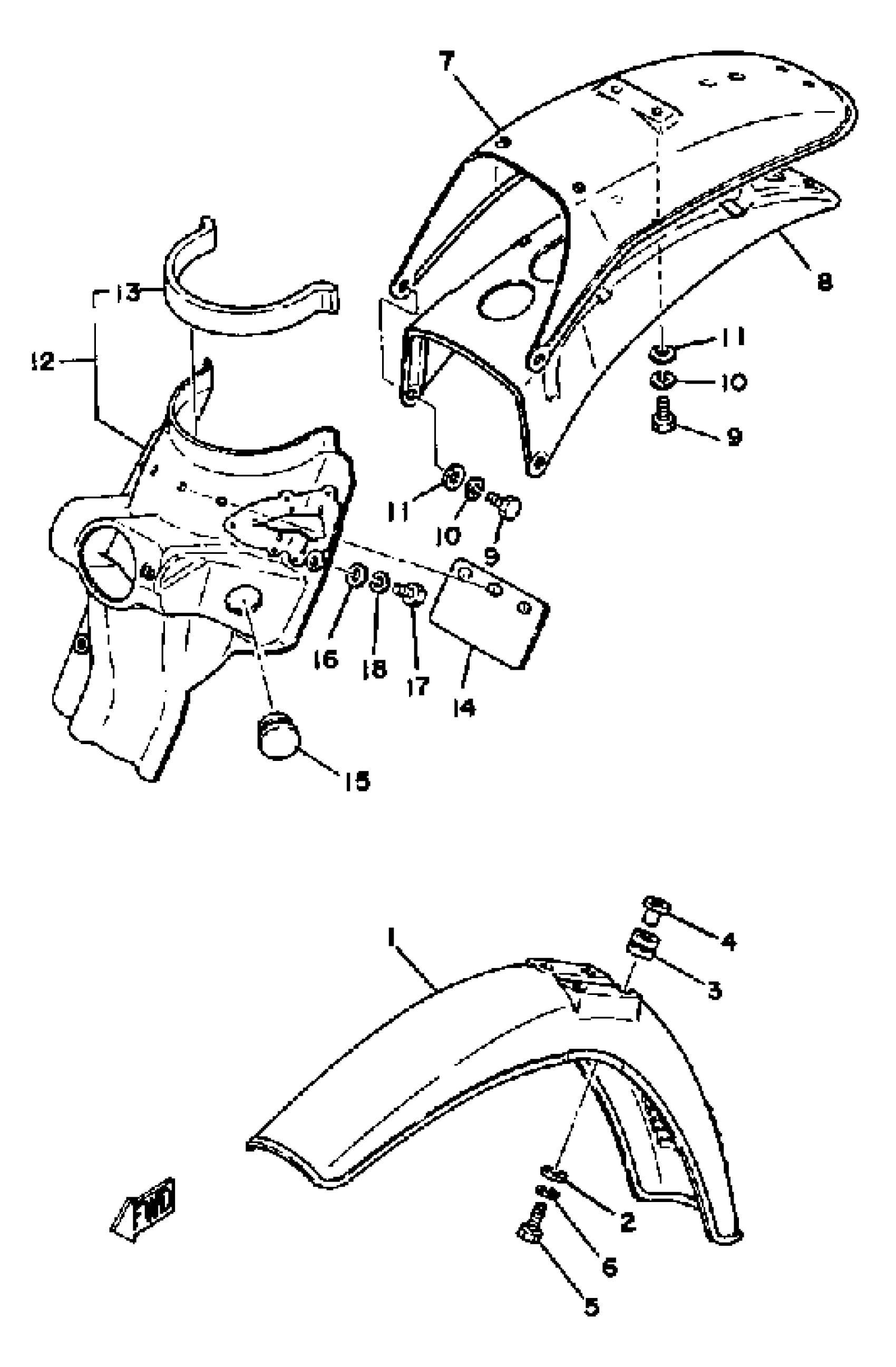

Yamaha DT175H (DT175H) 1981 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3J4-21511-00-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

GROMMET

90480-14198-00

$9.49

4

COLLAR

90387-06158-00

$8.49

5

BOLT, HEXAGON

97017-06025-00

$4.24

6

WASHER, SPRING

92995-06100-00

Unavailable

7

FENDER, REAR

2A8-21611-80-00

Unavailable

8

BRACKET,FENDER

4J3-21617-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

GUARD, MUD

(99999-01151-00)

Unavailable

13

DAMPER

2A6-21639-00-00

Unavailable

14

FLAP

1M1-21621-00-00

$16.49

15

GROMMET

90480-01254-00

Unavailable

16

WASHER, PLATE

90201-06380-00

$0.60

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

18

WASHER, SPRING

92995-06100-00

Unavailable
