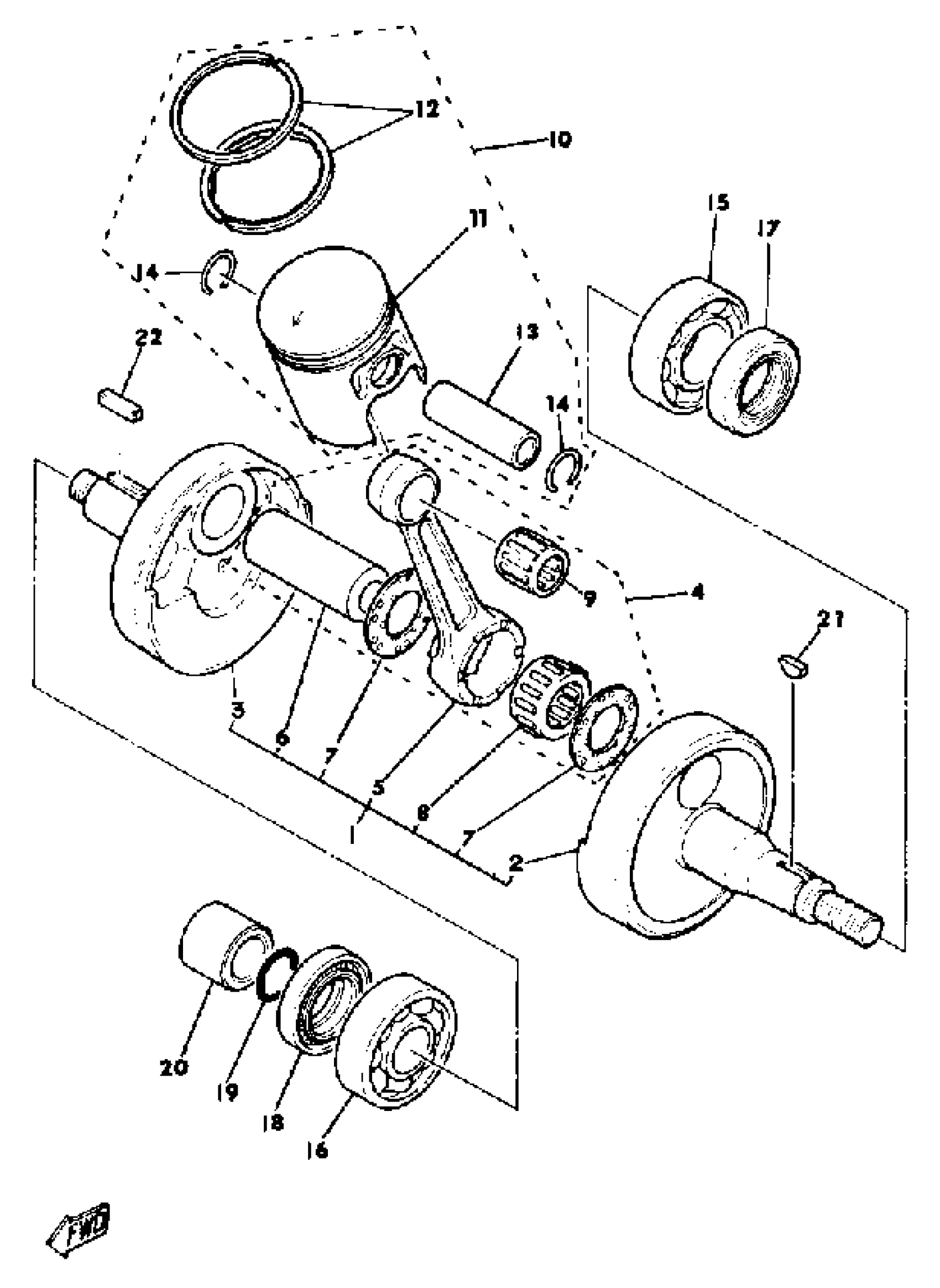

Yamaha DT175H (DT175H) 1981 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

2N4-11400-00-00

Unavailable

2

CRANK (L.H)

1W1-11412-01-00

Unavailable

3

CRANK (R.H)

1W1-11422-01-00

Unavailable

3

CONNECTING ROD ASSEMBLY

(3U5-11650-00-00)

Unavailable

5

. ROD, CONNECTING 1

25V-11651-00-00

Unavailable

6

PIN, CRANK 1

3M5-11681-00-00

$24.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

9

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

$26.99

10

PISTON KIT STD

(3J1-11630-00-00)

Unavailable

11

PISTON STD

3J1-11631-00-96

Unavailable

12

PISTON RINGSET STD

2N5-11610-00-00

Unavailable

13

PIN, PISTON

251-11633-00-00

$29.99

14

CIRCLIP (1L9)

93450-17044-00

$8.49

15

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

16

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

17

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

18

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

19

O-RING(3KX)

93210-180A6-00

Unavailable

20

COLLAR, DISTANCE (525)

90387-20488-00

Unavailable

21

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

22

PISTON RING SET (1ST O/S)

2N5-11610-10-00

Unavailable

22

PISTON RINGSET 2ND

2N5-11610-20-00

Unavailable

22

PISTON RINGSET 3RD

2N5-11610-30-00

Unavailable

22

PISTON RINGSET 4TH

2N5-11610-40-00

Unavailable

22

PISTON KIT 1ST

(3J1-11630-10-00)

Unavailable

22

PISTON KIT 2ND

(3J1-11630-20-00)

Unavailable

22

PISTON KIT 3RD

(3J1-11630-30-00)

Unavailable

22

PISTON KIT 4TH

3J1-11630-40-00

Unavailable

22

PISTON 1 O/S 0.25

3J1-11635-00-00

Unavailable

22

PISTON 3 O/S 0.75

3J1-11637-00-00

Unavailable

22

PISTON 4 O/S 1.00

3J1-11638-00-00

Unavailable

22

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
