Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

SEAL, DUST

164-23462-00-00

$7.99

3

CROWN, HANDLE

(3J0-23435-00-98)

Unavailable

4

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

5

BOLT, FLANGE

95817-08055-00

$4.21

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

7

BOLT, FLANGE

95817-10060-00

$7.49

8

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

10

BOLT, FLANGE

95817-08035-00

$9.49

11

RACE, BALL 2

B6E-23412-00-00

$13.49

12

BALL

93501-04011-00

$8.49

13

RACE, BALL 1

BP2-23411-00-00

$11.49

14

RACE, BALL 2

BP2-23412-00-00

$7.49

15

BALL

93503-16003-00

$2.72

16

COVER BALL RACE

10V-23416-01-00

Unavailable

17

NUT

90179-25004-00

Unavailable

18

HOLDER, CABLE 1

2A6-23318-00-00

Unavailable

19

HOLDER, CABLE 2

2A6-23319-00-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

GUIDE, CABLE

(2N4-23389-00-00)

Unavailable

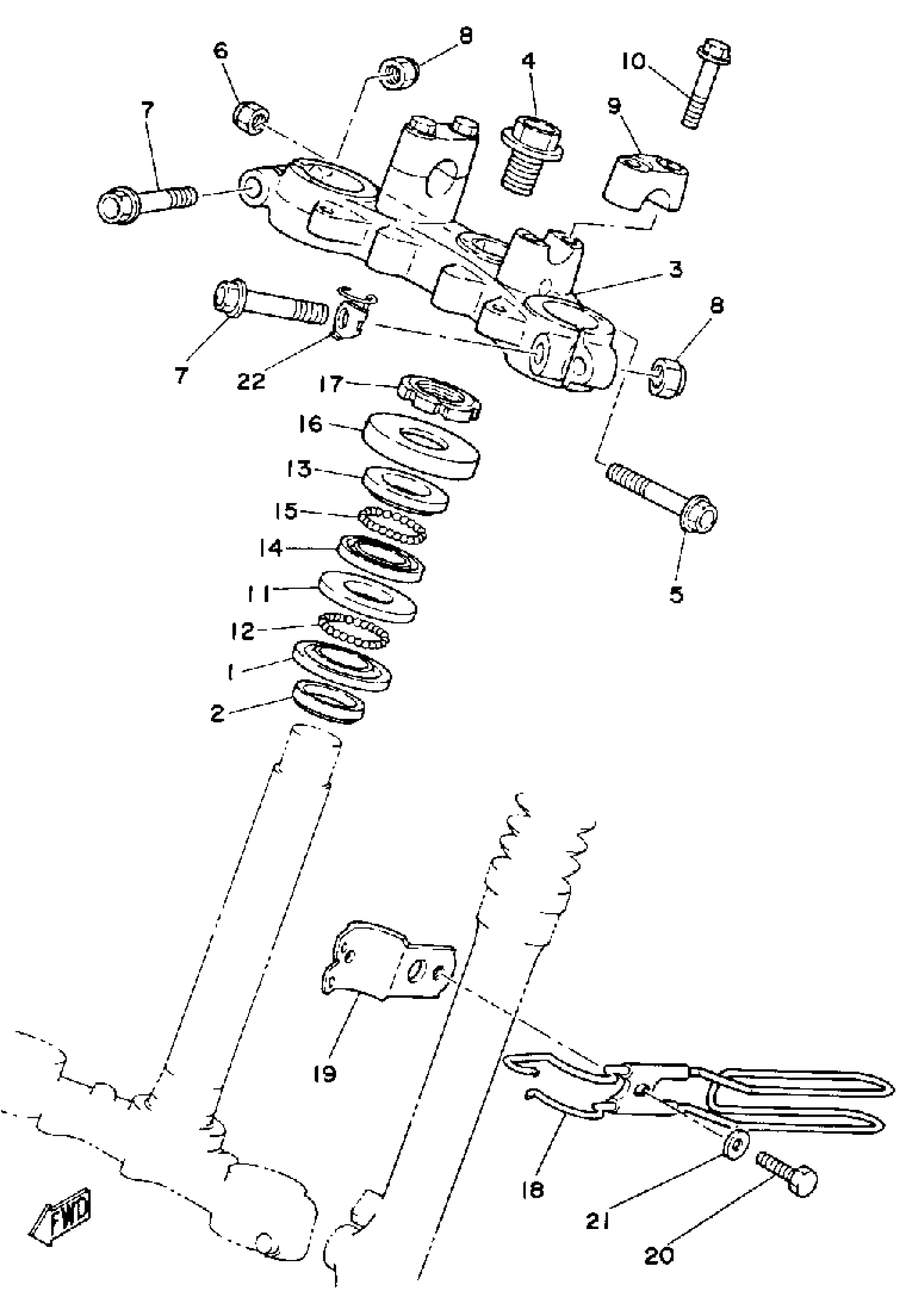

Yamaha DT175G (DT175G) 1980 STEERING Diagram

RACE, BALL 1

SEAL, DUST

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

BOLT, FLANGE

NUT, SELF-LOCKING (3Y2)

BOLT, FLANGE

NUT, SELFLOCKING (533 FRAME)

HOLDER, HANDLE UPPER

BOLT, FLANGE

RACE, BALL 2

BALL

RACE, BALL 1

RACE, BALL 2

BALL

COVER BALL RACE

NUT

HOLDER, CABLE 1

HOLDER, CABLE 2

BOLT, HEXAGON

WASHER, PLAIN (646)

GUIDE, CABLE
