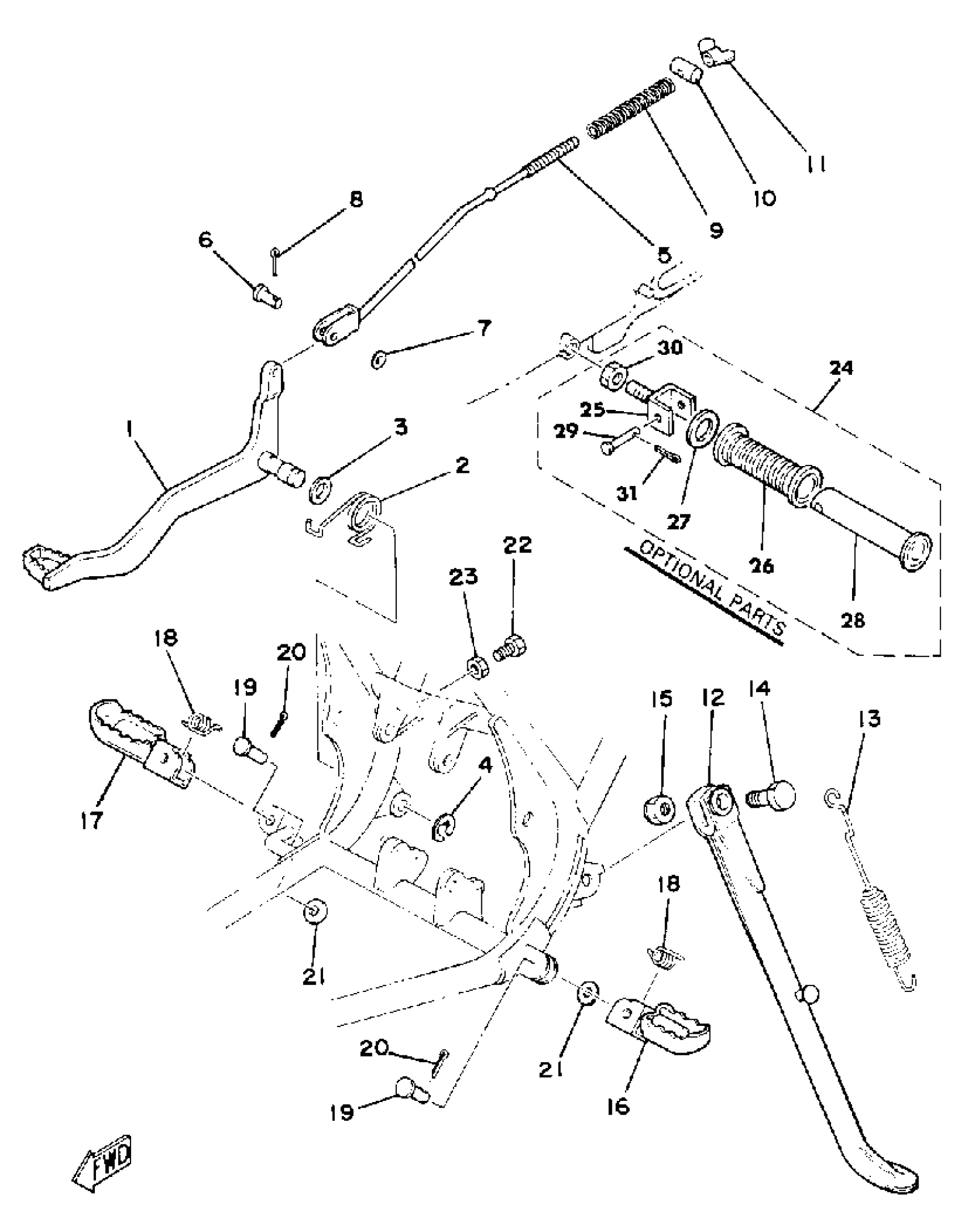

Yamaha DT175G (DT175G) 1980 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2A6-27211-00-00

Unavailable

2

SPRING, TENSION (2A6)

90508-32354-00

$8.49

3

WASHER PLATE 611441260000

90201-14212-00

$8.49

4

CIRCLIP (137)

93430-10015-00

$9.49

5

ROD, BRAKE

1W2-27231-00-00

Unavailable

6

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

PIN, COTTER

91490-25020-00

$3.19

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT (25K)

90179-06411-00

$8.49

12

STAND, SIDE

1W1-27311-10-00

Unavailable

13

SPRING (434)

90507-29008-00

$28.99

14

BOLT

90109-10473-00

$8.49

15

NUT, U

90185-10037-00

$9.49

16

FOOTREST 1

22W-27411-01-90

Unavailable

17

FOOTREST 2

22W-27421-01-90

Unavailable

18

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

19

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

20

PIN, COTTER

91490-25020-00

$3.19

21

.. WASHER, PLATE

92990-08600-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

NUT(650)

95380-06700-00

Unavailable

24

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

25

. BRACKET 1

120-27432-02-00

Unavailable

26

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

27

WASHER, PLATE (888)

90201-20279-00

Unavailable

28

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

29

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

30

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

31

PIN, COTTER

91490-16020-00

Unavailable
