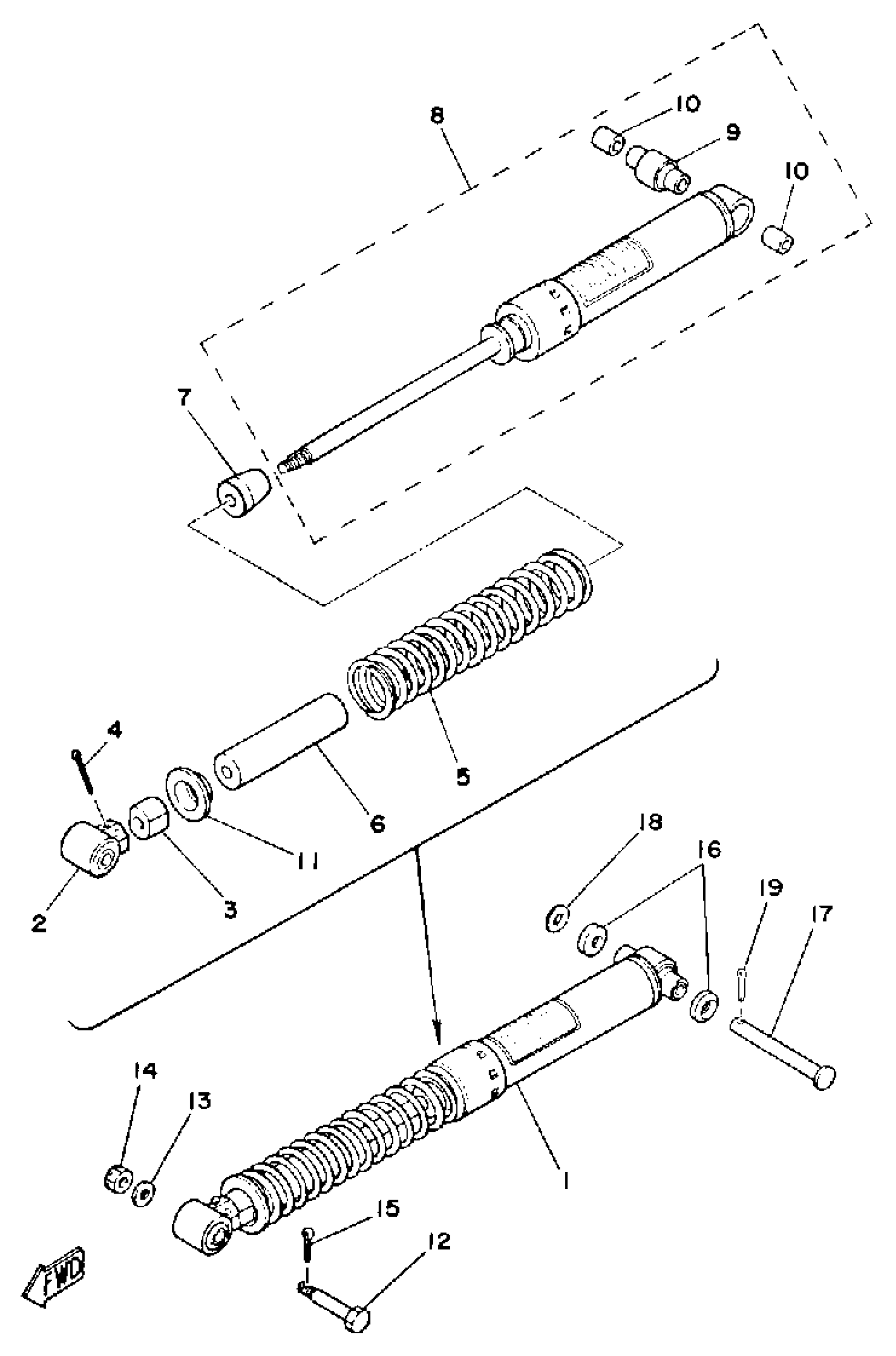

Yamaha DT175G (DT175G) 1980 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

(2N4-22210-01-00)

Unavailable

2

BRACKET, UPPER

(1M1-22219-01-00)

Unavailable

3

SEAT, SPRING UPPER

(2N4-22213-00-00)

Unavailable

4

PIN, COTTER (AM5)

91490-30045-00

$8.99

5

SPRING, COMPRESSION

(90501-90514-00)

Unavailable

6

SLEEVE, ROD

(2N4-22496-00-00)

Unavailable

7

BUMP, STOP

(2A6-22493-00-00)

Unavailable

8

DAMPER SUB-ASSEMBLY.

(2N4-22401-01-00)

Unavailable

9

.. BUSH, SHOCK ABS LWR

1W1-22226-00-00

Unavailable

10

BUSH, SOLID (1M1)

90380-12051-00

$15.99

11

GUIDE, SPRING 1

(2N4-22214-00-00)

Unavailable

12

BOLT (1M1)

90109-10453-00

Unavailable

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

14

NUT, CASTLE

95307-10900-00

Unavailable

15

PIN, COTTER

91490-20025-00

$1.99

16

COVER, THRUST

1W1-22128-00-00

Unavailable

17

PIN,CLEVIS

90240-12059-00

Unavailable

18

WASHER, PLATE(663)

92990-12600-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable
