Description

Price

1

FRAME

(3J0-21110-00-33)

Unavailable

2

BOLT (1W1)

90105-08099-00

$5.60

3

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

4

BOLT

90105-10037-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

PROTECTOR, ENGINE

(2A6-21471-00-90)

Unavailable

9

BOLT (661)

97013-06012-00

$5.60

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

HELMET HANGER ASSY

5H0-21308-01-00

$84.99

12

UNAVAILABLE IN PRICE BOOK

92703-06018-00

Unavailable

13

BOX

3J0-21170-00-00

Unavailable

14

BOLT (661)

97013-06012-00

$5.60

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

TOOL KIT

2A6-W2810-00-00

Unavailable

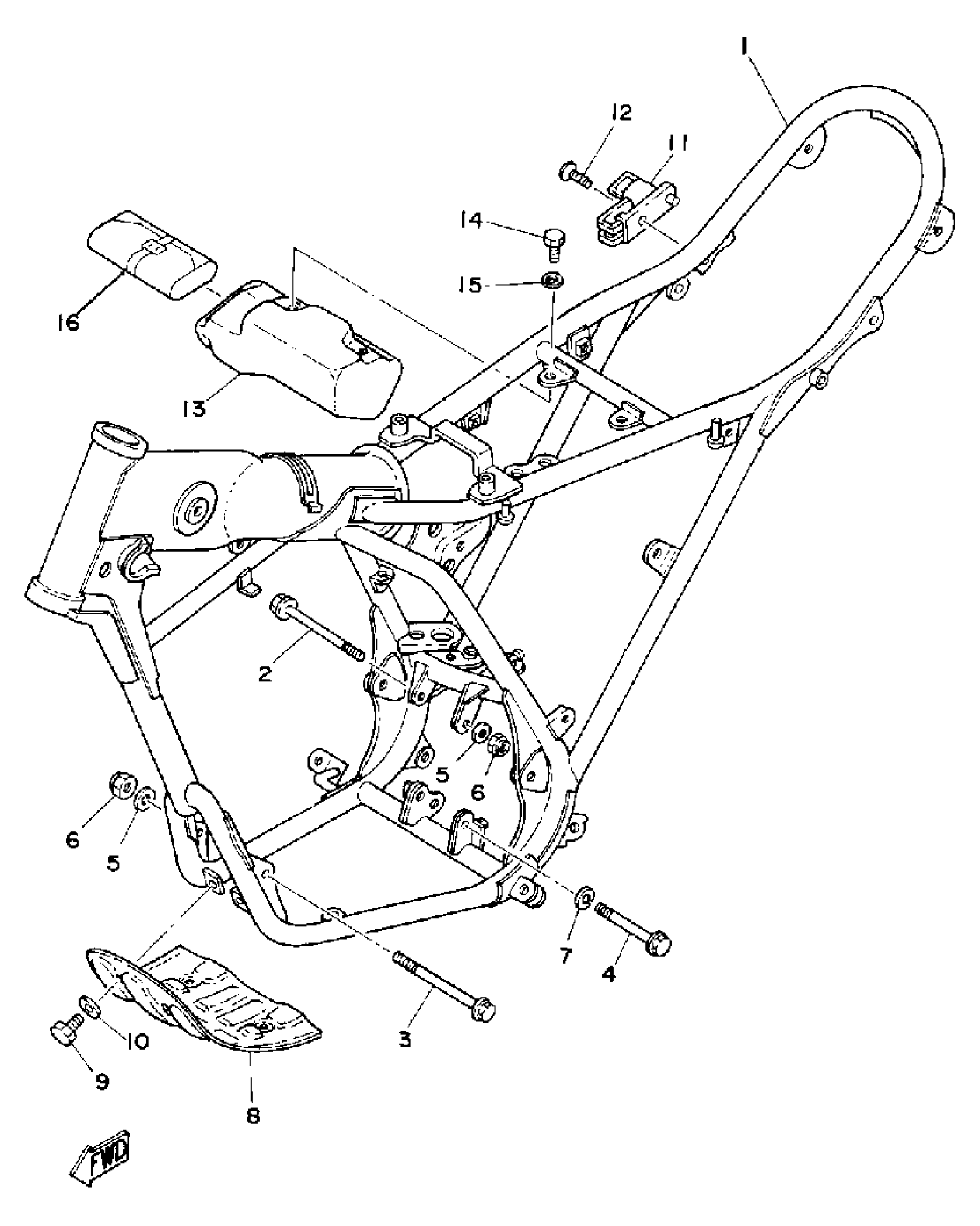

Yamaha DT175G (DT175G) 1980 FRAME Diagram

FRAME

BOLT (1W1)

BOLT, WASHER BASED (401)

BOLT

WASHER, PLAIN

NUT, SELF-LOCKING (3Y2)

YBS67-10 WASHER, SPRING

PROTECTOR, ENGINE

BOLT (661)

WASHER, PLAIN (646)

HELMET HANGER ASSY

UNAVAILABLE IN PRICE BOOK

BOX

BOLT (661)

WASHER, PLAIN (646)

TOOL KIT
