1979 Yamaha DT175F (DT175F) Transmission Diagram

← All diagrams

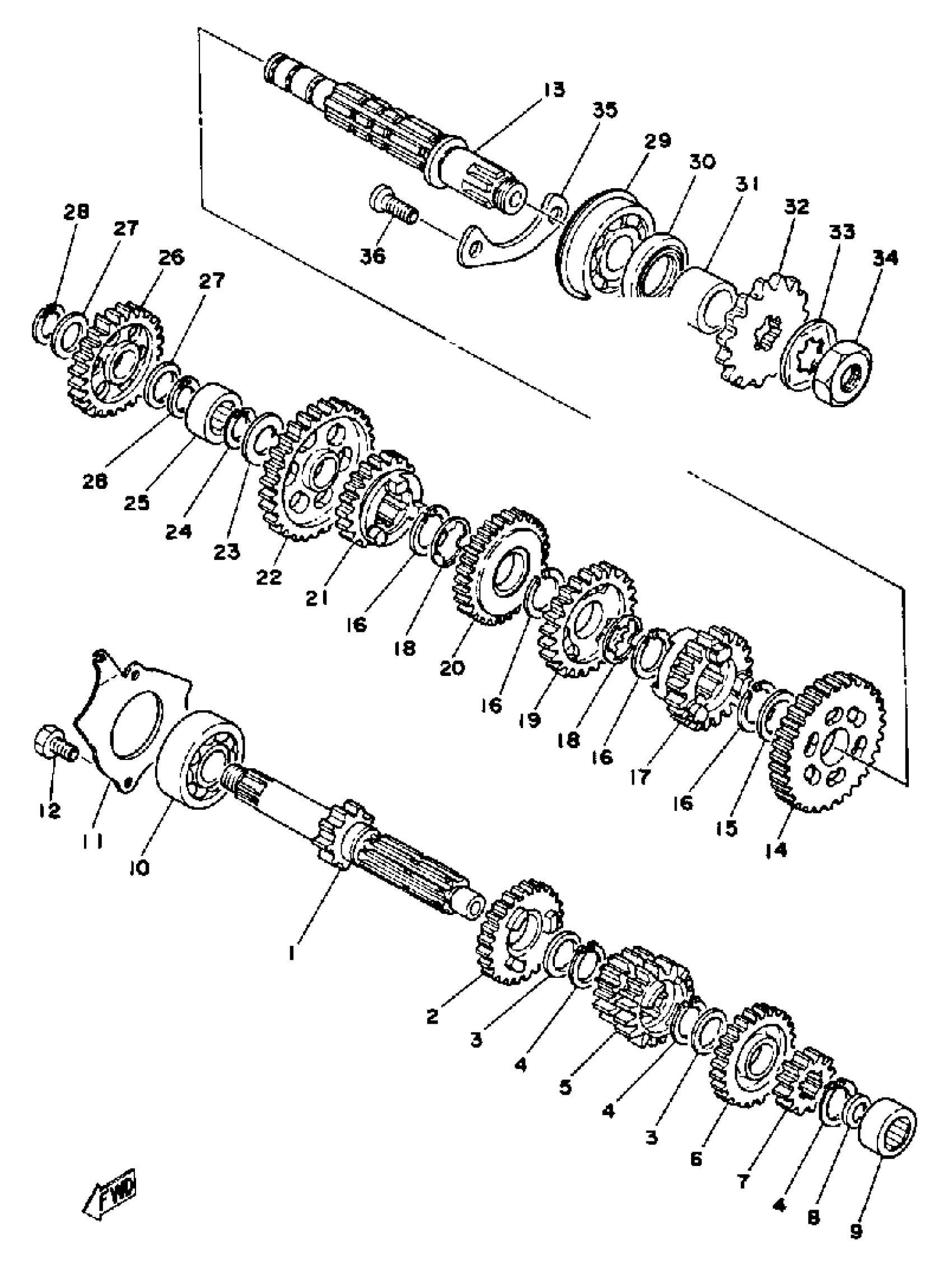

Find the part on the Transmission diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha DT175F (DT175F) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

2A6-17411-00-00

1
Out of stock

2

GEAR, 5TH PINION

1W2-17151-00-00

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1
Out of stock

5

GEAR, 3RD PINION

2A6-17131-00-00

1
Out of stock

6

GEAR, 6TH PINION

1W2-17161-00-00

1
Out of stock

7

GEAR, 2ND PINION

2A6-17121-00-00

1
Out of stock

8

WASHER (566)

90201-15701-00

1
Out of stock

9

BRG,CYL-CAL ROLLER 16G KY (1W1

93311-41530-00

1
Out of stock

10

BEARING(4HM)

93306-30317-00

1
Out of stock

11

PLATE, BEARING COVER

1W1-17471-01-00

1
Out of stock

12

BOLT (661)

97013-06012-00

1
Out of stock

13

AXLE, DRIVE

2A6-17421-00-00

—
Out of stock

14

GEAR, 2ND WHEEL (2A6-17221-00)

2A6-17221-01-00

1
Out of stock

15

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

16

CIRCLIP (537)

93410-22039-00

—
Out of stock

17

GEAR, 6TH WHEEL

2A6-17261-00-00

1
Out of stock

18

WASHER (537)

90209-18135-00

—
Out of stock

19

GEAR, 4TH WHEEL

1W2-17241-00-00

1
Out of stock

20

GEAR, 3RD WHEEL

2A6-17231-00-00

1
Out of stock

21

GEAR, 5TH WHEEL

2A6-17251-00-00

1
Out of stock

22

GEAR, 1ST WHEEL (2A6-17211-00)

2A6-17211-01-00

1
Out of stock

23

WASHER (566)

90201-15701-00

1
Out of stock

24

UNAVAILABLE IN PRICE BOOK (15 O SPECIAL)

92440-15012-00

1
Out of stock

25

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

26

GEAR, KICK IDLE

525-15651-00-00

—
Out of stock

27

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

—
Out of stock

28

CIRCLIP

93440-15012-00

—
Out of stock

29

BRG,R-B 6304 52MM 150G NT

93306-30411-00

—
Out of stock

30

OIL SEAL (26X38X5-181)

93102-26042-00

—
Out of stock

31

COLLAR (3V3)

90387-202A0-00

—
Out of stock

32

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

—
Out of stock

33

WASHER, LOCK (1L8)

90215-16127-00

—
Out of stock

34

NUT (1L8)

90179-16226-00

—
Out of stock

35

PLATE 2, BEARING COVER

1W1-15381-00-00

—
Out of stock

36

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
