1979 Yamaha DT175F (DT175F) Shift Shaft Diagram

← All diagrams

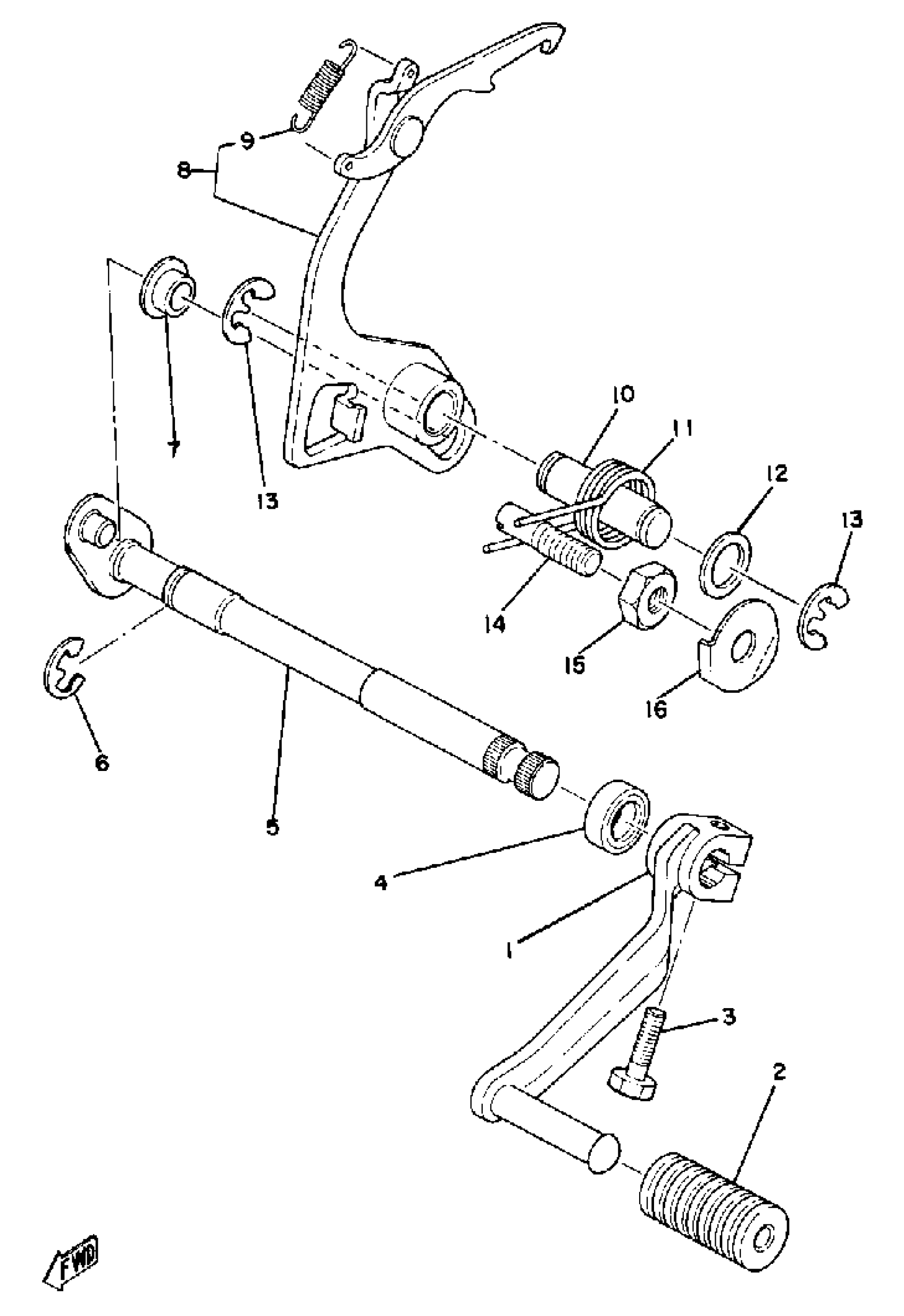

Find the part on the Shift Shaft diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha DT175F (DT175F) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT PEDAL ASSY

2A6-18110-00-00

—

$35.52

In stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

OIL SEAL

93101-12173-00

1
Out of stock

5

. SHIFT SHAFT ASSEMBLY 1

1W1-18101-03-00

1
Out of stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

ROLLER, CHANGE LEVER

401-18178-00-00

1

$17.98

In stock

8

SHIFT LEVER ASSY

4F2-18120-00-00

—

$40.88

In stock

9

SPRING, TENSION (1W1)

90506-08155-00

1

$9.17

In stock

10

—

$4.86

In stock

11

SPRING, TORSION (1W1)

90508-32349-00

1

$8.72

In stock

12

WASHER (692)

90201-12M34-00

1

$3.47

In stock

13

CIRCLIP

99006-10600-00

1

$6.91

In stock

14

SCREW (1W1)

90149-08111-00

—

$3.74

In stock

15

NUT (583)

90170-08193-00

1
Out of stock

16

WASHER LOCK 248181390000

90215-08014-00

—

$5.38

In stock
