1979 Yamaha DT175F (DT175F) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

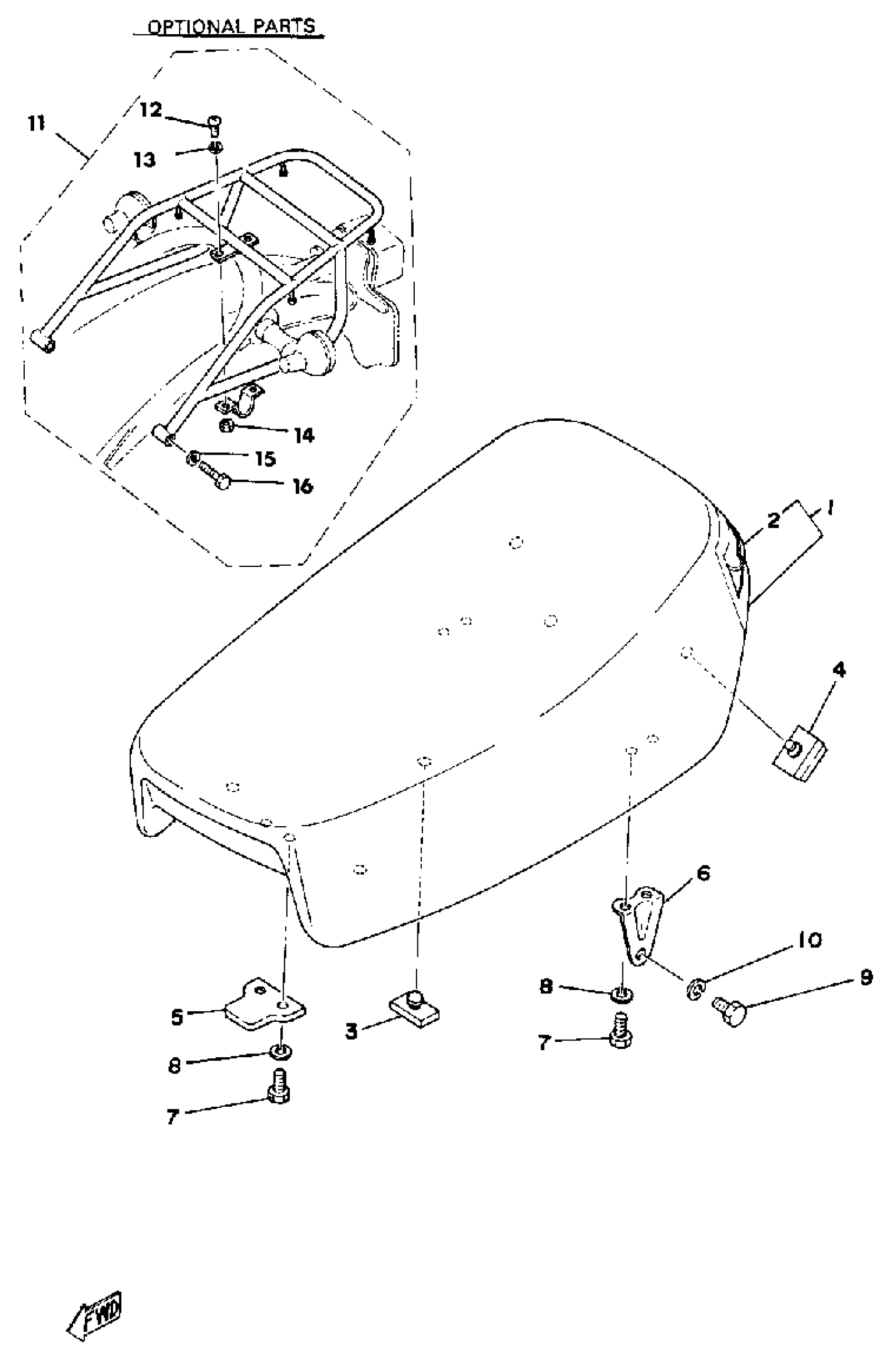

1979 Yamaha DT175F (DT175F) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASSEMBLY (2N4-24770-90)

2N4-W2473-00-00

1
Out of stock

2

. COVER, SM-DBL SEAT

2N4-24771-00-00

1
Out of stock

3

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

4

DAMPER, SEAT

214-24724-00-00

1

$6.72

In stock

5

BRACKET, SEAT

1M1-24748-00-00

1
Out of stock

6

BRACKET, SEAT REAR

2A6-24738-00-00

—

$15.78

In stock

7

BOLT (661)

97013-06012-00

1

$4.71

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT(62E)

97013-08012-00

—

$2.48

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

UNAVAILABLE IN PRICE BOOK

90-89055-08-9]

1
Out of stock

12

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

BOLT

97013-08045-00

—
Out of stock
