1979 Yamaha DT175F (DT175F) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

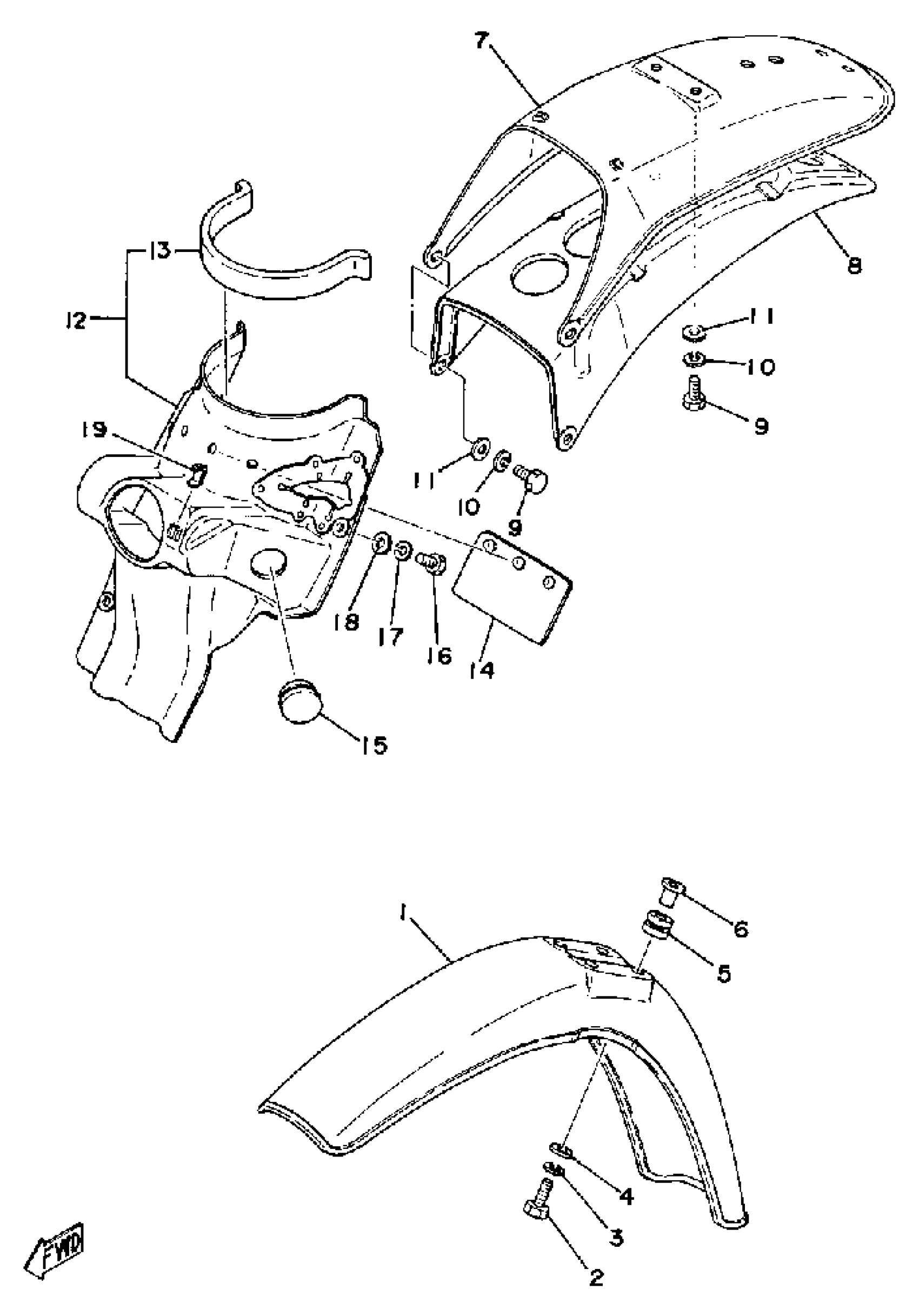

1979 Yamaha DT175F (DT175F) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

(2N5-21511-10-20)

1
Out of stock

1

FENDER, FRONT

3V6-21511-10-00

1
Out of stock

2

BOLT, HEXAGON

97017-06025-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

WASHER, PLATE

90201-06380-00

1
Out of stock

5

GROMMET

90480-14198-00

1
Out of stock

6

COLLAR

90387-06158-00

1
Out of stock

7

FENDER, REAR

2A8-21611-A0-00

1
Out of stock

7

FENDER, REAR

2N5-21611-10-20

1
Out of stock

8

BRACKET,FENDER

4J3-21617-00-00

1
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

12

GROMMET

90480-01254-00

1
Out of stock

12

GUARD, MUD

(99999-01151-00)

1
Out of stock

13

DAMPER

2A6-21639-00-00

—
Out of stock

14

FLAP

1M1-21621-00-00

—
Out of stock

15

GROMMET

(90480-01230-00)

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

WASHER, PLATE

90201-06380-00

1
Out of stock

19

UNAVAILABLE IN PRICE BOOK

2A-62163-70-0]

1
Out of stock
