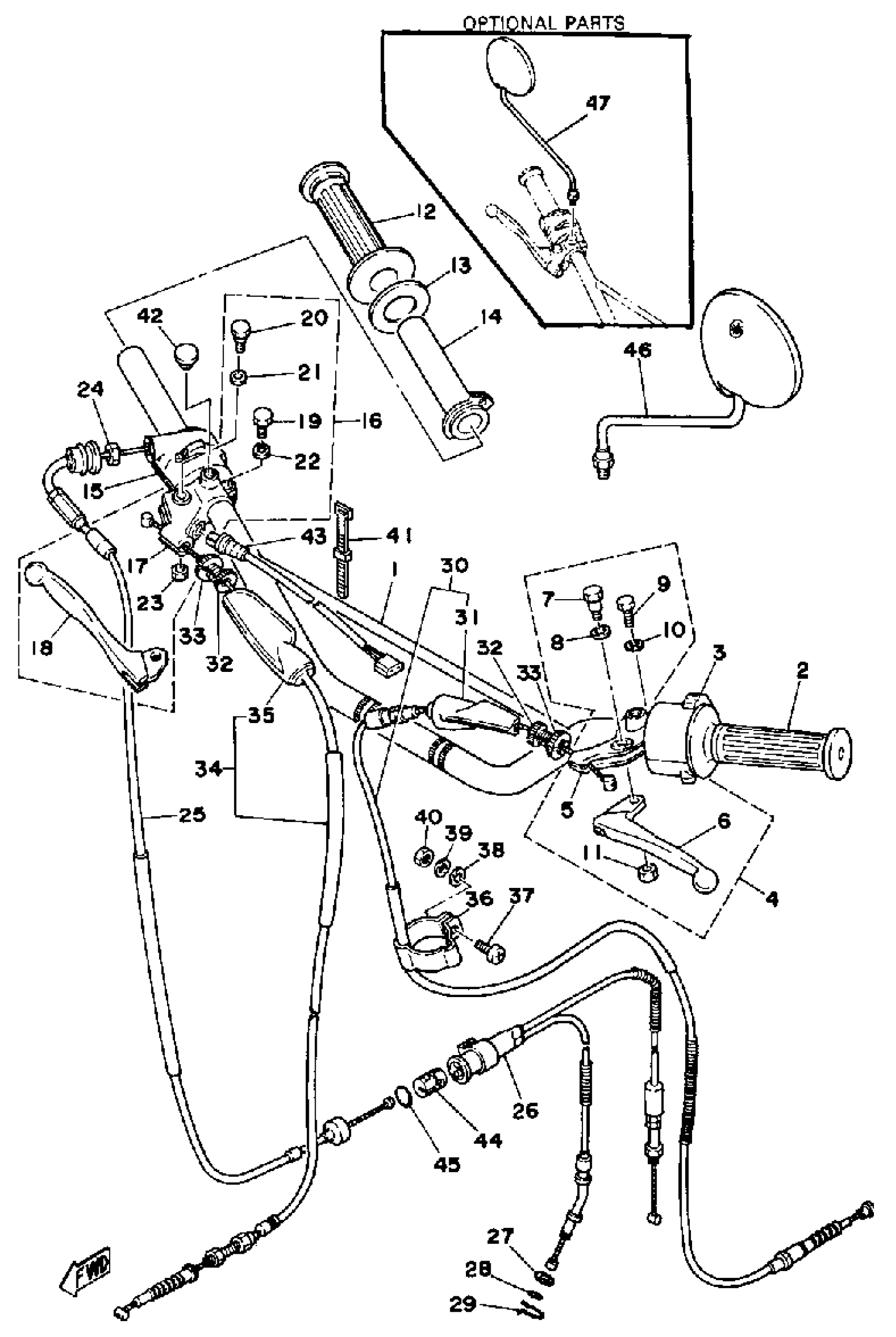

Yamaha DT175F (DT175F) 1979 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLE

3G7-26111-00-00

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

SWITCH, HANDLE 3

1M1-83973-50-00

Unavailable

4

LEVER HOLDER ASSEMBLY 1

498-82910-20-00

Unavailable

5

HOLDER, LEVER 1

3Y6-82911-00-00

$55.99

6

LEVER, HANDLE (L.H)

1J3-83912-20-00

$44.99

7

BOLT(3GB)

90109-061F3-00

$7.49

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

9

BOLT, HEXAGON

97013-06022-00

$0.90

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

GRIP (R.H)

1A0-26242-01-00

$39.99

13

RING, LEAF

1M1-26249-01-00

$7.99

14

TUBE, GUIDE.

434-26243-00-00

$49.99

15

SWITCH, HANDLE 1

1R6-83976-01-00

$66.99

16

LEVER HOLDER ASSEMBLY R (2A6-82920-90)

2A6-W8292-01-00

Unavailable

17

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

Unavailable

18

LEVER (R.H)

2A6-83922-00-00

Unavailable

19

BOLT, HEXAGON

97013-06022-00

$0.90

20

BOLT(3GB)

90109-061F3-00

$7.49

21

WASHER, PLATE 1562722600

90201-08083-00

$9.49

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, SELF-LOCKING

95617-06100-00

$8.49

24

NUT, HEXAGON

90170-10038-00

Unavailable

25

CABLE, THROTTLE 1

2A6-26311-00-00

Unavailable

26

CABLE, THROTTLE 2

2A6-26312-00-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

O-RING (214)

93210-07100-00

Unavailable

29

CIRCLIP (2A6)

90468-08086-00

Unavailable

30

CABLE, CLUTCH

2A6-26335-01-00

Unavailable

31

COVER, LEVER

498-26372-00-00

Unavailable

32

BOLT

90123-08002-00

Unavailable

33

NUT

90179-08030-00

Unavailable

34

CABLE, BRAKE (1165MM)

2N4-26341-01-00

Unavailable

35

COVER, LEVER

498-26372-00-00

Unavailable

36

CLAMP

2A6-26397-00-00

Unavailable

37

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

38

WASHER, PLAIN (646)

92990-05600-00

Unavailable

39

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

40

NUT, HEXAGON (663)

95380-05600-00

Unavailable

41

BAND, SWITCH CORD

437-83936-01-00

Unavailable

42

PLUG (341-26329-00)

90338-09012-00

Unavailable

43

FRONT STOP SWITCH ASSY

1M1-83980-31-00

Unavailable

44

PIECE, CONNECTING

1M1-26263-00-00

Unavailable

45

O-RING (260)

93210-10118-00

Unavailable

46

REAR VIEW MIRROR ASSY(LEFT)

1Y1-26290-10-00

Unavailable

47

REAR VIEW MIRROR ASSY(RIGHT)

1Y1-26290-00-00

Unavailable
