1979 Yamaha DT175F (DT175F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

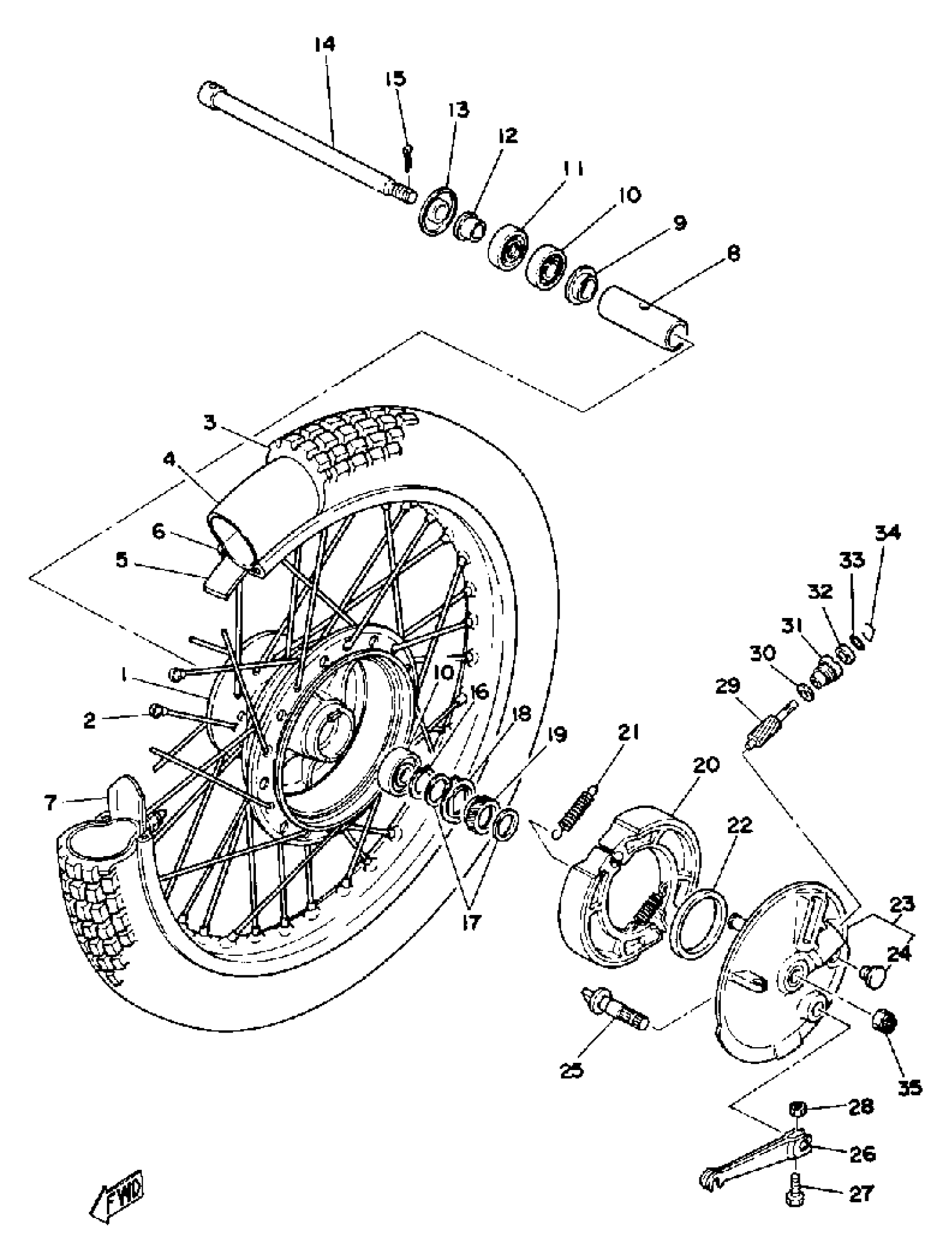

1979 Yamaha DT175F (DT175F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

2A6-25111-00-98

1
Out of stock

2

SPOKE SET

2A6-25104-01-00

—

$107.49

In stock

3

TIRE (MCS 2.75-21 4PR TW27)

94127-212X0-00

1
Out of stock

4

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

5

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

6

RIM

94416-21006-00

—

$134.94

In stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

BEARING

93306-30102-00

1
Out of stock

11

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

12

COLLAR (462)

90387-12265-00

1

$12.85

In stock

13

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

14

SHAFT, WHEEL

353-25381-00-00

1

$22.37

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

17

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

18

CLUTCH, METER

183-25149-00-00

—
Out of stock

19

GEAR, DRIVE

37A-25135-00-00

1
Out of stock

20

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

21

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

22

SEAL,OIL

93105-47007-00

—
Out of stock

23

BRAKE SHOE PLT ASSEMBLY (2N4-25120-00-98)

2N4-25016-01-98

1
Out of stock

24

GROMMET (397)

90480-10068-00

—

$6.77

In stock

25

CAMSHAFT

2RH-25351-00-00

—

$29.14

In stock

26

LEVER, CAMSHAFT 1

5H0-25155-00-00

1
Out of stock

27

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

28

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

29

GEAR, METER

37A-25138-00-00

1
Out of stock

30

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

31

BUSHING

109-25136-00-00

—

$8.78

In stock

32

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

33

O-RING (26H)

93210-14579-00

—

$5.69

In stock

34

RING, STOP

102-25137-00-00

—
Out of stock

35

NUT 3532518200

90171-10004-00

—

$5.32

In stock
