FRONT FORK

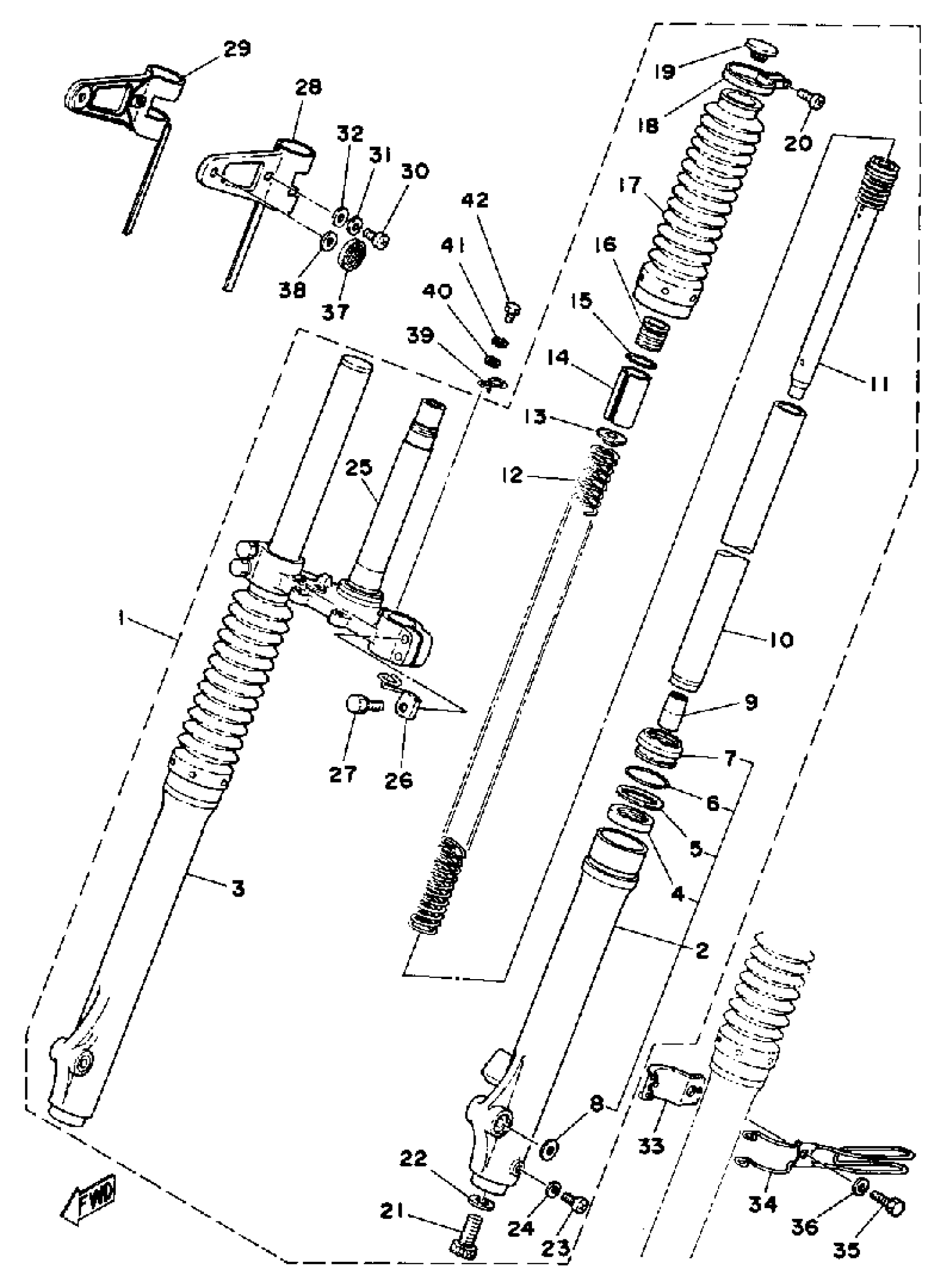

1979 Yamaha DT175F (DT175F) Front Fork Diagram
Find the part on the Front Fork diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY
(2N4-23101-00-00)
2
TUBE, OUTER 1
(2K5-23126-00-00)
3
TUBE, OUTER 2
(2K5-23136-00-00)
5
.. WASHER, OIL SEAL
2K5-23146-00-00
8
WASHER, FELT
(2K5-23165-00-00)
9
SPINDLE
2K5-23173-00-00
10
. INNER TUBE 1
2N4-23110-00-00
11
CYLINDER, FRTFRK
(2K5-23170-00-00)
12
SPRING, FRONT FORK
(2N4-23141-00-00)
13
. SEAT, SPRING UPPER
256-23142-60-00
14
SPACER
(256-23118-60-00)
15
PACKING(O-RING)
146-23114-00-00
16
BOLT, CAP
1X0-23111-00-00
17
. BOOT, FRONT FORK
2K5-23191-M0-00
19
CAP
1X0-23168-00-00
25
UNDER BRACKET
(2N4-23340-00-33)
26
HOLDER, CABLE
(2N4-23317-00-00)
27
. BOLT, HEXAGON SOCKET HEAD
5X6-23181-L0-00
28
STAY, HEADLIGHT 1
2N4-84118-00-00
29
STAY, HEADLIGHT 2
2N4-84119-00-00
33
HOLDER, CABLE 2
2A6-23319-00-00
34
HOLDER, CABLE 1
2A6-23318-00-00
37
REFLECTOR, FRONT 1
355-85111-01-00
39
UNAVAILABLE IN PRICE BOOK
2A-68359-50-0]
