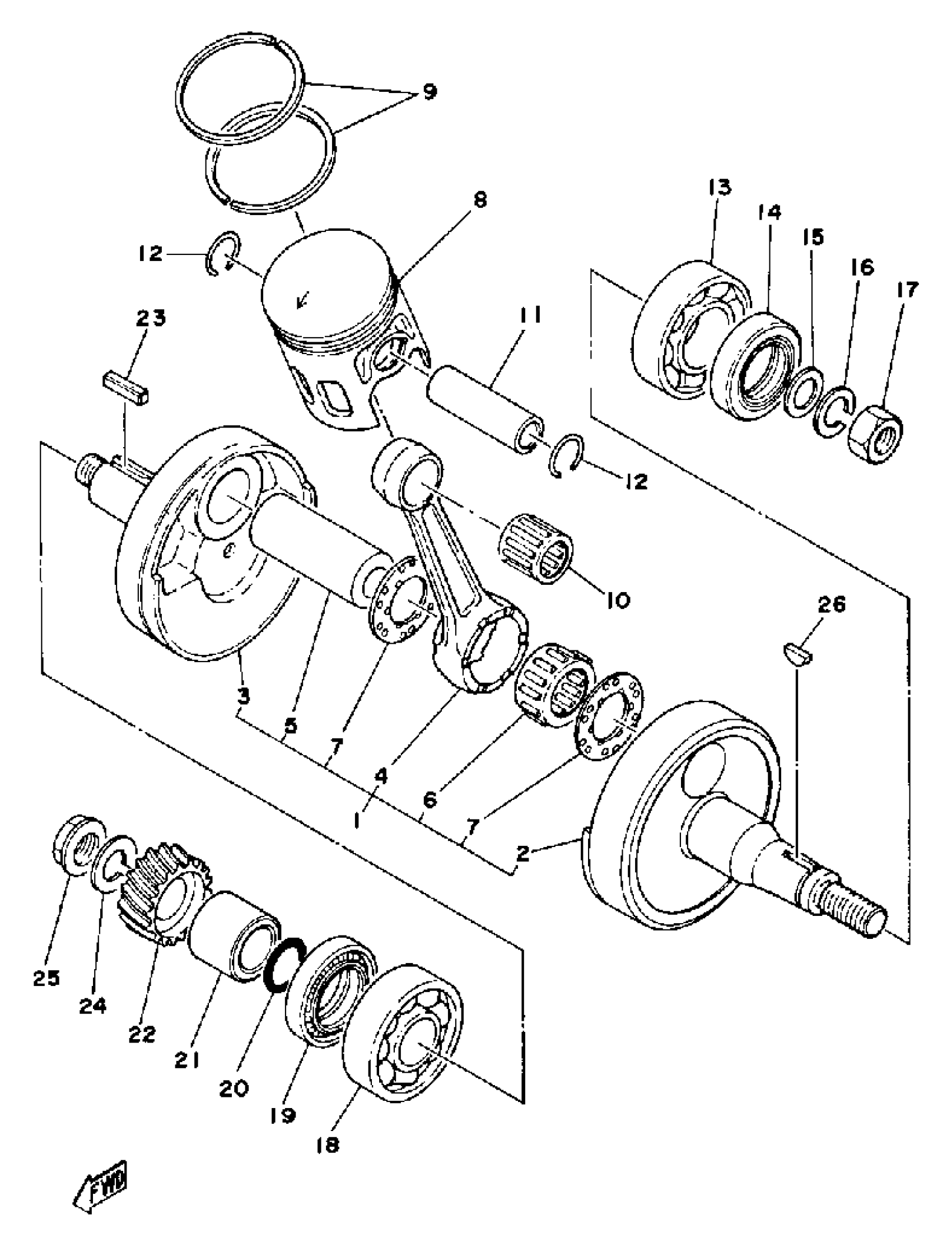

Yamaha DT175F (DT175F) 1979 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

2N4-11400-00-00

Unavailable

2

CRANK (L.H)

1W1-11412-01-00

Unavailable

3

CRANK (R.H)

1W1-11422-01-00

Unavailable

4

. ROD, CONNECTING 1

25V-11651-00-00

Unavailable

5

PIN, CRANK 1

3M5-11681-00-00

$24.99

6

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

PISTON STD (2A7-11631-00-96)

2N5-11631-00-96

Unavailable

8

PISTON 1 O/S 0.25 (2A7-11635-00)

2N5-11635-00-00

Unavailable

8

PISTON (2ND O/S)

2N5-11636-00-00

Unavailable

8

PISTON 3 O/S 0.75 (2A7-11637-00)

2N5-11637-00-00

Unavailable

8

PISTON 4 O/S 1.00 (2A7-11638-00)

2N5-11638-00-00

Unavailable

9

PISTON RINGSET STD

2N5-11610-00-00

Unavailable

9

PISTON RING SET (1ST O/S)

2N5-11610-10-00

$67.99

9

PISTON RINGSET 2ND

2N5-11610-20-00

Unavailable

9

PISTON RINGSET 3RD

2N5-11610-30-00

Unavailable

9

PISTON RINGSET 4TH

2N5-11610-40-00

Unavailable

10

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

Unavailable

11

PIN, PISTON

251-11633-00-00

Unavailable

12

CIRCLIP (1L9)

93450-17044-00

Unavailable

13

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

14

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

15

WASHER, PLATE (583)

90201-12593-00

Unavailable

16

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

17

NUT(55K)

90170-12347-00

Unavailable

18

BEARING(1YW)

93306-20461-00

Unavailable

19

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

20

O-RING(3KX)

93210-180A6-00

Unavailable

21

COLLAR, DISTANCE (525)

90387-20488-00

Unavailable

22

GEAR, PRIMARY DRIVE

4FU-16111-00-00

Unavailable

23

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable

24

WASHER, SPRING (1W1)

90204-12007-00

Unavailable

25

NUT(1EE)

90179-12659-00

Unavailable

26

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
