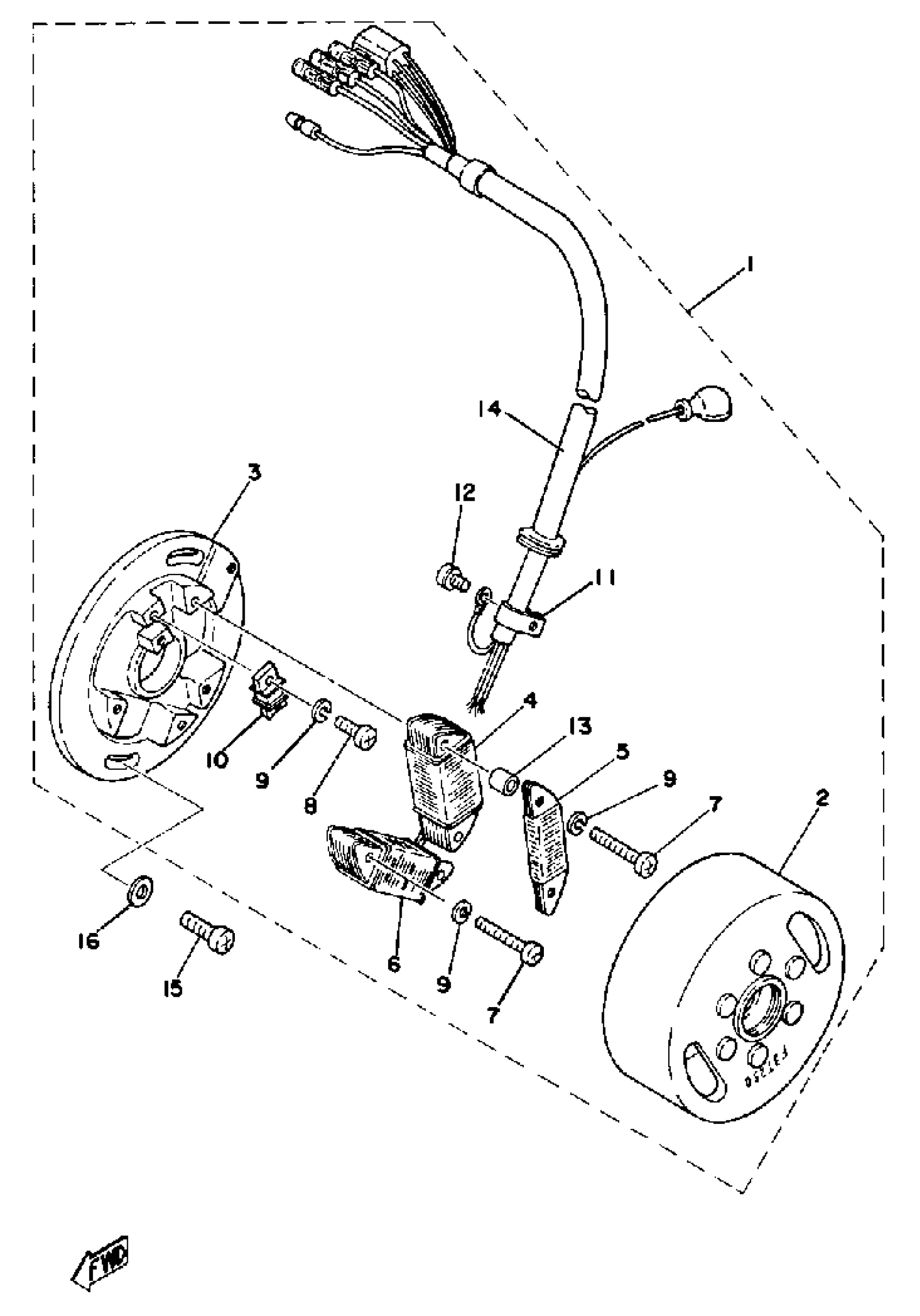

Yamaha DT175F (DT175F) 1979 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(2N5-85500-20-00)

Unavailable

2

ROTOR ASSEMBLY

(2A7-85550-20-00)

Unavailable

3

. BASE, MAGNETO

1W2-85509-20-00

Unavailable

4

. COIL SOURCE 1

2A7-85511-20-00

Unavailable

5

. COIL SOURCE 2

2A7-85512-20-00

Unavailable

6

. COIL, LIGHTING 1

2A7-85513-20-00

Unavailable

7

SCREW, PAN HEAD(MK5)

98507-04035-00

$6.59

8

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

10

. COIL, PULSER

2A7-85580-20-00

Unavailable

11

CLAMP, READ

445-81328-20-00

Unavailable

12

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

13

. SPACER

1W2-85516-20-00

Unavailable

14

LEAD WIRE ASSEMBLY

(2A7-85515-20-00)

Unavailable

15

SCREW, PAN

98507-06014-00

$5.76

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable
