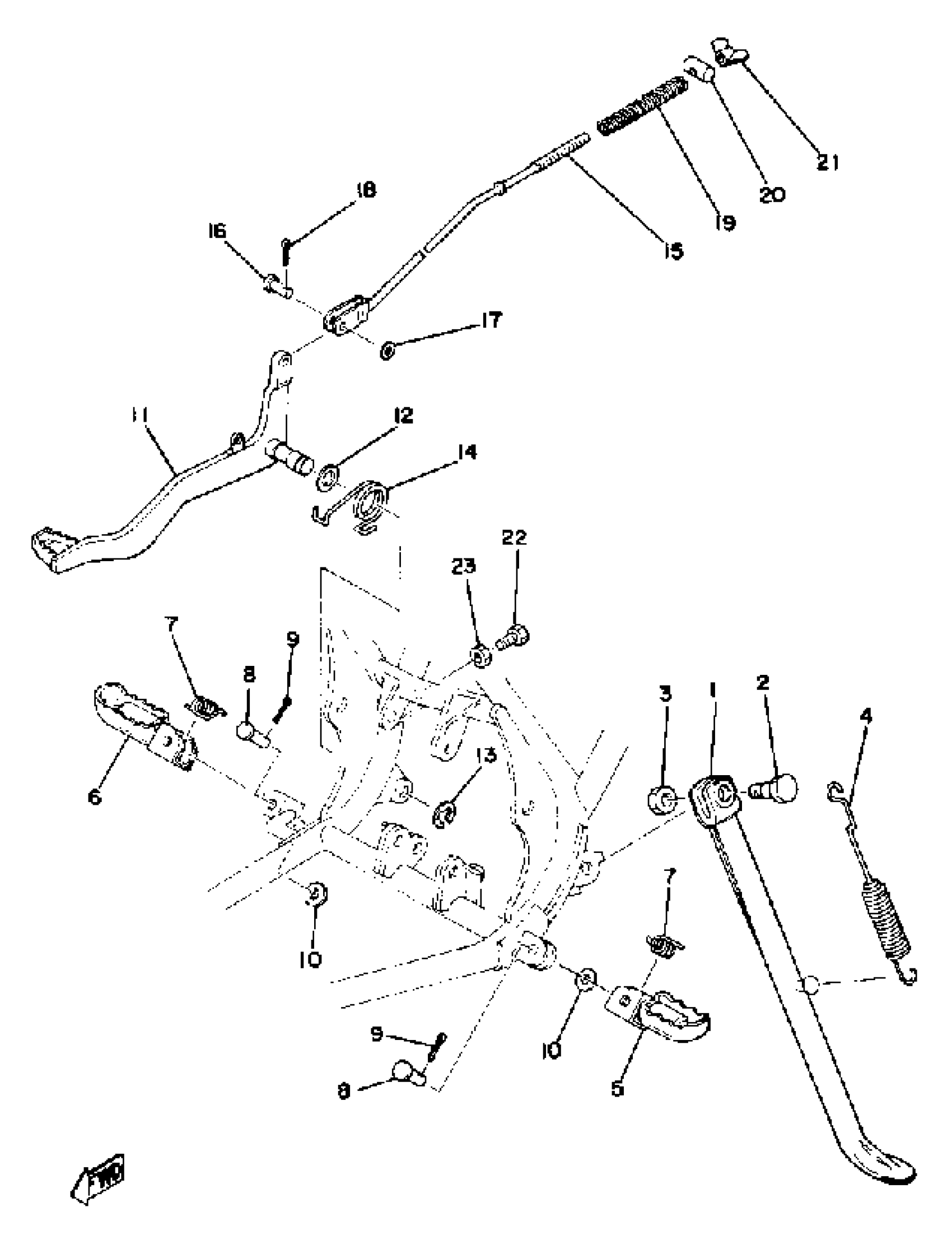

Yamaha DT175E (DT175E) 1978 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

1W1-27311-10-00

Unavailable

2

BOLT

90109-10473-00

$8.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING (434)

90507-29008-00

$28.99

5

FOOTREST 1

22W-27411-01-90

$32.99

6

FOOTREST 2

22W-27421-01-90

$32.99

7

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

8

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

9

PIN, COTTER

91490-25020-00

$3.19

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

PEDAL, BRAKE

2A6-27211-00-00

Unavailable

12

WASHER PLATE 611441260000

90201-14212-00

$8.49

13

CIRCLIP (137)

93430-10015-00

$9.49

14

SPRING, TENSION (2A6)

90508-32354-00

$8.49

15

ROD, BRAKE

322-27231-00-00

Unavailable

16

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

PIN, COTTER

91490-25020-00

$3.19

19

SPRING, (180-27236-00)

90501-10245-00

Unavailable

20

PIN 1562723700

90249-12008-00

Unavailable

21

NUT (25K)

90179-06411-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

NUT(650)

95380-06700-00

Unavailable
