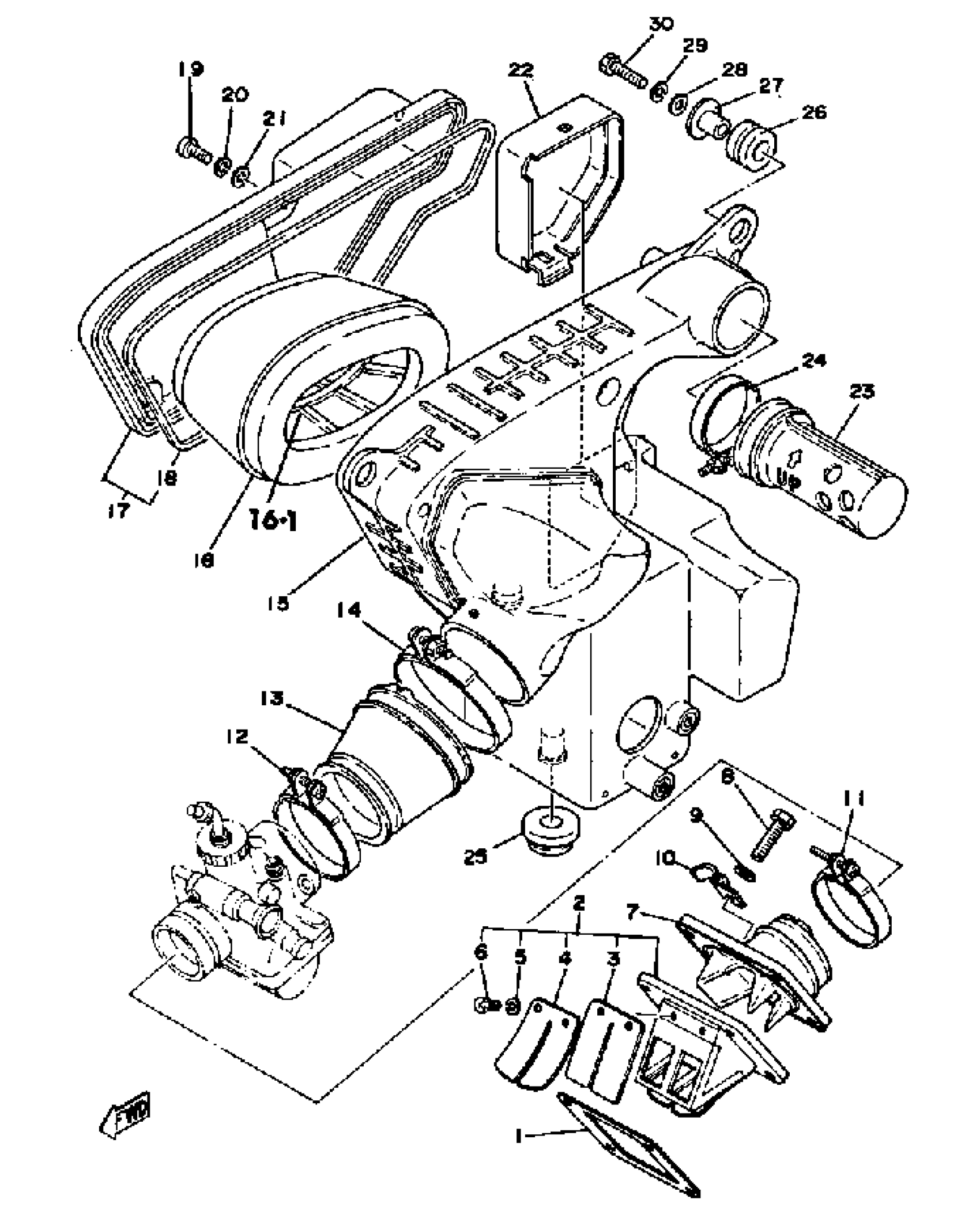

Yamaha DT175E (DT175E) 1978 INTAKE Diagram
#
Description
Price
4
. STOPPER, REED VALVE
345-13616-70-00
Unavailable
7
JOINT, CARBURETOR
401-13565-01-00
Unavailable
10
CLAMP 363154850100
90462-05005-00
Unavailable
13
JOINT, AIR CLEANER 1
2A7-14453-00-00
Unavailable
15
CASE, AIR CLEANER 1
2A6-14411-01-00
Unavailable
16
ELEMENT, AIR CLEANER
2A6-14451-01-00
Unavailable
17
CAP, CLEANER CASE 1
2A6-14412-00-00
Unavailable
18
SEAL
51Y-14462-00-00
Unavailable
19
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
20
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
21
WASHER, PLAIN (646)
92990-05600-00
Unavailable
22
COVER 1
2A6-14417-00-00
Unavailable
23
PIPE, SUCTION 2
(2A6-14433-00-00)
Unavailable
24
HOSE CLAMP ASSY(10F)
90450-45075-00
Unavailable
25
GROMMET (509)
90480-18171-00
Unavailable
26
GROMMET 839774310000
90480-14023-00
Unavailable
27
COLLAR 437216330000
90387-07391-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
